32

Y Pb Pr

Y

Pb

Pr

To connect the LCD TV/DVD to a VCR with an S-Video cord

If you connect a VCR with a S-Video cable to the S-VIDEO IN jack on the rear side of the unit, you must also connect the audio cables to

the AUDIO IN jacks on the rear side of the unit.

The S-Video cable only carries the video signal. The audio signal is separate.
NOTE:

When the S-Video cable and the standard video cable are connected at the same time, the S-Video cable takes precedence.

The exact arrangement you use to interconnect various video and audio components to this unit is dependent on the model and features

of each component. Check the Owner’s Manual provided with each component for the location of video and audio inputs and outputs.

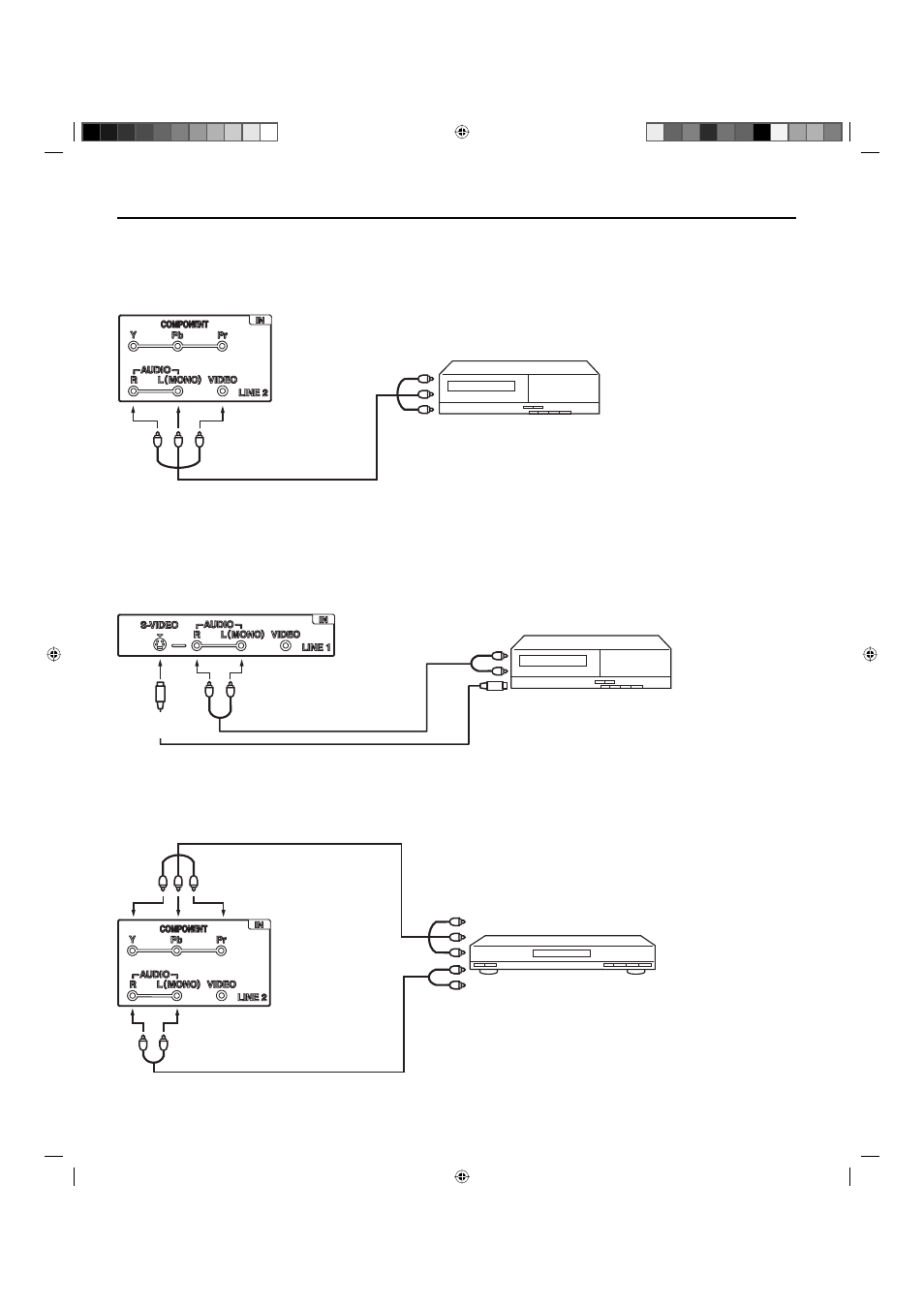

To connect the LCD TV/DVD to a VCR

Connections to other equipment

To connect to a DVD player with Component Video Input

You can enjoy a high quality picture by connecting the unit’s COMPONENT VIDEO OUT jacks of your DVD player with the

COMPONENT video cables (not supplied).

Rear of the unit

To Video/Audio OUT

Video/Audio cord (not supplied)

To LINE 2 VIDEO/

AUDIO IN

To S-Video OUT

To Audio OUT

Audio cord (not supplied)

S-Video cord (not supplied)

To LINE 1 AUDIO IN

Rear of the unit

To Component OUT

Audio cord (not supplied)

Component video cord (not supplied)

To LINE 2 AUDIO IN

Rear of the unit

To COMPONENT IN

To Audio OUT

NOTE:

Component Video input of the unit are for use with a device which output 480i/1080i interlaced signals and 480p/720p progressive

signals.

VCR

VCR

DVD

To LINE 1

S-VIDEO IN
