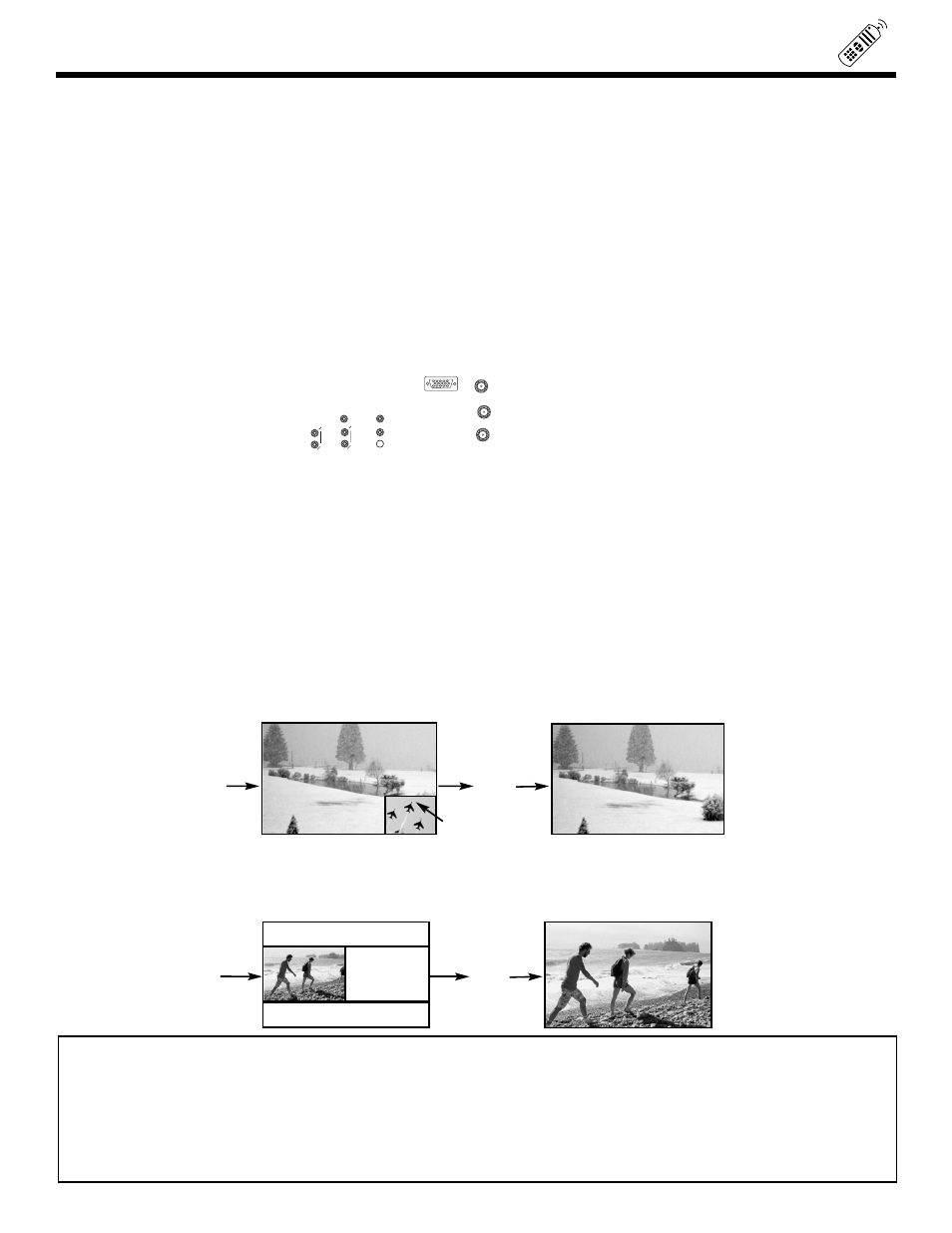

PICTURE-IN-PICTURE (PIP)
NOTES: 1. Y-PBPR input cannot be viewed as main picture or sub-picture when in SINGLE PIP MODE. If you tune to a Y-PBPR
input, the TV set will automatically change to SPLIT PIP MODE.
2. When ANT B is selected as the main channel, the SWAP feature is disabled.
3. COMPONENT: Y-PBPR input can be viewed as main or sub-picture, only when SPLIT PIP MODE is chosen.
4. Only sound from the main picture can be heard.
5. It will take more than 3 seconds for the CPU to synchronize the motor frequency with input signal frequency when
you change the input mode (Video: 1, Video: 2 and so on). Press the TV/PC button to switch between TV, PC1 (PC
INPUT1) and PC2 (PC INPUT 2) modes.
Main Picture
Sub Picture
ANT A 10
ANT A
TO
CONVERTER
ANT B
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
AUDIO
L
R
(MONO)
VIDEO VIDEO
AUDIO
(MONO) L
R
