SOHO24B

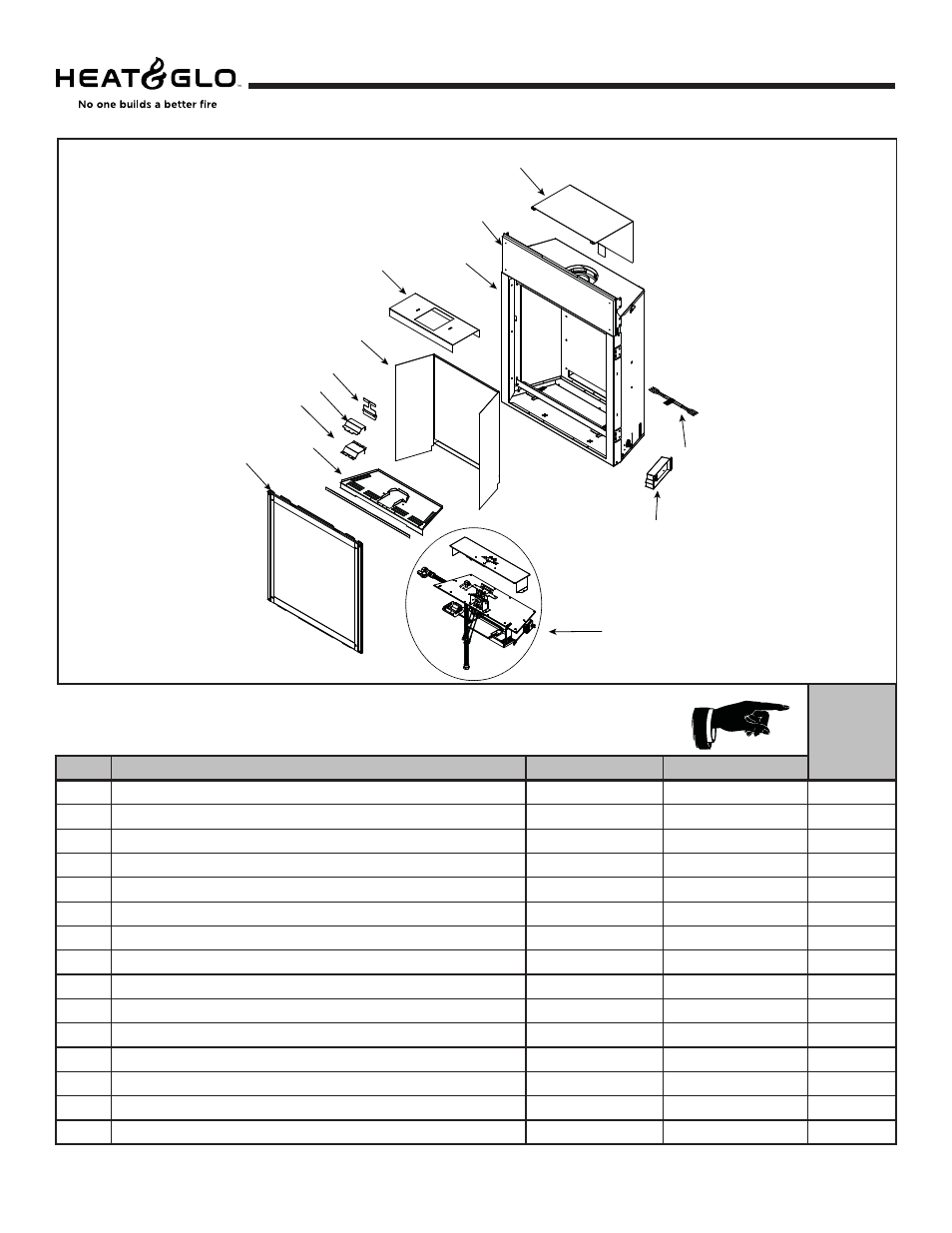

C. Service Parts
Beginning Manufacturing Date: Aug. 2007
Ending Manufacturing Date: ______
24 x 24 Direct Vent Fireplace
IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement
parts for your appliance please provide model number and serial number. All parts listed
in this manual may be ordered from an authorized dealer.
Stocked
at Depot
ITEM DESCRIPTION COMMENTS PART NUMBER
1 Heat Shield 2137-138
2 Non-combustible Board (Outside) 2111-148
Bracket Non-combustible Board 2111-128
Non-combustible Board (Inside) 2077-148
3 Surround 2077-112
4 Heat Shield Retainer 2137-134
5 Refl ective Panel 2137-135
6 Stone Placement Jig 2137-140
7 Pilot Cover (Outer) 2137-137
8 Pilot Cover (Inner) 2137-136
9 Base Pan 2137-129
10 Glass Door Assembly GLA-SOHO24B Y
11 Valve/ Burner Assembly Refer to valve page
12 Junction Box 4021-013 Y
13 Wire, Wall Switch 2045-024 Y
Additional service part numbers appear on following page.
1
2
3
4
5
6
7
8
9
10
13
12
11
