Heat & Glo • Soho24B • 2137-900 Rev. P • 8/12
36

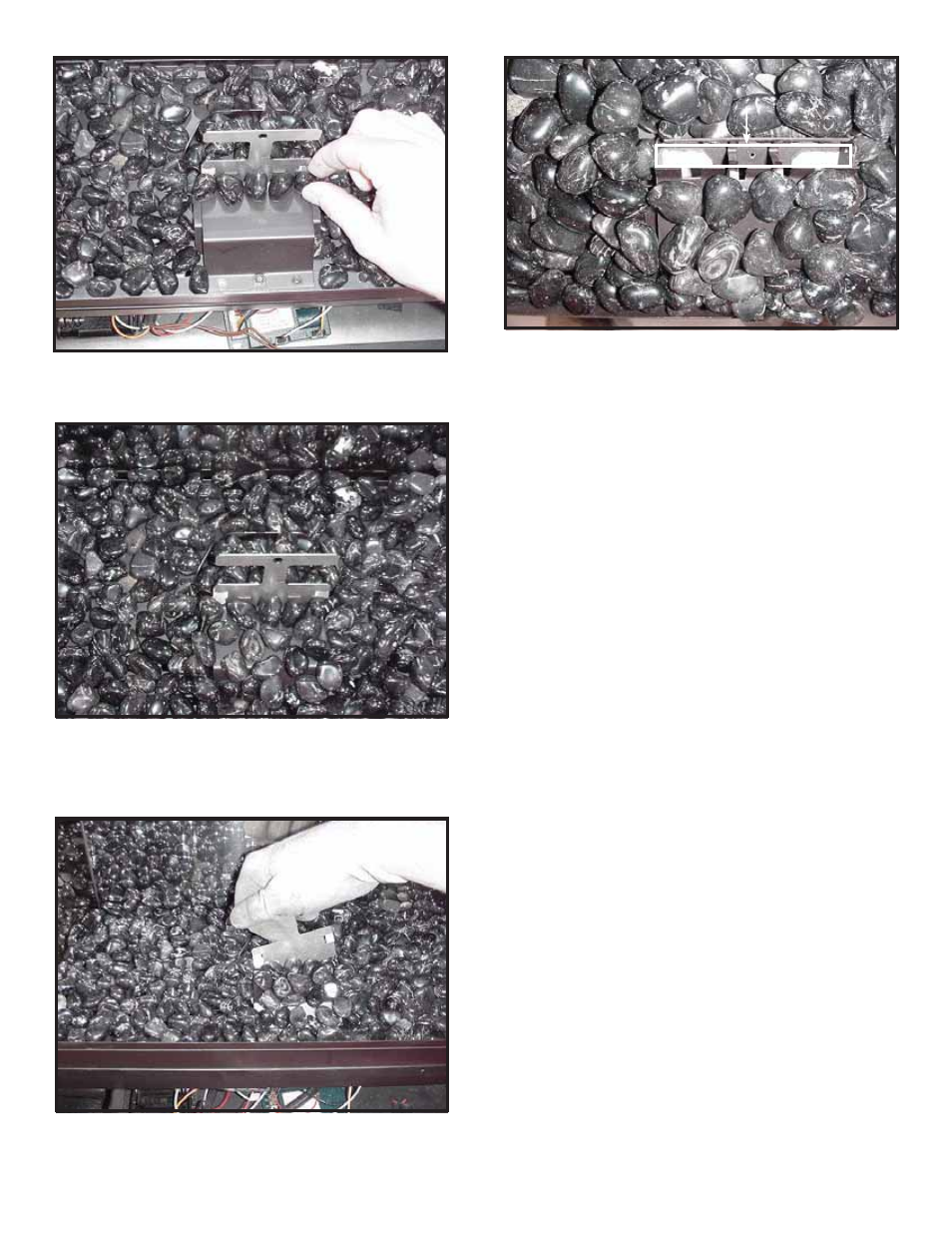

Step 6. Spread the stones out evenly. Double check that
there is only one layer of stones on the burner area and that
the cross-hatched area in Figure 1 is still free of stones.
Step 8. This is a view of the front area of the pilot shield.
This area must be free of stones for safe operation.
Figure 12.7.
Step 7. Carefully remove the stone placement jig making
sure that no stones fall into the pilot area.
Figure 12.8.
Figure 12.9.
NO STONES IN THIS AREA NO STONES IN THIS AREA
Step 5. Carefully place a layer of stones over the pilot
shield to disguise it.
Figure 12.6.
