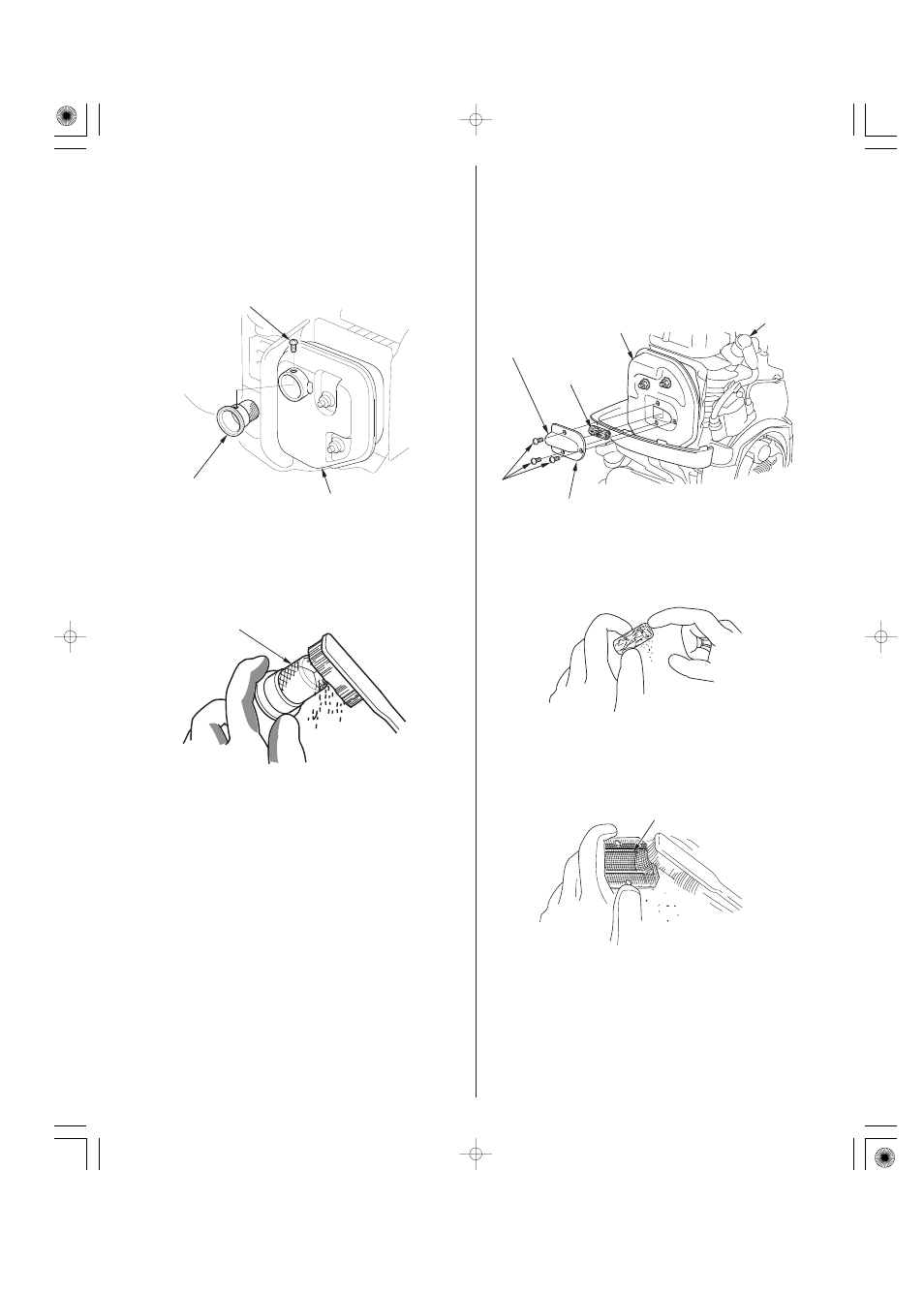

Standard Type:
Tiller type
Spark Arrester Removal
Spark Arrester Removal
Spark Arrester Cleaning & Inspection
Exhaust Filter Cleaning & Inspection
Spark Arrester Cleaning & Inspection
GX35
SPARK ARRESTER SCREEN
SPARK ARRESTER SCREEN
SPARK PLUG
MUFFLER
EXHAUST
FILTER
SPARK ARRESTER
OUTLET
4 6 mm
SELF-TAPPING
SCREWS
SPARK ARRESTER
MUFFLER
SPARK ARRESTER
3 6 mm SELF-TAPPING SCREW
13
Remove the 4 6 mm self-tapping screws from the spark
arrester, and remove the spark arrester and exhaust filter from
the muffler.
Loosen the 5 mm hex bolt, then remove the top cover (see page
).
Loosen the 5 mm hex bolt, then remove the top cover (see page
).
Use a brush to remove carbon deposits from the spark arrester
screen. Be careful to avoid damaging the screen.
The spark arrester must be free of breaks and holes. Replace the
spark arrester if it is damaged.
Install the top cover, and tighten the 5 mm hex bolt securely (see
page
).
Install the spark arrester in the reverse order of disassembly.
Remove the 3 6 mm self-tapping screws from the spark
arrester, and remove the spark arrester from the muffler.
Pinch the exhaust filter, and strike it lightly with a finger, to
remove carbon deposits. Be careful not to strike it too hard.
The exhaust filter must be free of breaks and holes. If it is
damaged or fouled excessively, have it serviced by your Honda
dealer.
Install the top cover, and tighten the 5 mm hex bolt securely (see
page
).
When you install the spark arrester, the spark arrester’s outlet
must point to the side opposite the spark plug.
Install the exhaust filter and spark arrester in the reverse order
of disassembly.
The spark arrester must be free of breaks and holes. Replace the
spark arrester if it is damaged.
Use a brush to remove carbon deposits from the spark arrester
screen. Be careful to avoid damaging the screen. 1.
2.
3.
2.
3.
1.
2.
11
1.
2.
1.
11
11
11
