How to set up your new HITACHI Plasma Television

SETTING FOR WALL MOUNTING ON 42" MODELS

STEP (1)

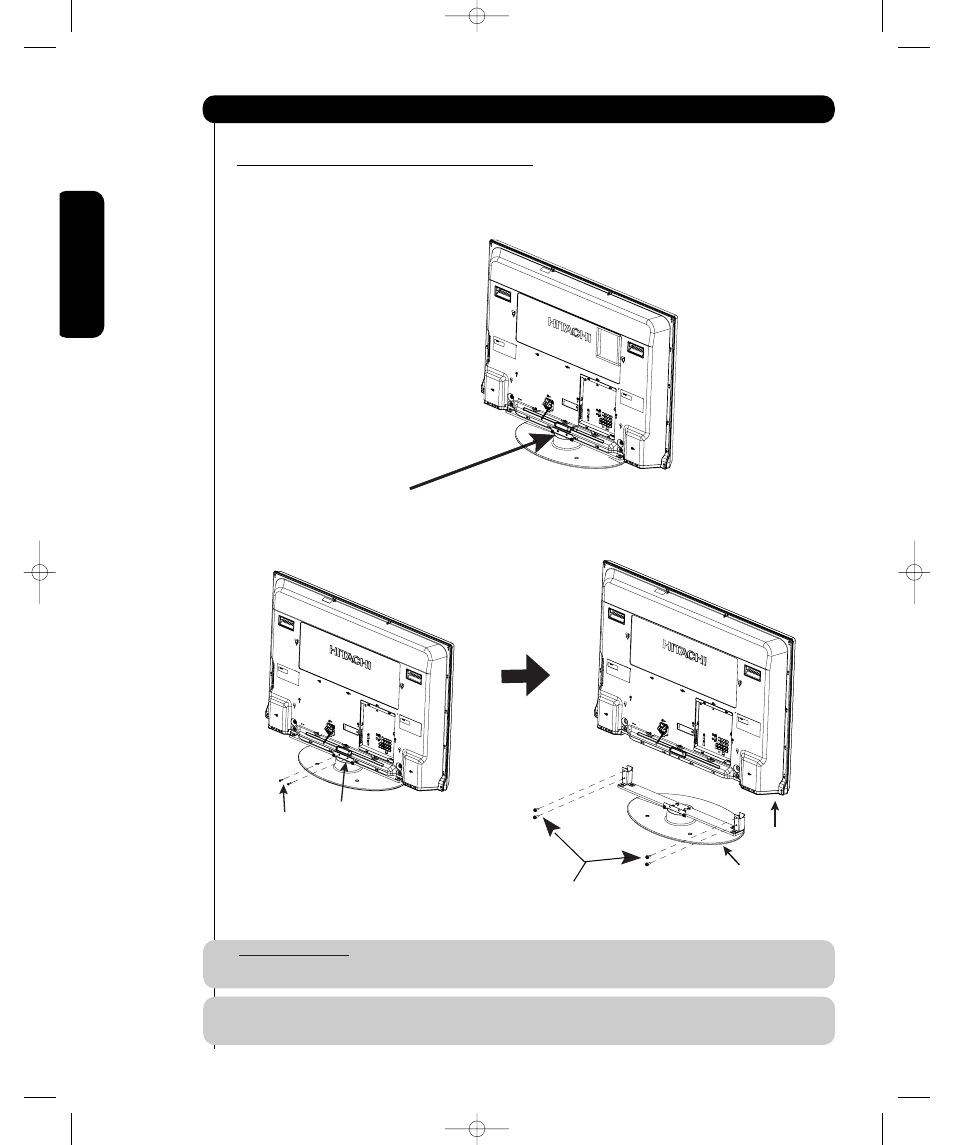

Please locate the STAND METAL on the back of the TV . This metal is use to hold the TV and the Base ; so it needs
to remove 6 screws from the STAND base in order to separate the TV from the Base.

STAND METAL

STEP (2):

Please remove the 2 screws of the STAND metal from the TV, then remove 4 screws that hold the TV STAND BASE;
now the TV STAND can be separated from the TV.For dimensions of the WALL MOUNT assembly please refer to page 59.

STAND METAL

2 SCREWS

TV STAND BASE

Remove these 4 screws

to separate the TV from

the stand base.

NOTE:

Use the specified WALL MOUNT base for the Plasma TV depending on the size of your TV.
Please access our web site at: www.hitachi.us/tv for recommended accessories for your tv.

Remove these 2 screws

first to separate the TV

from the stand metal.

Then put these 2 screws

back to the TV.

CAUTION- This Plasma Display Panel for use only with Hitachi WM07S Wall Mount. Use with other

Wall Mont is capable of resultiong in instability causing possible injury.

For Model P42H401
