CD PLAYBACK
CD PLAYBACK 31
Many functions of the DVD 37 operate the same way
for CD playback as for DVD play; however, there are
some important differences. When a CD is loaded,
the DVD 37 will automatically display the Player
Information menu. Status banners are not available
during CD play. A greater variety of playback options
are available during play, including programmed
playlists. These and other features unique to CD play
are described in this section.

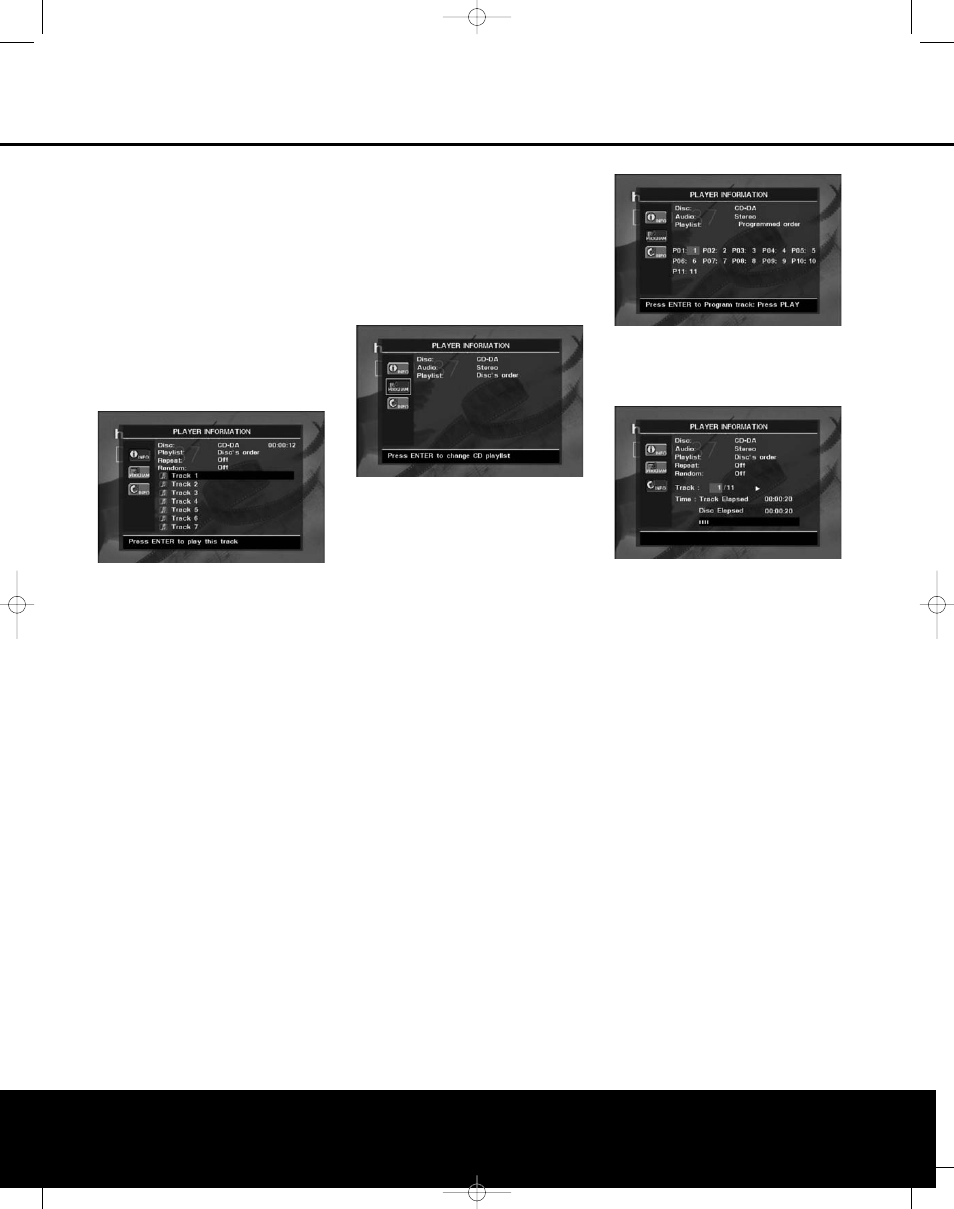

Using the Player Information Menu
The DVD 37’s Player Information menu displays disc
information and enables you to program playback
modes. Press the Info Button i to display the
Player Information menu (Figure 14).
Figure 15
The Player Information menu has three submenus,
which may be easily accessed by using the
⁄¤
Navigation Buttons n to highlight the submenu’s
icon, and pressing the Enter Button u to select it.
These submenus are different from the Setup menus
in that many items are for display only and cannot be
changed using the menu system.
Playback Info Submenu: This submenu
displays basic disc and playback mode information
(see Figure 15).
■ Disc: This line displays the disc type, such as
CD-DA (Compact Disc Digital Audio).
■ Audio: This line displays the type of audio recorded
on the disc, usually Stereo.
■ Playlist: You may choose to play the tracks in
order as they appear on the disc, or you may pro-
gram a playlist containing some or all of the tracks
in the order in which you wish to hear them. This
line indicates which of these two modes has been
selected. In order to change this setting, you will
need to access the
PROGRAM submenu as
described below.
■ Repeat: With this line highlighted, press the
Enter Button u or the Repeat Button
5 to
activate Repeat mode. Each press will change the
repeat mode from Repeat 1 (to repeat one track)
to Repeat All (to repeat all tracks on the disc) to
Repeat Off.
■ Random: With this line highlighted, press the
Enter Button u or the Random Button
7
to activate Random mode. Each press will toggle
between turning the Random play on or off.
■ Track List: A list of tracks on the disc will appear.
Use the
⁄¤ Navigation Buttons D to scroll
through the list. Press the Enter Button u or
the Play Button
N while a track is highlighted,
to begin play.
Figure 16
Program Submenu: This submenu lets you
program a playlist. The
PROGRAM submenu is
only accessible for CDs (see Figure 16).
■ Disc: This line displays the disc type.
■ Audio: This line displays the type of audio that
was recorded on the disc, usually Stereo.
■ Playlist: With this line highlighted, press the Enter
Button u to change the order in which the
tracks are played from the order in which they
appear on the disc (
Disc’s order)
to a playlist order which you may program
(
Programmed order). If you select
Programmed order, a list of pro-
gram steps and the track programmed for each
step will appear at the bottom of the screen. You
may enter a track number using the Numeric
Keys
T and then press the ¤ Navigation
Button D to program another track. Use the
⁄¤ ‹› Navigation Buttons D to select the
desired program steps. Note that you may not
enter a track more than once in the playlist, if it
appears in an earlier step. However, you may use
the Repeat function while the playlist is playing.
After you have finished programming the playlist,
press the Play Button 3
N to begin play. See
page 36 for more information.
Figure 17
Disc Information Submenu: This
screen displays abbreviated track and playback infor-
mation, plus more detailed timing information.
Figure 18
The information at the top of the screen provides
the same information on the disc type, audio format,
playlist setting, Repeat play setting and Random
play setting as on the
Playback Info
submenu. The following additional information
appears next.
■ Track: This line displays the current track on the
left, and the total number of tracks on the disc to
the right. When the current track number is high-
lighted, you may use the Numeric Keys
T to
skip to a new track. The new track will begin play-
ing immediately, without your having to press any
other buttons.
■ Play Mode Icon: This icon will appear to the right
of the Track display and will indicate the current
playback mode.
■ Time: This section consists of three lines:
• Track Elapsed: Displays the elapsed or remain-
ing time of the current track.
• Disc Elapsed: Displays the elapsed or remain-
ing time of the disc.
• Elapsed Time Bar: Displays in graphical form a
temperature bar reflecting the percentage of the
disc that has been played.
Use the ⁄¤ Navigation Buttons n to highlight
either Track Elapsed or Disc Elapsed, and each press
of the Enter Button u will toggle between the
elapsed and remaining settings. The time displayed to
