Options

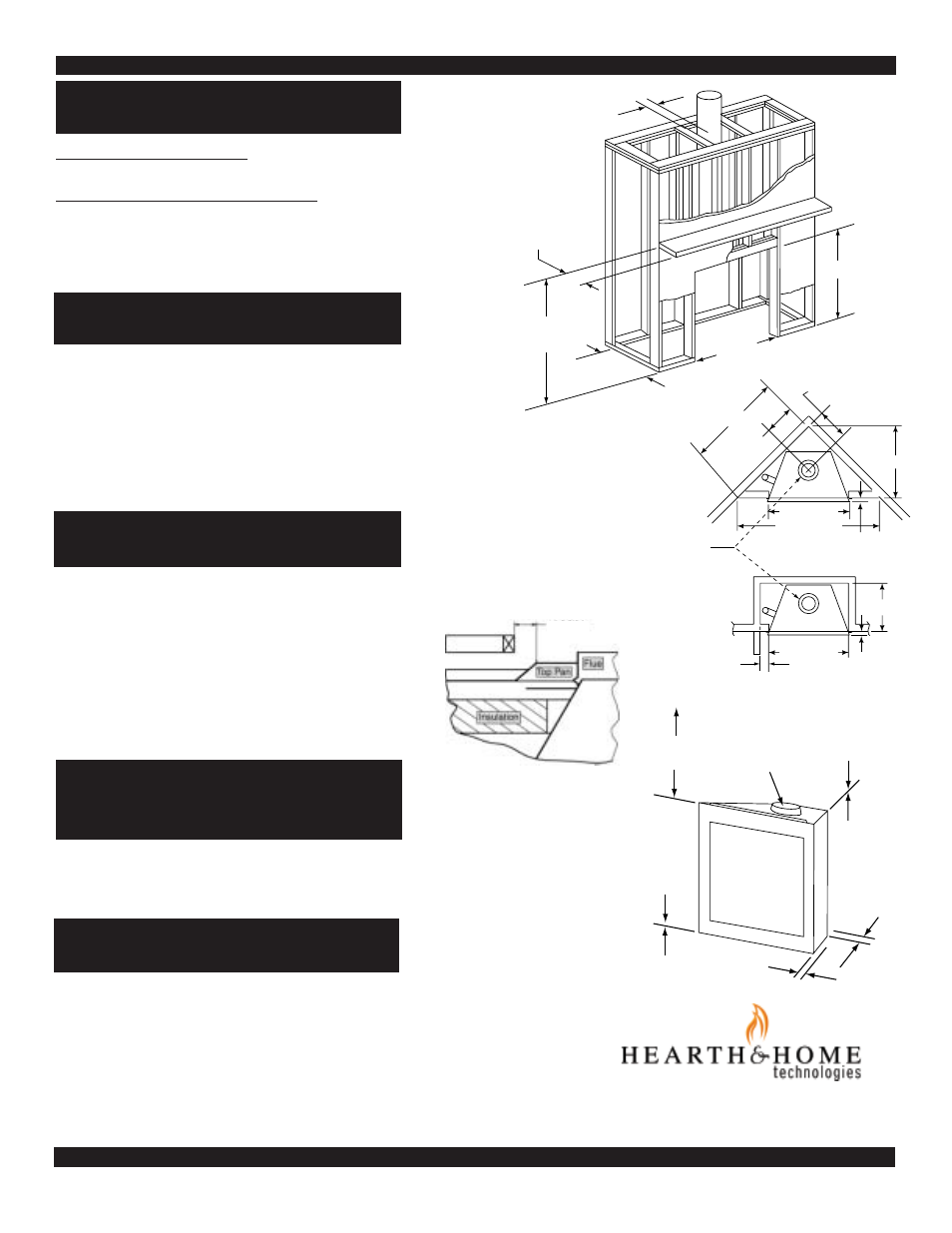

Rough Framing Dimensions
Width - 39 5/
8
”; Height - 33 5/
8
”; Cavity Depth - 19 1/
4
”
Clearances to Surround/Combustibles
Minimum mantle height - 40” above the base of the
fireplace.
Minimum clearances: Top - 0”; Floor - 0”; Back and
sides of fireplace - 1”
When finishing the BCBV36 Series, combustible
material may be brought up to the sides of the
fireplace but must never overlap the black area.
The black metal may be covered with noncom-
bustible material only such as marble, tile, stone,
etc. You cannot cover the slots below the firebox
opening, as this may cause a fire hazard.
UL Listed for assurance of safety and quality.
Limited Lifetime Warranty.
Approved for use in bedrooms with at least
1,150 cubic foot volume.
This appliance requires a 5” B-vent venting
system for operation. Never downsize pipe. See
B-vent manufacturer’s instructions for installation.
Safety Standards
Finishing Materials
Venting
Specifications
Framing Dimensions
Hearth & Home Technologies
20802 Kensington Boulevard
Lakeville, MN 55044
(952) 985-6000 Fax (952) 985-6001
Email us at: [email protected]
Visit our web site at
www.hearthnhome.com
or fireplaces.com
BCRK36 Brick Kit $ 78
DM1036 Black Bi-Fold Door $260
DM1036B PB Bi-Fold Door $260
DM1036S SS Bi-Fold Door $260
AK-TV Outside Air Kit $ 40
DKCN NG Conversion Kit $ 52
DKCP LP Conversion Kit $ 52
RC-Smart Remote Control $165
Smart-Stat Remote Control $ 199
30"
to ceiling
0"
to floor
1" to side
of appliance
1" to back
of appliance
0" to level of
hemmed top
Note: Do not
block opening
on top of
appliance
Minimum clearances
are per vent
manufacturer's
specifications.
0 - 12"
mantel
projection
40"
min.
39-5/8"
33-5/8"
19-1/4"
62-1/4"
31"
44"
39-5/8"
39-5/8"
13-7/8"
19-1/8"
1/2"
1/2"
1 in. miminum
to sidewall
All framing material shall
be no closer than 1"
from the top edge of the
extruded rim (see inset).
13-7/8"
INSET
1" min.
4020-058 CG 6/04
