The strongest in the industry, Quadra-Fire provides a
limited lifetime warranty on gas-burning products for
their most important aspects: firebox and heat exchanger.
For full warranty details go to www.quadrafire.com
Quadra-Fire is a registered trademark of Hearth & Home Technologies. Product specifications and
pricing subject to change without notice. The Quadra-Fire Topaz direct vent gas appliance listed to
ANSI standard Z21.88a-2000/CSA 2.33a-M00 Vented Gas Fireplace Heaters and applicable sections
of UL307b Gas Burning Heating Appliances for Manufactured Homes and Recreational Vehicles,
CAN/CBA 2.17-M91 “Gas Fired Appliances for Use at High Altitude," by OMNI-Test Laboratories, Inc.,
Beaverton, OR.
QDF-1007U-1108
IMPORTANT - READ BEFORE YOU INSTALL!
Refer to the Owner/Installation Manual for complete clearance requirements and specifications.
The images and descriptions in this brochure are provided to assist you in product selection only.
*Heating capacity rating and Btus are to be used as a guideline only. Actual performance may differ
slightly due to climate, building construction and condition, amount and quality of insulation,
location of the heater, and air movement in the room.
Available From:
Standard Features
Options
Dimensions
Clearances
Technical & Performance Data
TOPAZ
1445 North Highway, Colville, WA 99114
www.quadrafire.com • 800-926-4356
27-3/8"
8-3/8"
22-1/2"
18"
22-1/2"
29-1/2"
3-1/8"
27-3/8"
7"
27-3/4"
23-1/8"
A Side of stove top to side wall ...............6-1/2"
B Rear of stove top to back wall .................... 6"
C Corner of stove top to side wall ................. 1"
D Minimum alcove height .......................... 54"
E Maximum alcove depth .......................... 36"
F Minimum alcove width ........................... 40"
G Mantle clearance from stove top ............. 23"
Width .......................27-3/8"
Height ......................29-1/2"
Depth .......................22-1/2"
Weight (quartet front) .... 275 lbs.
Flue Size .....................6-5/8"
Standing Pilot Ignition .....Yes
Mobile Home Approved ..Yes
Bedroom Approved .........Yes
Heating Capacity* ...................................................up to 2,000 sq. ft.
Btu/Hour Input NG* ................................... 26,500 – 39,500 Top Vent
Btu/Hour Input LP* ..................................... 30,500 – 38,000 Top Vent
Efficiency** ......................................................................... up to 85%
Convection Blower ................................................................. 160 cfm
Our largest cast iron gas burning stove, the Topaz represents a
stylish alternative in warming your home. The Topaz is more
than just a heating device — it’s a piece of art. You have a choice
of color and two different fronts. Optional warming shelves with
beautiful accent brackets can add to the individuality of your
stove. The Topaz is a wonderful way to heat your home and add
an artistic touch to any room in your home.
A number of options are available to suit your personal tastes.
The unique Quartet front looks great with the doors opened or
closed; or choose the cleaner open style of the Solitaire front
(matte black only). Select from clasic black, porcelain mahogany,
or baked enamel sienna bronze or willow to accentuate your
décor. Add warming shelves for extra charm and functionality, a
blower for improved heat circulation, and even a remote control
with a thermostat for convenience. And, with both top and rear
direct-venting options, you can install your new Topaz almost
anywhere.
E
A
B
C
D
F
A
C
G
Porcelain mahogany finish •
Baked enamel sienna bronze & •
willow finish
Solitaire or Quartet fronts
•
(Solitaire in matte black only)
Decorative firescreen
•
(Quartet only)
Gold trim (Solitaire only)
•
Warming shelves •
Variable speed blower •
Rear vent conversion kit •
Wall thermostat •
Thermostatic remote controls •
Strength & beauty of cast iron •
Matte black finish •
Top vent (optional rear vent) •
Natural convection heater •
Heats without power •
Bedroom/mobile home approved •
Limited Lifetime Warranty •

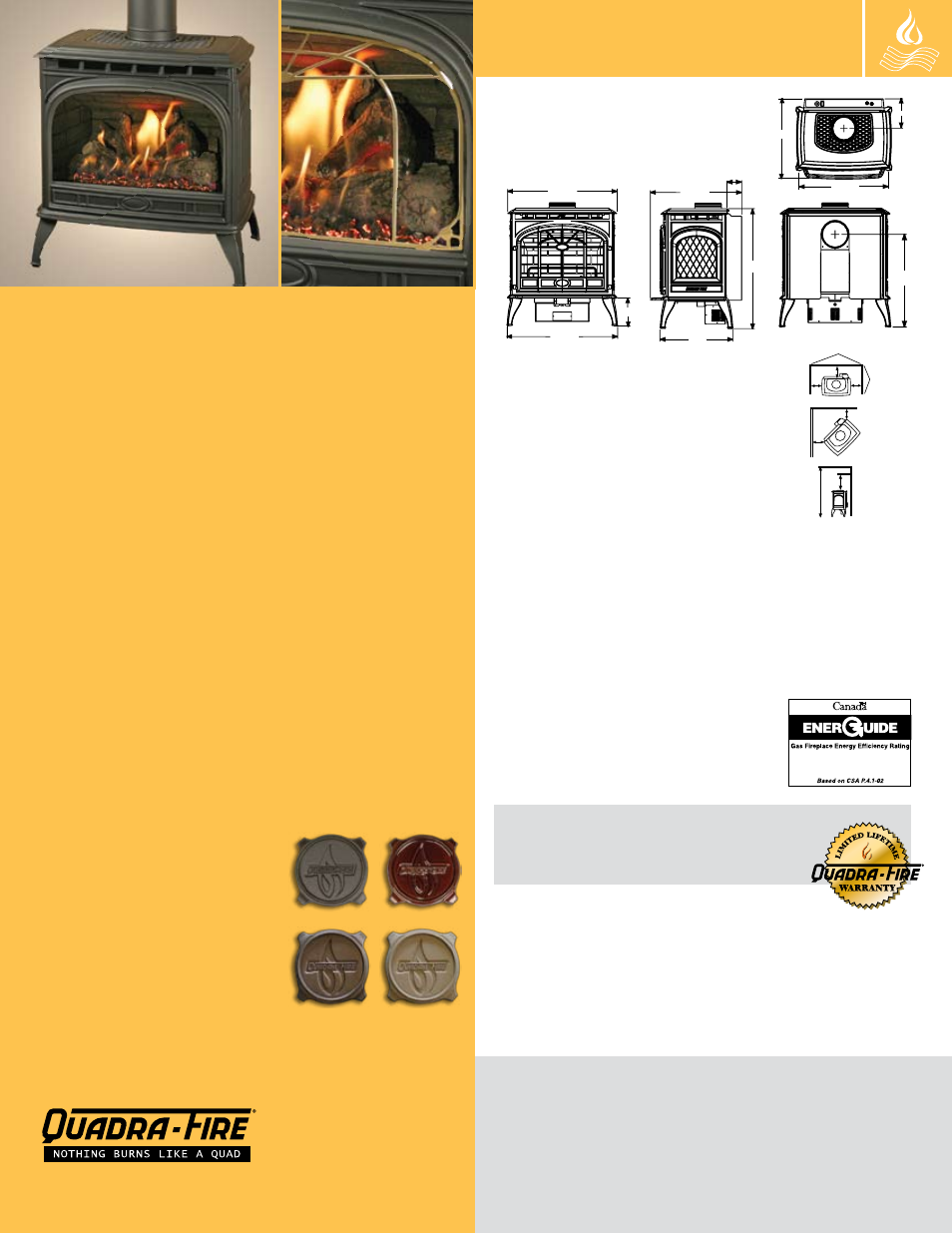

Shown in matte black with Solitaire front Gold door trim for Solitaire front
Black
Sienna bronze
Mahogany
Willow
63% NG / 64% LP
**
**
