Front and Rear Panels
4
Signature 2.1
¡ Speaker Outputs: Connections from these terminals
should be made to the appropriate speakers in your
system.
™ Audio Inputs: Connect the outputs of the
Signature 2.0, or other surround processor, preamplifier
or decoder to these jacks.
£ AC Power Cord: Connect this plug to a wall-
mounted AC outlet. Due to the current draw of the
Signature 2.1, it is NOT recommended that the accessory
outlets on the back of the audio/video components be
used to power this product.
¢ Power Amp Trigger In: Connect this jack to the
matching trigger output on a Signature 2.0 or other
compatible device to have the 2.1 automatically turn on
when the device is activated. See page 5 for additional
details.
CHANNEL FIVE (FRONT LEFT)
4 Ω MIN.
SPEAKER
IN
5
AC INPUT
POWER AMP
TRIGGER IN
CHANNEL FOUR (SURROUND LEFT)
4 Ω MIN.
SPEAKER
IN
AC 12OV/60Hz 950W
CHANNEL THREE (FRONT CENTER)
4 Ω MIN.
SPEAKER
IN
3 4 CHANNEL TWO (SURROUND RIGHT)
4 Ω MIN.
SPEAKER
IN
2 CHANNEL ONE (FRONT RIGHT)
SPEAKER
IN
1
4 Ω MIN.
£ ¢ ™ ¡

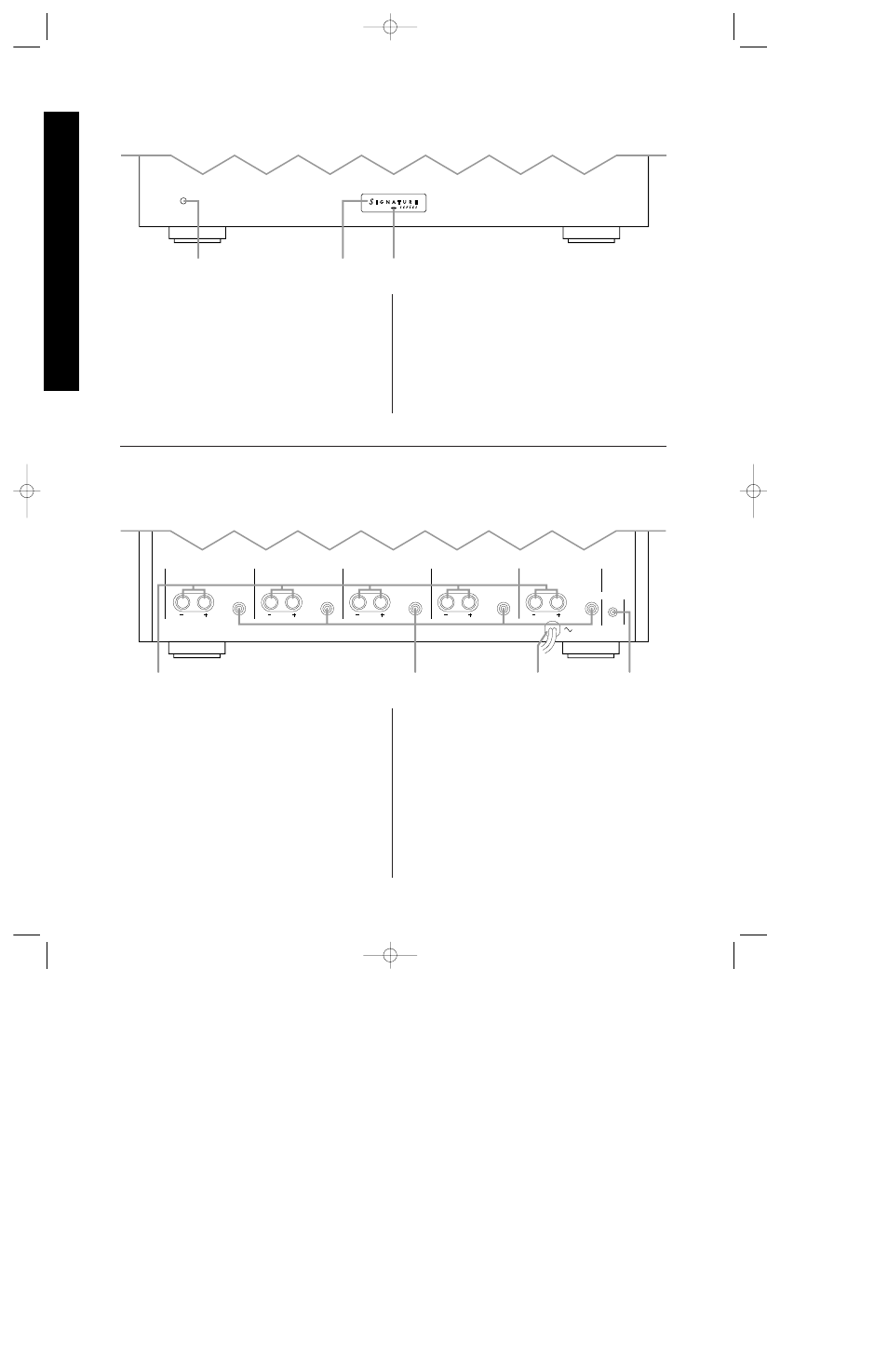

Rear Panel Connections
On/Off
1 2 3
Front Panel Controls
1 Power Switch: Press this switch to turn the 2.1 on
for manual operation, or to place it in the Standby mode
for automatic/remote turn-on when the 2.1 is connected
to a device with a compatible trigger circuit.
2 Power On Indicator: When the word S IGNATURE is
illuminated in blue, the 2.1 is in a normal operating
condition.
3 LED Indicator: The color of this indicator varies
with the status of the 2.1. It is red when the unit is off
and in manual operation, amber in the standby mode,
and flashing green during warm-up. If the indicator
flashes and alternates between red and amber, the 2.1
is in the protect mode, indicating a problem in the unit
or connections to the speakers.
