22 Heat & Glo • VRTIKL-AU • 2123-900 • 7/07
BATTERY PORT
(4 AA BATTERIES)
VALVE
PILOT
IGNITION MODULE
6VDC
ON/OFF
SWITCH
THERMOCOUPLE
BLOCK
(CONNECTED TO
BACK OF VALVE)
PILOT GAS LINE
CONNECTED TO
BACK OF VALVE
IGNITION
MODULE
(6V)
ON/OFF
WALL SWITCH
VALVE
FLAME SPARKER/
SENSOR
ANT.
REMOTE
CONTROL
A. Ignition System Wiring
• This gas stove is equipped with an electronic ignition
system which operates on a 6 volt system.
• The batteries are located within the ignition module
which is located behind the glass door assembly. A wiring
diagram is shown in Figure 7.1.
• The ignition module requires four AA batteries (not
included).

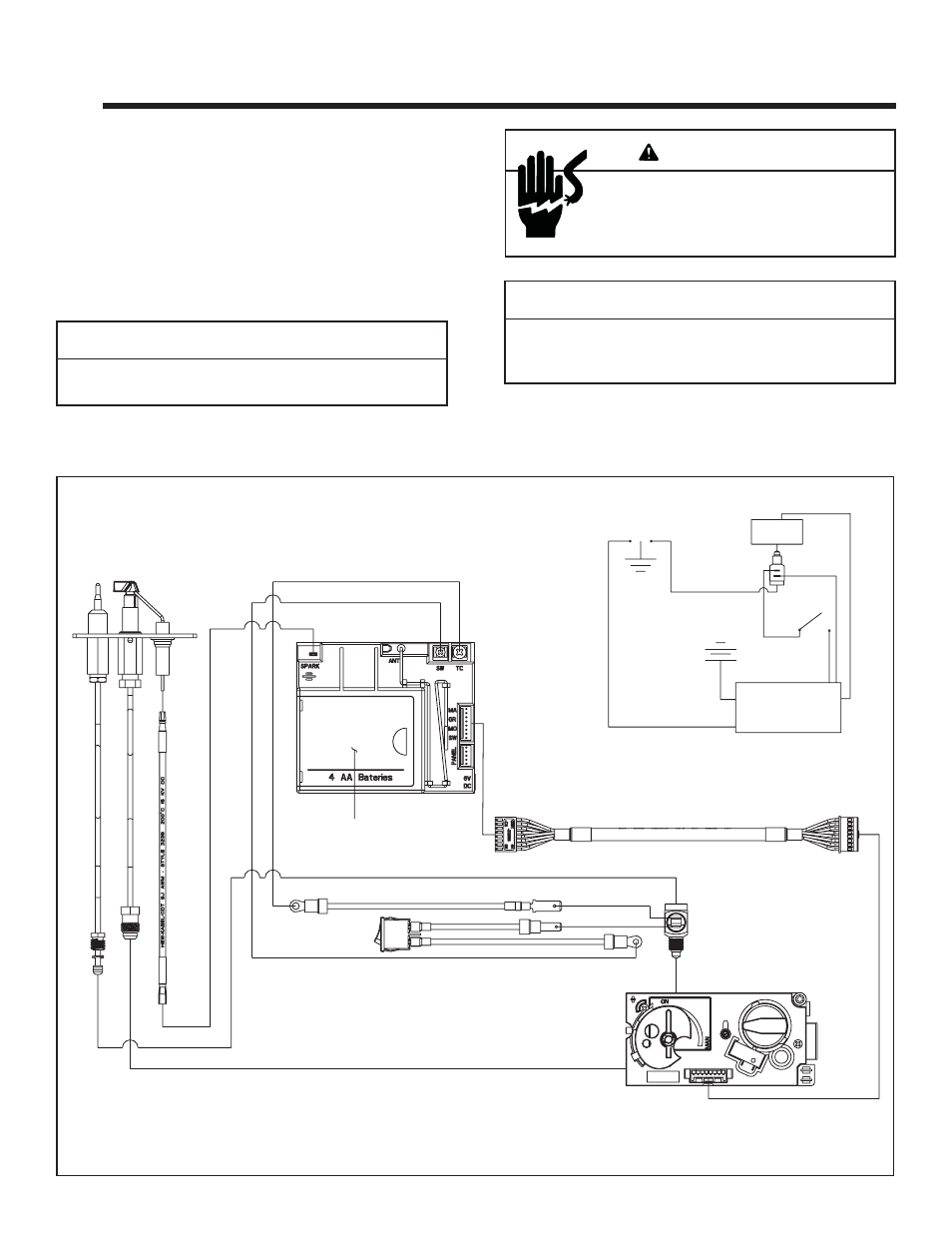

Figure 6.1 Electronic Ignition Wiring Diagram
CAUTION
Battery polarity must be correct or module damage will
occur.
CAUTION
Label all wires prior to disconnection when servicing controls.
Wiring errors can cause improper and dangerous operation.
Verify proper operation after servicing.
Shock hazard.
• Replace damaged wire with type 105º C rated
wire.
• Wire must have high temperature insulation.
WARNING
6 6
Electrical Information
