Servicing your honda snowthrower 30, Adjustment/replacement – HONDA HS520AS User Manual
Page 32
SERVICING YOUR HONDA SNOWTHROWER
30
A replacement scraper bar may be
purchased from a servicing Honda
snowthrower dealer. See page49
for a part number list.

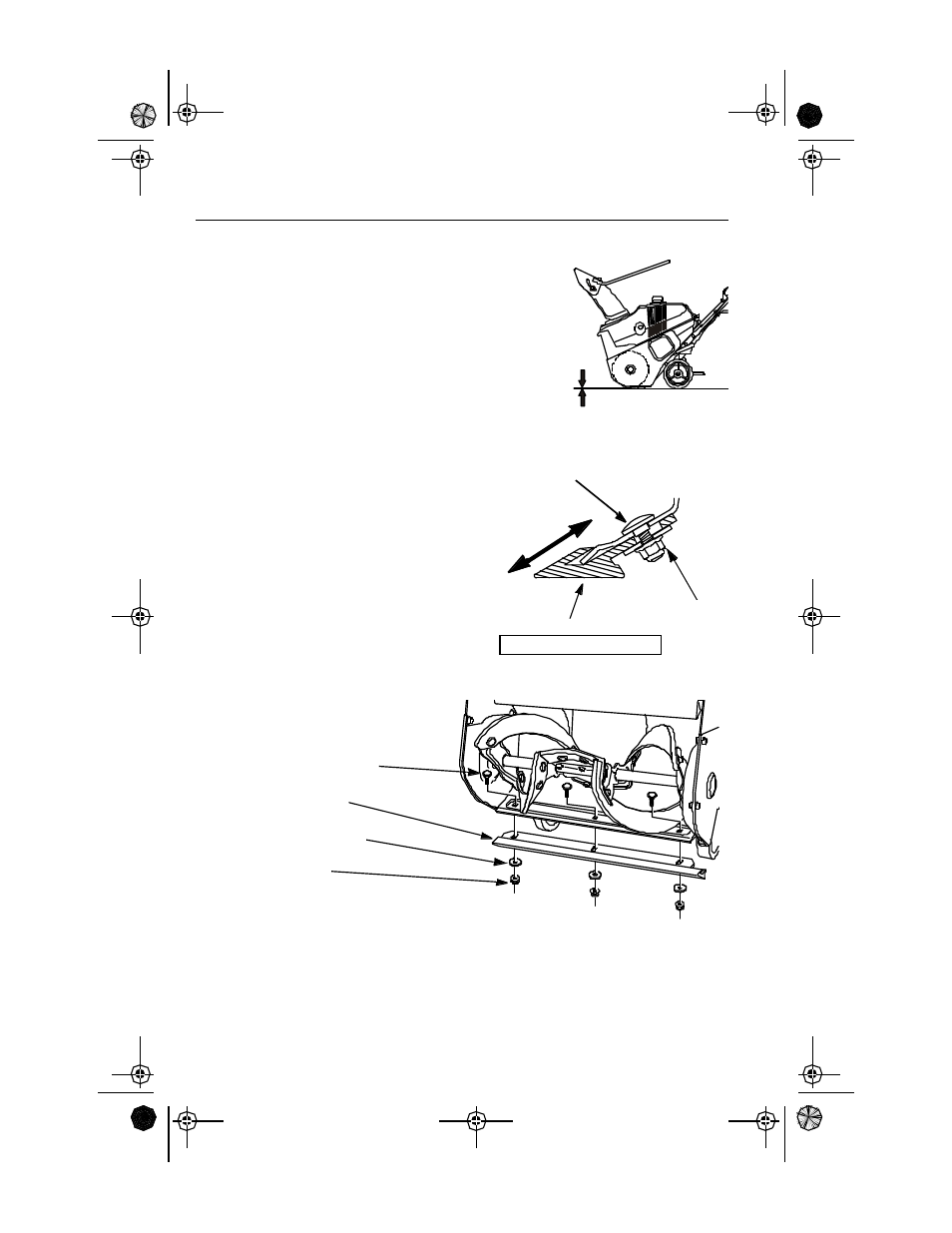

4. Measure the distance between the
ground and lowest point on the
rubber paddle on the auger.
PADDLE GROUND CLEARANCE: 1/16 ~ 1/8 inch (1 ~ 3 mm)
Adjustment/Replacement
1. Loosen (don’t remove) the three
hex nuts on the scraper bar.
2. Move the scraper bar down
slightly. Tighten the self-locking
nuts and recheck the clearance.
Repeat the procedure as needed
to get the necessary clearance. If
you can’t get the spacing within
specification, replace the scraper
bar.
A new scraper bar may be purchased from a servicing Honda
snowblower dealer. See page49 for scraper bar and hardware part
numbers.
1/16 ~ 1/8 inch
(1 ~ 3mm)
SCRAPER BAR
HEX NUT (3)
CARRIAGE BOLT (3)
Adjust position as required.
CARRIAGE BOLT (3)
SCRAPER BAR
HEX NUT (3)
FLAT WASHER (3)
SCRAPER BAR
HS520.book Page 30 Monday, May 14, 2001 12:36 PM
