SERVICING YOUR HONDA SNOWTHROWER
27
AUGER
Clutch Lever
Inspection

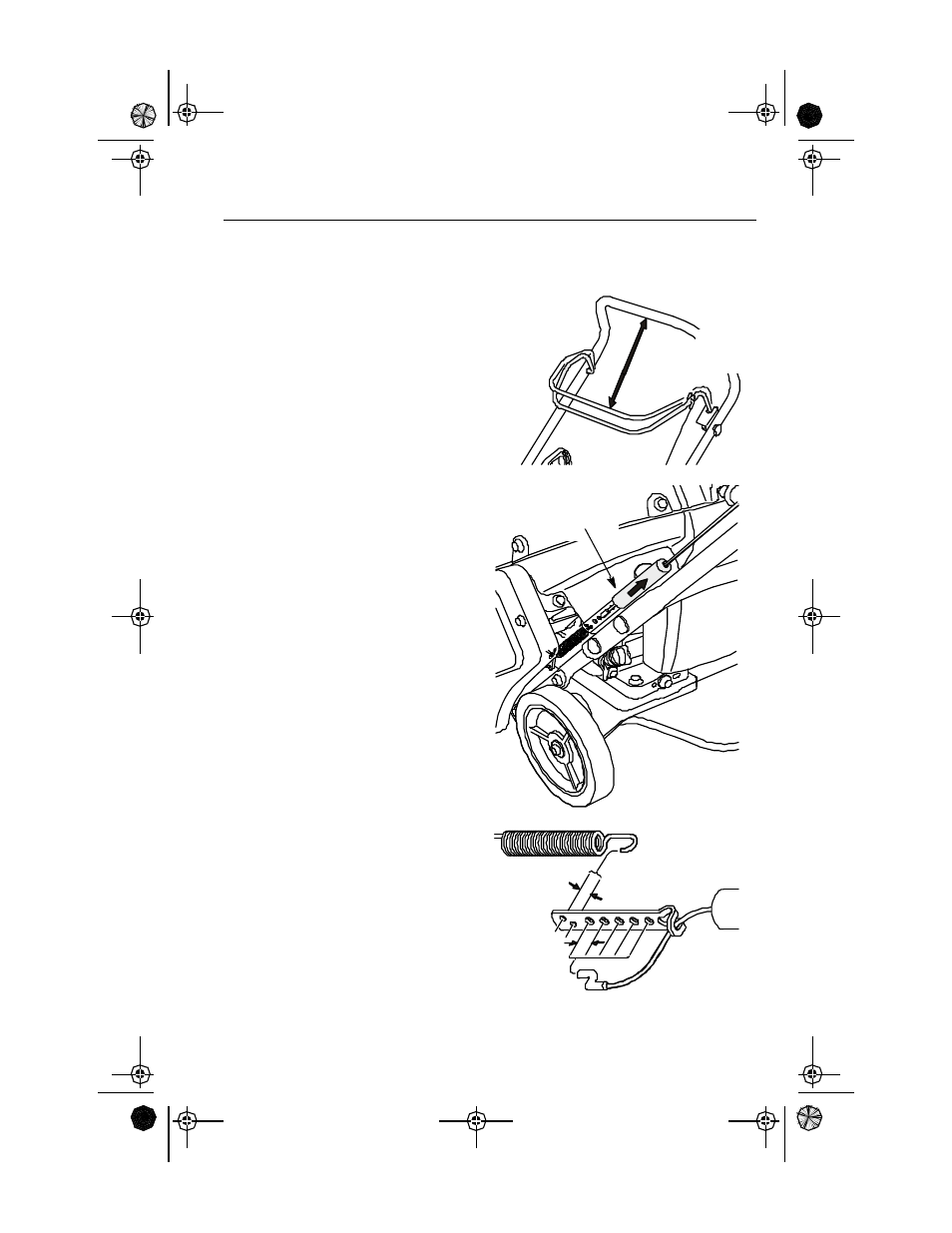

1. Move the clutch lever until
you feel resistance from the
cable. Measure the distance
as shown.
CLUTCH LEVER
DISTANCE:
7-1/2 ~ 8 inches
(190 ~ 205 mm)
Adjustment
1. Pull the spring cover up to
expose the tension spring.
Change the position of either
the cable or spring on the
metal plate so the clutch lever
distance is correct.
Moving the spring makes a
1/4 inch (10 mm) change,
while moving the cable
makes a 1/8 inch (6 mm)
change.
2. Slide the cover back over the
spring.
1/4 inch (10 mm)
1/8 inch
(6 mm)
SPRING
COVER
7-1/2 ~ 8 inches
(190 ~ 205 mm)
HS520.book Page 27 Monday, May 14, 2001 12:36 PM
