Page 15 For technical questions, please call 1-800-444-3353. SKU 98194

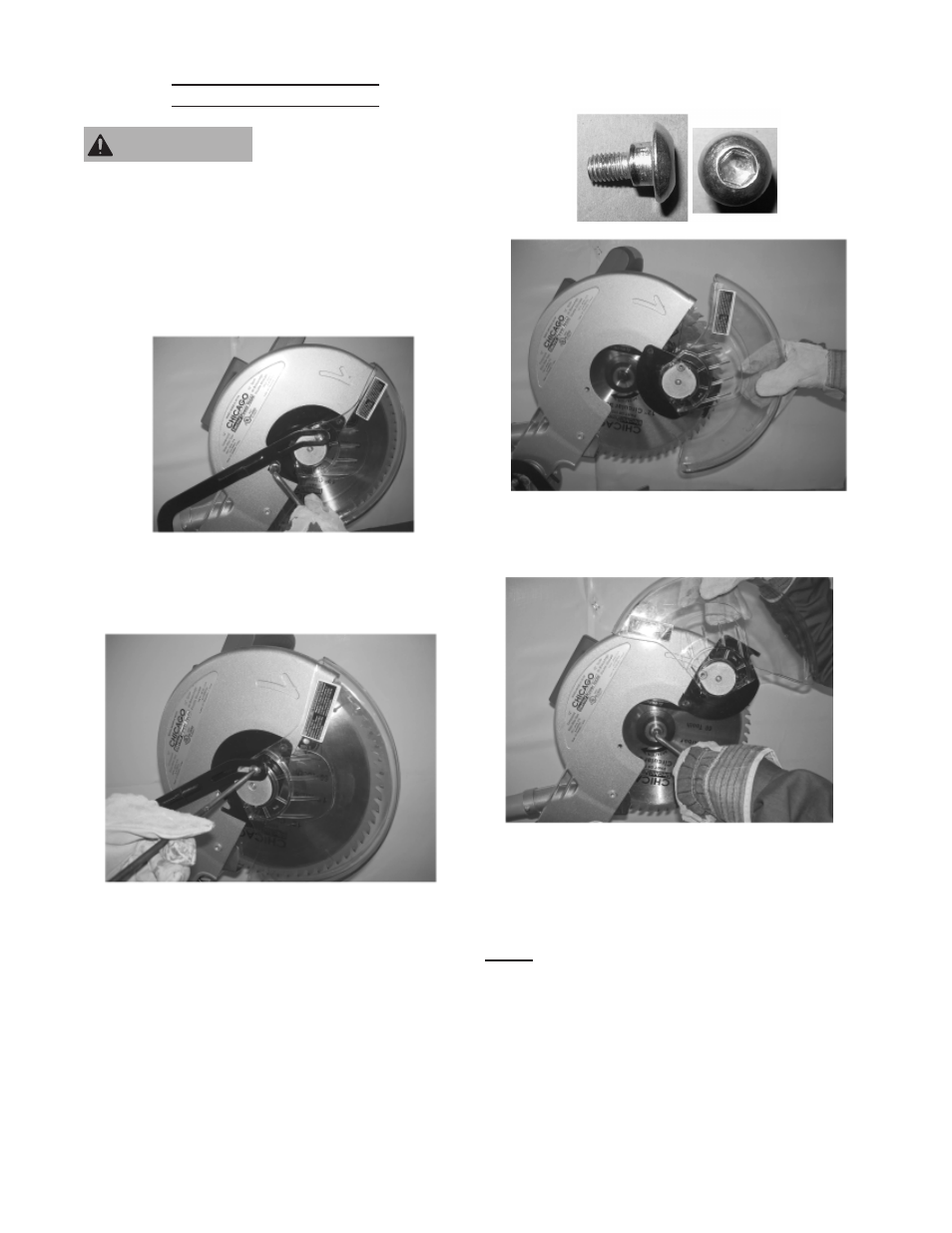

replacing the blade
to reduCe riSk oF
SeriouS injurY:
return guard to original position
and secure in place after
replacing blade.
Unplug the tool from its power source. 1.
Lock the blade assembly in the raised 2.
position by pushing in the Locking Pin.
Loosen the Center Cover Fixing Bolt. 3.
(See Figure 3.)
Remove the Shoulder Screw (15). 4.
(See Figure 4 and photo below.)
Shoulder Screw
Raise the Blade Guard and Center 5.
Cover. (See Figure 5.)
While holding in the Arbor Lock Button, 6.
use the Wrench to loosen the Arbor Bolt
by turning it clockwise. (See Figure 6.)
note: The Arbor Bolt has a left hand thread,
so it loosens by turning clockwise.
Remove the Arbor Bolt, Outer Flange
7.
and Saw Blade by pulling them straight
off the Arbor.
warning
reV 09j
Figure 3
Figure 4
Figure 5
Figure 6
