Hitachi 42V515 - Manual (Page 14)

14

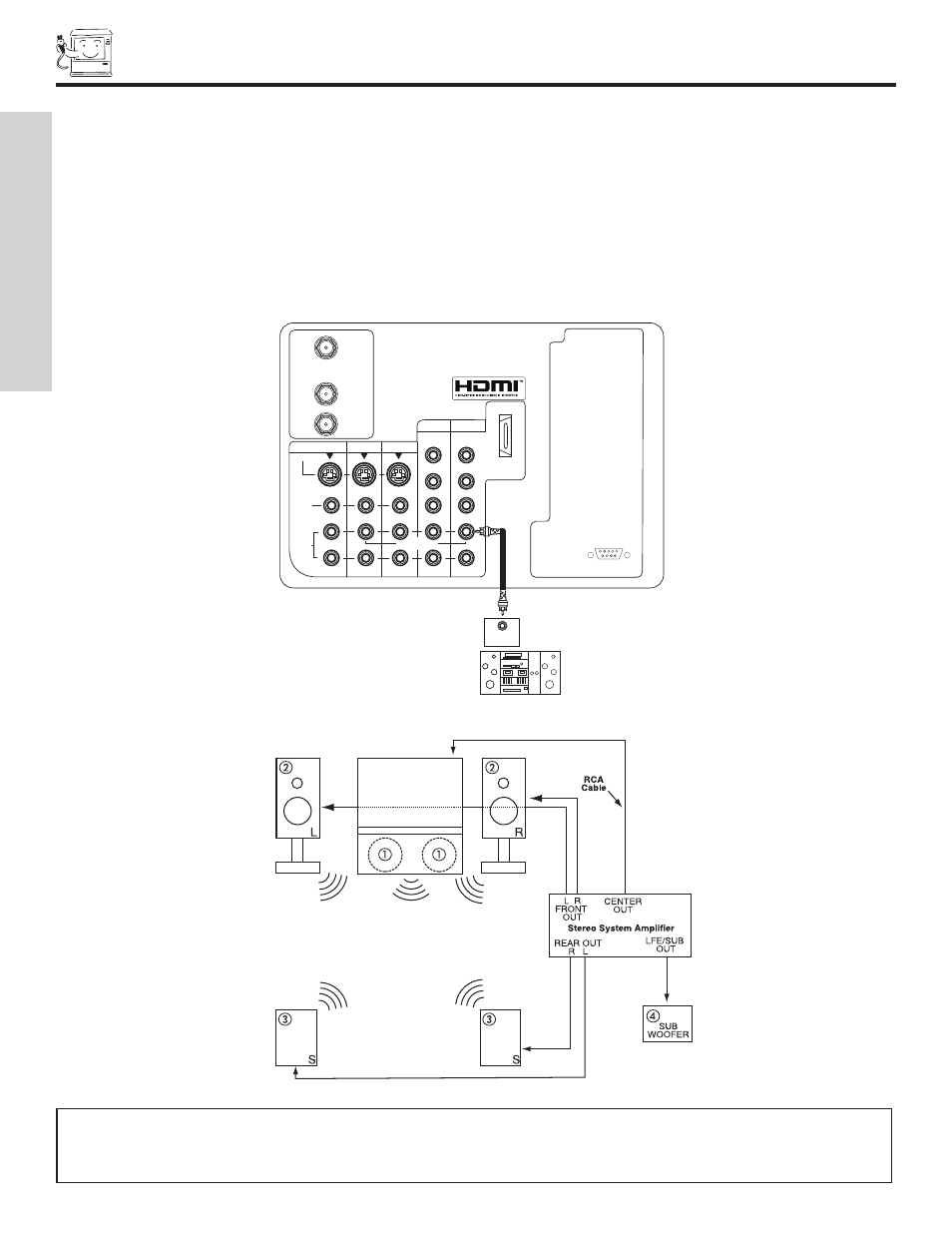

CONNECTING EXTERNAL AUDIO DEVICES
CENTER
OUT
Stereo System Amplifier
or DVD Player
TO
CONVERTER
1 2 3 4 5
9 8 7 6
ANT B
ANT A
S-VIDEO
R
L
VIDEO
AUDIO
(MONO) (MONO) (MONO) (MONO)
P R
P B
Y/
VIDEO Y/
VIDEO
P R
P B
MONITOR OUT INPUT 4 INPUT 3
INPUT 2 INPUT 1
HDMI 1
RS232C
AUDIO
TO HI-FI
TV AS CENTER
REAR PANEL OF TELEVISION
NOTE: 1. See page 46 for AUDIO-Internal Speakers.
Match the numbers below to the diagram for speaker placement.
ᕃ
The television’s internal speakers will act as center speaker (select Audio-Internal Speakers-TV as Center see page 49).
ᕄ
These FRONT left and right speakers are connected to the FRONT output of a separate audio amplifier.
ᕅ
These REAR left and right speakers are connected to the REAR output of a separate audio amplifier.
ᕆ
This subwoofer is connected to the LFE/Sub Out output of a separate audio amplifier.
FIRST TIME USE
