Control panel
To open the door The features
The Empty Water indicator light signals that the water
container is full and must be emptied. The light will
take a few seconds to go out after replacing the
empty water container, the dryer must be running for
this to happen.
Note: If the water container fills, the light illuminates,
the heat is turned off and your laundry will not dry.
The TIMER knob sets a drying time.
Rotate it clockwise, never counter-clockwise , until
the indicator is pointing to the drying time you want to
select (
see Start and Programmes ).

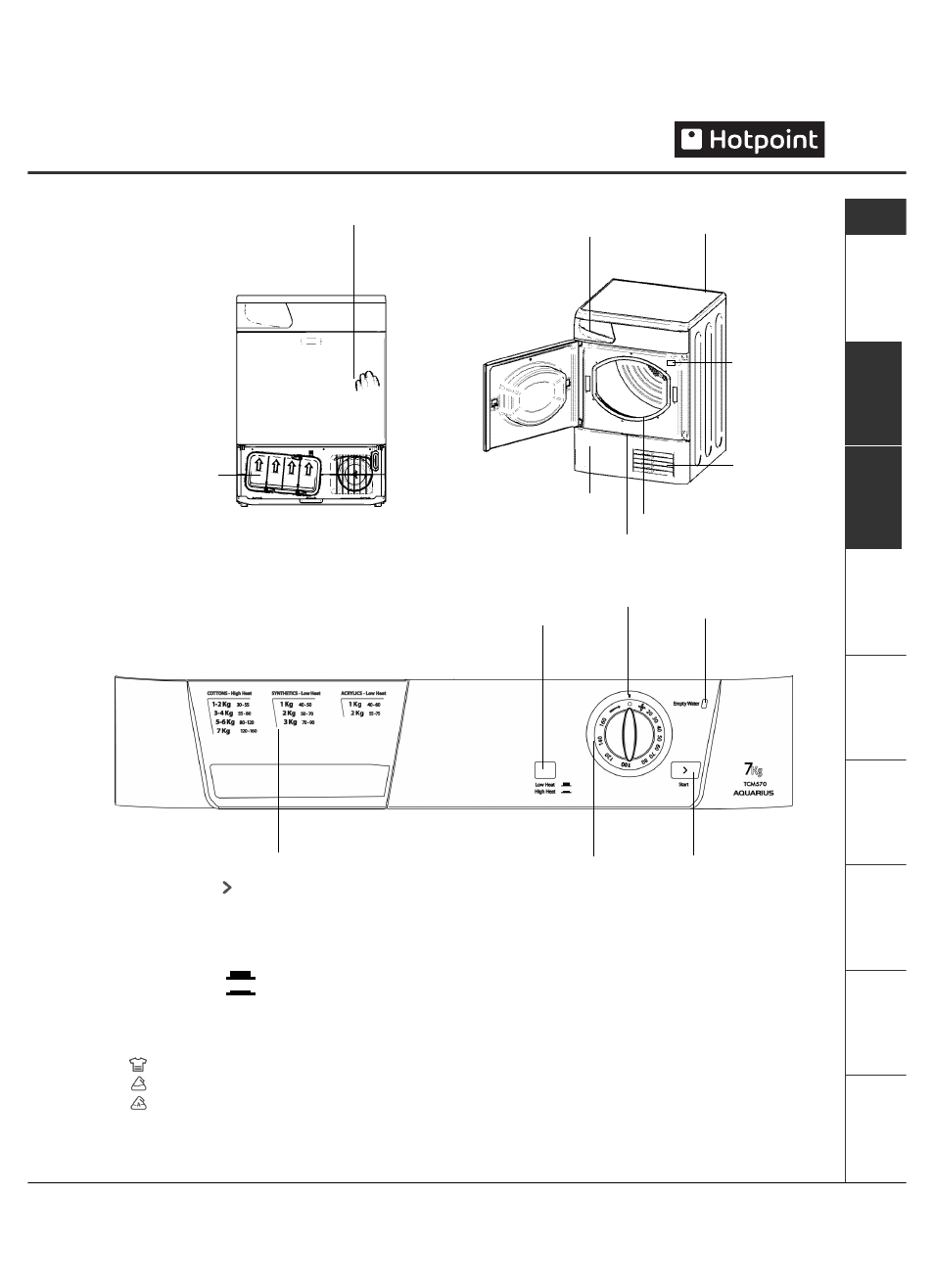

Dryer Description
The START button begins drying a selected
programme ( see Start and Programmes ).
The HEAT button selects drying temperature ( see
Start and Programmes ).
OUT: Low heat
IN: High heat
The Drying Guide allows you to consult a user
friendly table of fabric types and load capacities.
Cottons
Synthetics
Acrylics and other delicates
Water container
Air intake
grille
Rating plate
Filter
Model &
Serial
numbers
Condenser cover handle
(Pull to open)
Condenser cover
Press and release the front
panel in position shown
Condenser Unit
(cover open)
Drying Guide
TIMER
Knob
START
Button
Indicator
Empty Water
Light
HEAT
Button
