Quadra-Fire is a registered trademark of Hearth & Home Technologies. Product specifications and
pricing subject to change without notice. The Quadra-Fire Garnet-T direct vent gas appliance listed
to ANSI standard Z21.88a-2000/CSA 2.33a-M00 Vented Gas Fireplace Heaters and applicable sections
of UL307b Gas Burning Heating Appliances for Manufactured Homes and Recreational Vehicles,
CAN/CGA 2.17-M91 “Gas Fired Appliances for Use at High Altitude,” by OMNI-Test Laboratories, Inc.,
Beaverton, OR.
Available From:
Limited Lifetime Warranty †
The strongest in the industry, Quadra-Fire provides a
limited lifetime warranty on gas-burning products for their
most important aspects: firebox and heat exchanger.
†For full warranty details go to www.quadrafire.com
1445 North Highway, Colville, WA 99114
www.quadrafire.com • 800-926-4356
QDF-1005U-0908
A Side of stove top to side wall ................................................... 6"
B Rear of stove to back wall ........................................................ 2"
C Corner of stove top to side wall (left) ....................................... 2"
D Minimum alcove height ......................................................... 43"
E Maximum alcove depth ......................................................... 36"
F Minimum alcove width.......................................................... 30"
G Top of stove to alcove ceiling ........................................... 19-3/8"
H Mantel clearance ..............................................................19-1/2"
Width ................................ 17-7/8"
Height ...............................23-5/8"
Depth ................................ 15-3/8"
Shipping weight ................160 lbs.
Flue size ..............................6-5/8"
Standing pilot ignition .............. Yes
Mobile home approved ............ Yes
Bedroom approved................... Yes
Heating capacity ................................................................ Up to 700 sq. ft.*
Btu/Hour Input NG ............................................................... 12,000 - 17,000
Btu/Hour Input LP ................................................................ 13,000 - 17,000
Efficiency .................................................................................. up to 83%**
Convection blower ...........................................................................160 cfm
Operable cabinet style doors •
(Non-operable doors also available,
matte black only)
Tube heat exchanger •
Strength & beauty of cast iron •
Matte black finish •
One-hand lighting •
Ceramic burner & Pyroglo logs •
Natural convection heater •
Heats without power •
Bedroom/mobile home approved •
Limited Lifetime Warranty •
Porcelain enamel finish in mahogany •
Baked durable finish in sienna bronze •
and willow
Firescreen •
Circulation blower •
Thermostat & remote control •
DV Slim Line wall thimble •
Don’t let its size fool you—the Garnet-T is a champion. It’s a little
heater with a big heart. A diminutive footprint and impressive
design features combine to make this smallest member of the
Quadra-Fire family perfect for the bedroom, den or dining room.
The Garnet-T is designed to be both attractive and economical,
devoted to the zone heating concept—heat the space you’re in,
not the entire house.
A
G-Alcove
A
D* C
Left
Right
A
B
F
E A
"A" measurement is from
stove top, not side
C
H*
No floor protection
required. May be
installed directly on
carpet or flooring.
The TrueGlow Burner, an
exclusive from Quadra-Fire,
sets a new standard for realism.
The ceramic burner is molded
from real wood pieces and
coals. Flames rise from gas
ports distributed throughout
the glowing coal bed and lower
logs, producing an incredibly
active and varied fire. No need
to hide the burner anymore—the TrueGlow burner proudly takes
center stage, with an appearance that is phenomenal, whether
it’s burning or not.

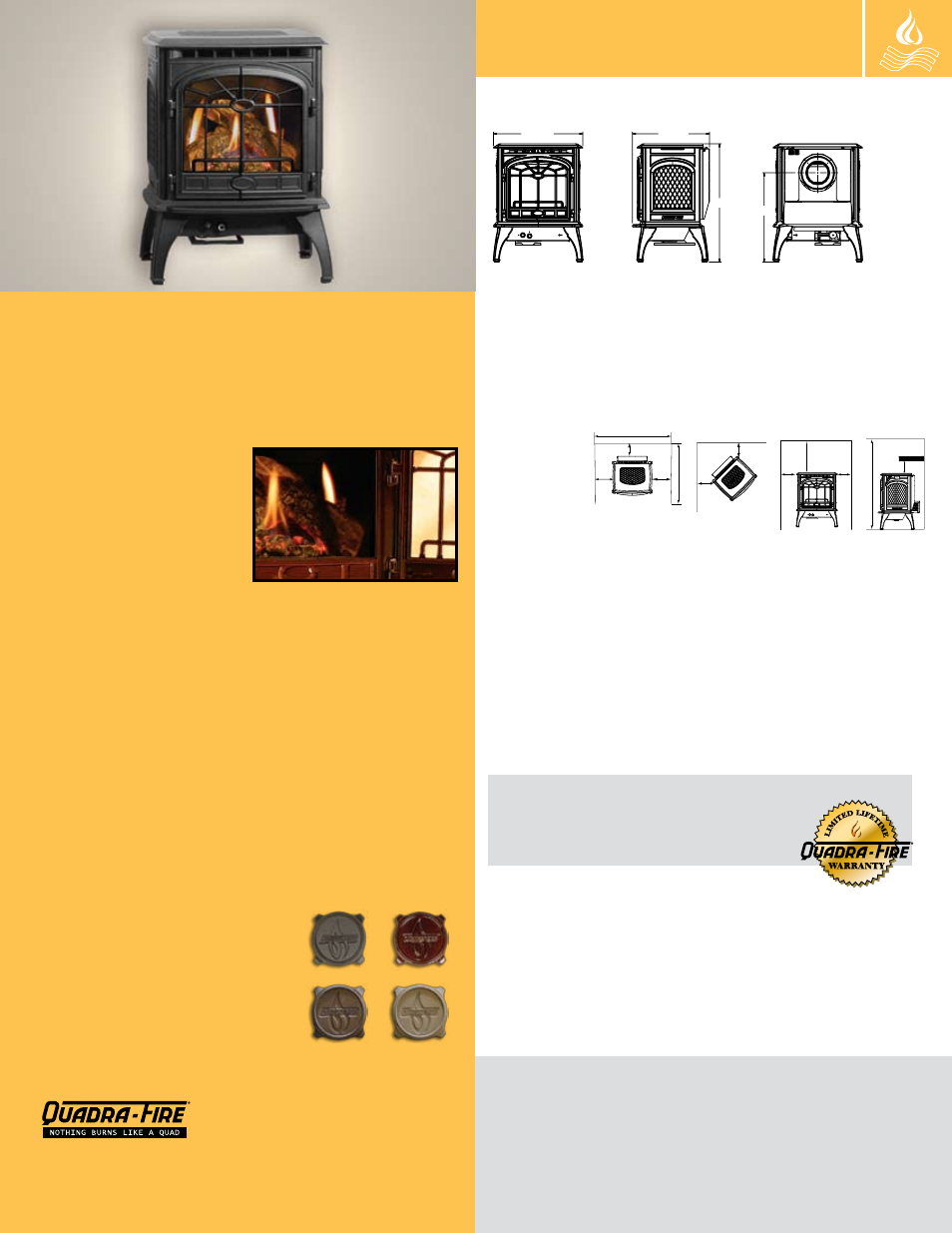

Dimensions Dimensions
Clearances
Technical & Performance Data
Options
Standard Features
Cover photo: Garnet-T in optional sienna bronze finish
with operable doors
IMPORTANT - READ BEFORE YOU INSTALL!
Refer to the Owner/Installation Manual for complete clearance requirements and specifications. The
images and descriptions in this brochure are provided to assist you in product selection only. Actual
product appearance, including flame, may differ from product images. *Heating capacity rating is
to be used as a guideline only. Actual performance may differ slightly due to climate, building con-
struction and condition, amount and quality of insulation, location of the heater, and air movement
in the room.
**Canadian: P.4.1-02 68% NG/70% LP.
Garnet-t
Black Mahogany
Sienna
Bronze
Willow
17-7/8" 15-3/8"
23-5/8"
17-3/4"
Shown in black finish
