Heat & Glo Fireplace 6000 XLT - Manual (Page 17)

14
H
V
V
1
V
1
VENTING WITH TWO (2) 90° ELBOWS
V (FT.) H (FT.) (8000 & 6000’s) H (FT.) (SL-42DVT)
1' MIN. (305 mm) 6' MAX. (1.6 m) 3' MAX. (914 mm)
2' MIN. (610 mm) 12' MAX. (3.72 m) 6' MAX. (1.86 m)
3' MIN. (914 mm) 18' MAX. (5.58 m) 9' MAX. (2.74 m)
4' MIN. (1.22 m) 24' MAX. (8.44 m) 12' MAX. (3.66 m)
24' MAX. (8.44 m) 12' MAX. (3.66 m)
(21' IN CANADA 6.5 m)
NOTE: V + V
1
MAX. 20' (6.2 m)
NOTE: MODEL 6000 ARCH
A 12-inch length of straight vent pipe MUST
be the first vent component attached to the
unit.

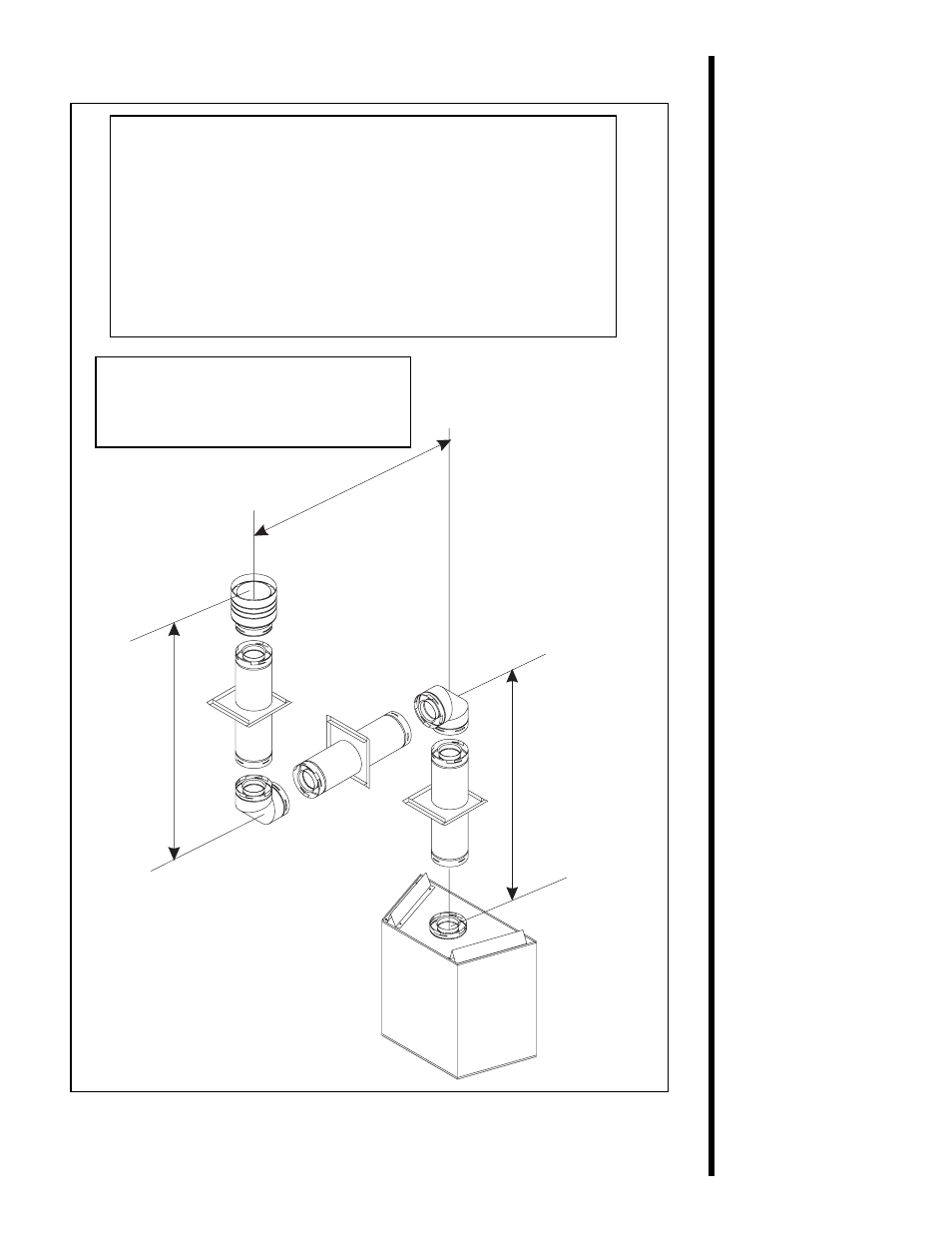

Figure 12. Venting with two 90° elbows
