Hunter Fan Fan User Manual

Page 7

41854-01 11/12/2003

Attach each blade to blade iron using three blade assembly
screws as shown in Figure 19. Some fans feature a decorative
medallion as well as a blade iron. Insert the assembly screws
into the blade iron, through the blade and into the medallion,
with the blade sandwiched between the blade iron and me-
dallion as shown in Figure 20.

If you used grommets, the blades may appear slightly loose
after screws are tightened. This is normal.

Remove the shipping bumpers from the top of the motor as-
sembly as shown in Figure 21.

Remove the blade mounting screws from the top of the motor
assembly as shown in figure 22

For each blade, insert one blade mounting screw through the
blade iron as shown in Figure 23, and attach lightly to the fan.
Insert the second blade mounting screw, then securely tighten
both mounting screws.

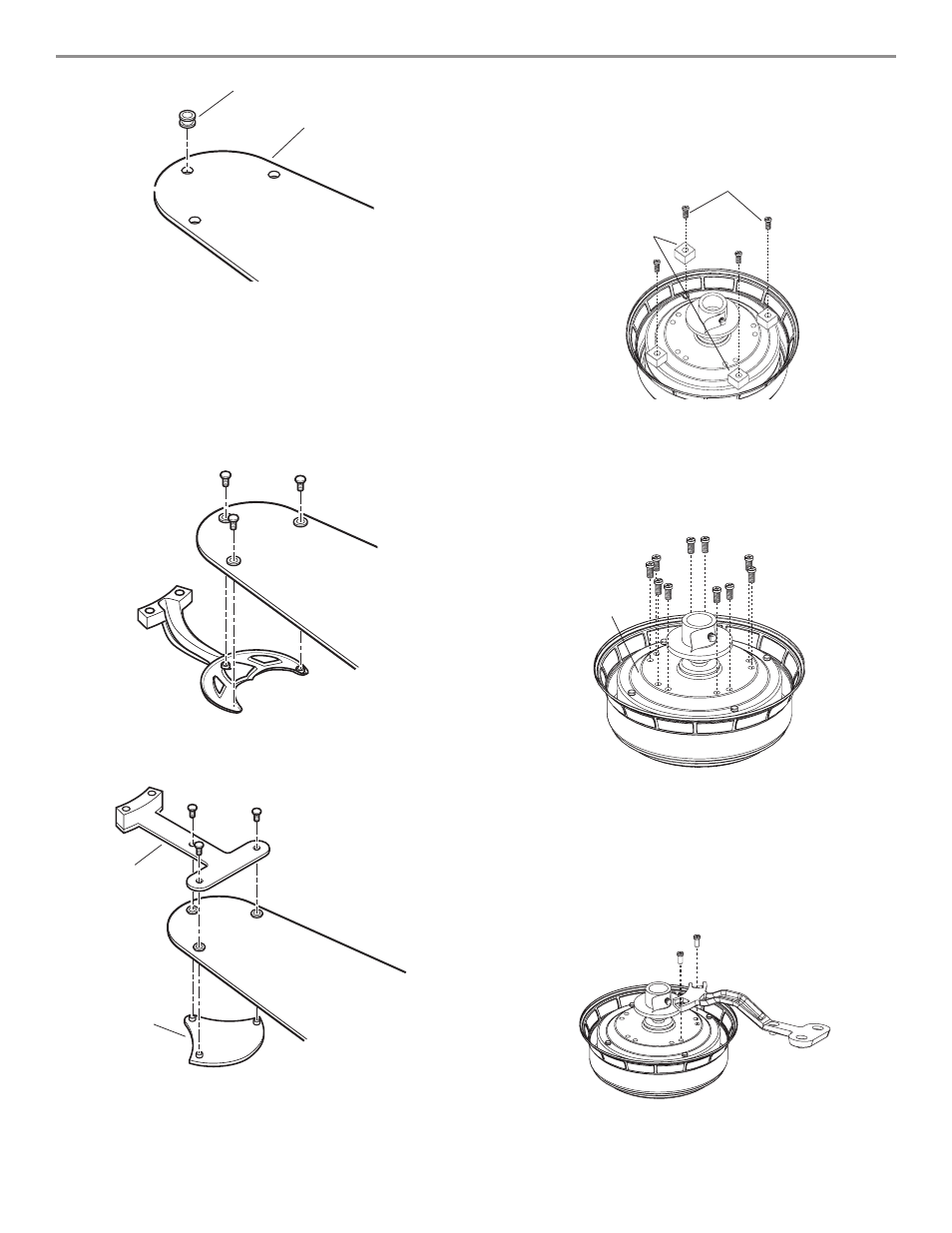

Figure 19 - Attaching the blade to the blade iron

Figure 18 - Inserting the grommets into the fan blades

Grommet

Fan Blade

Figure 20 - Attaching the blade to the blade iron and

medallion

Blade Iron

Medallion

Figure 21 - Removing the shipping bumpers form the

motor assembly

Shipping Bumper Screws

Shipping Bumpers

Figure 22 - Removing the blade mounting screws from the

motor assembly

Blade Mounting Screws

Motor

Motor
Housing

Figure 23 - Attaching the blade assembly to the hub of the

fan assembly

Blade Mounting Screws

Blade Iron
