Basic sPeciFicatiONs
Equipment
Lubricant
Type Compressor Oil
Capacity 1.37 Quarts
Engine
65204
13 HP, EPA/CARB
Compliant
99918 13 HP, EPA Compliant
Rotation viewed from PTO
(power takeoff - the output shaft)
Counterclockwise
Engine Shaft
Ø 1” x 2- 7 /
8
” Long
1 /
4
” Keyway
3 /
8
”-24 UNF inner thread
Air Pressure Range 145-175 PSI
Air Outlet 3/4" NPT
Air Flow
19.5 CFM @ 40 PSI
18.7 CFM @ 100 PSI
Engine Idle Speed
1,800±100 RPM
(Pressure switch controlled)
Note: Engine specifications are found in
the engine manual supplied with this
equipment.

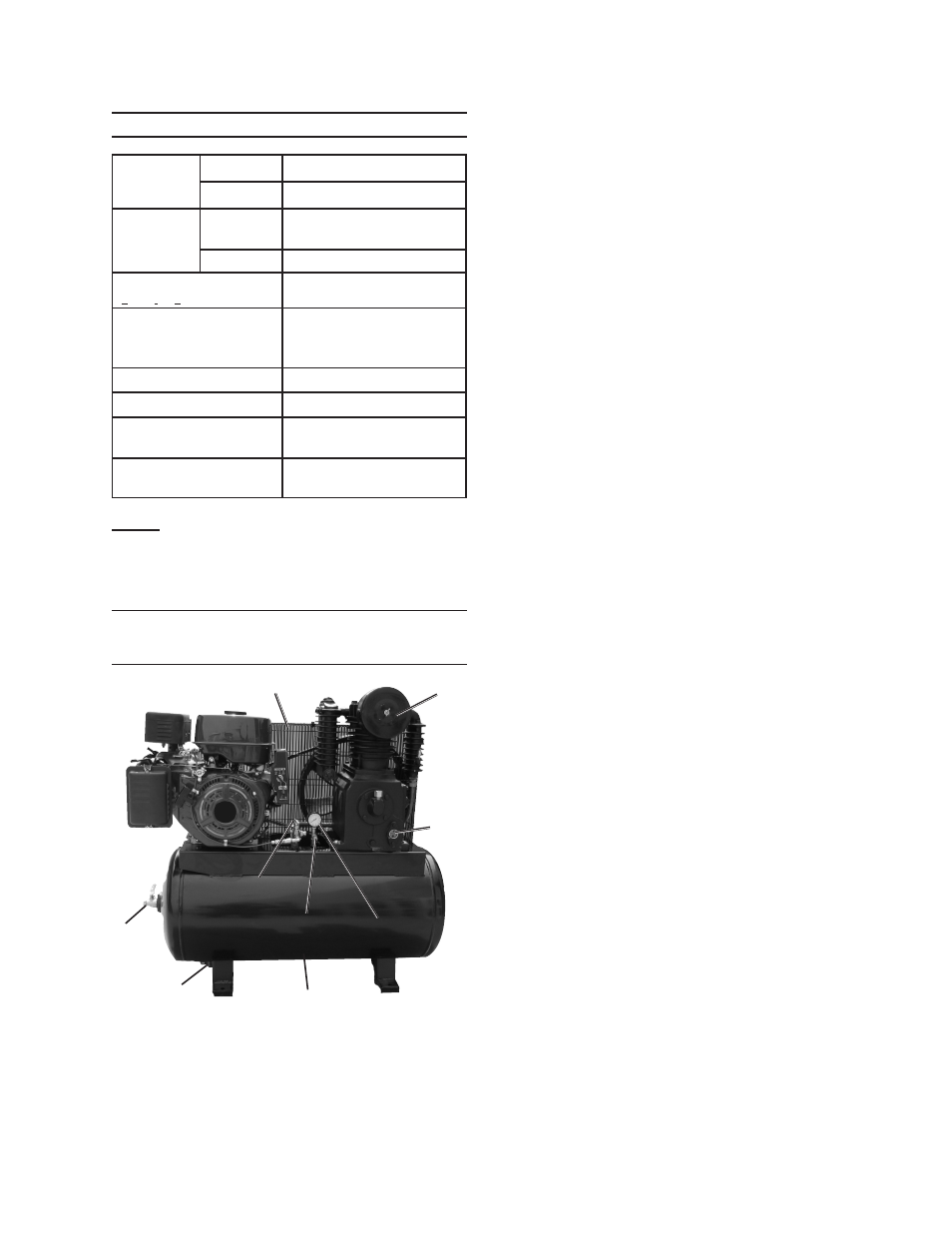

cOmPONeNts aNd
cONtrOls
Ball
Valve
Tank Drain
Air Storage Tank
Oil
Sight
Glass
Belt Guard
Pilot
Valve
Safety
Valve
Tank Pressure
Gauge
Air
Filter
Fig. 1
1. Belt Guard. The Belt Guard (A1)
encloses the pulleys and drive belts.
It protects the user from the mov-
ing parts and allows the large pulley
to direct cooling air to the Air Pump
(A2).
Oil Sight Glass. The oil sight glass
2.
shows proper level of the oil. Oil level
should be at center of Sight Glass.
Tank Drain Valve. The Air Tank (A18)
3.
drain valve allows moisture to be
removed from the tank to reduce the
chance of corrosion inside the tank.
Safety Valve. This Safety Valve (A15)
4.
automatically releases air if the Air
Tank (A18) pressure exceeds the
preset maximum.
In an emergency, the ring could be a.
pulled to reduce tank air pressure.
Ball Valve. Air hose attaches to this 5.
valve. Air pressure required by tools
is set by an air pressure regulator.
Regulator and Gauge (Not Included).
Outlet air can be regulated by adjust-
ing the regulator knob. Clockwise will
raise outlet pressure and counter-
clockwise will lower outlet pressure.
Outlet pressure will be displayed on
the regulator’s pressure gauge.
Air Storage Tank. The Air Tank (A18)
6.
is where air pressurized by the Air
Pump (A2) is stored for later use.
Tank Pressure Gauge. The Air Tank
7.
Pressure Gauge (A20) displays the
air pressure in the tank.
