5
ELECTRIC WALL OVEN INSTALLATION INSTRUCTIONS
G
F
H
36” Min.
(91.4 cm) Min.
Use 3/4” (1.9 cm) plywood, installed
on two runners, flush with toe plate.
Must be capable of supporting 200
pounds (90 kg).
Cut an opening in wood base minimum 4” x 4”
(10.2 X 10.2 cm), 2” (5 cm) from left side filler
panel, to route armoured cable to junction box.
208/240 Volt junction box
for built-in oven.

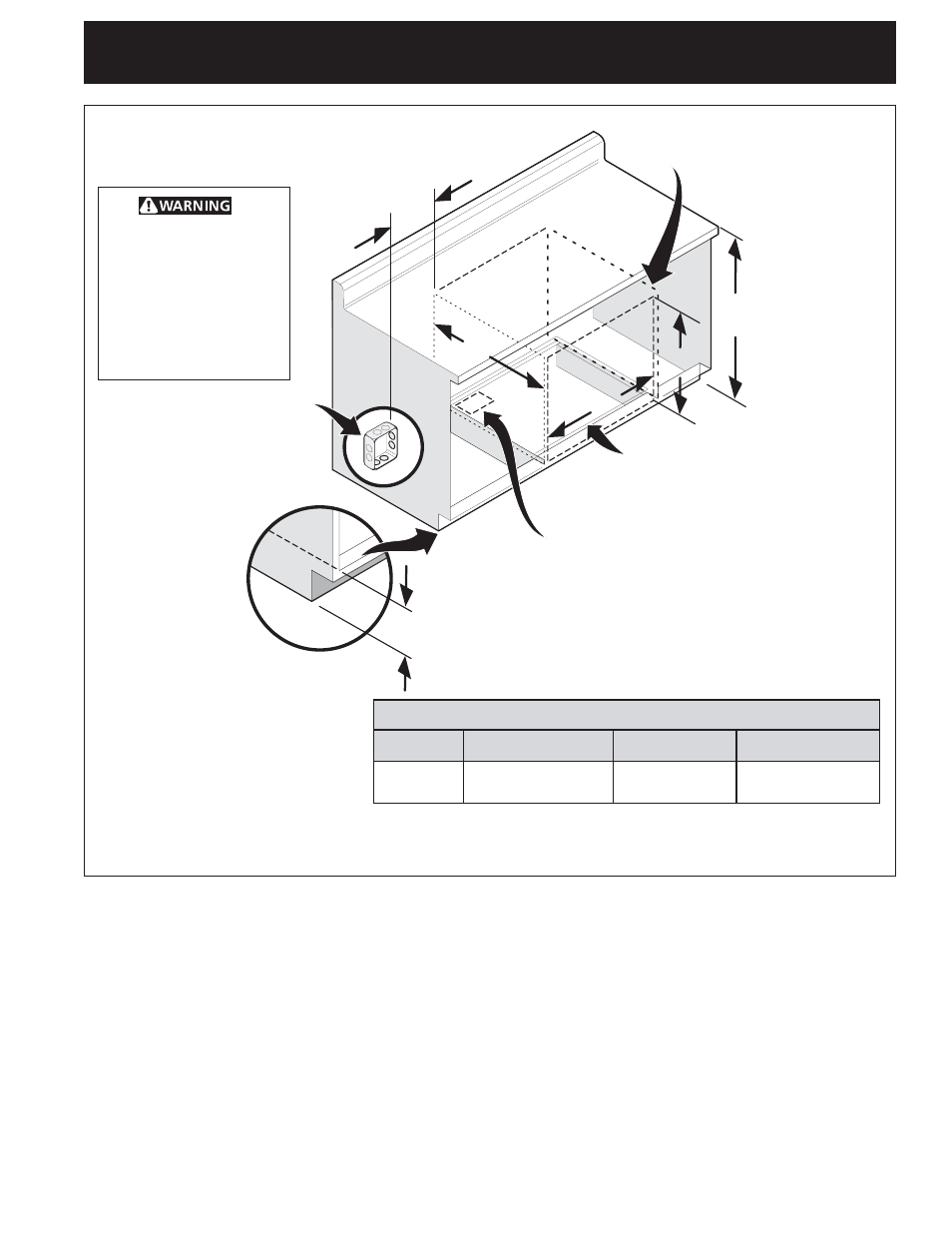

Figure 8- TYPICAL UNDER COUNTER INSTALLATION OF AN ELECTRIC BUILT-IN OVEN
Approx. 3”
(7.5 cm)
Cabinet side filler panels are
necessary to isolate the unit from
adjoining cabinets.
To reduce the risk of per-
sonal injury and tipping
of the wall oven, the wall
oven must be secured to
the cabinet (s) by
mounting brackets. Refer
to page 4 for mounting
brackets installation.
5” (12.7 cm) Max.
CUTOUT DIMENSIONS
F. WIDTH G. DEPTH H. HEIGHT
30" (76.2 cm)
Wall Oven
28 1/2" (72.4 cm) Min.
29" (73.7 cm) Max.
24" (61 cm) Min.
28 1/4" (71.8 cm) Min.
28 7/8" (73.3 cm) Max.
