MODELS
Description
Style number
Rating
(VA/
Watts)
Input
plug
Output receptacles
Dimensions
H x W x D, mm
Weight,
kg
Rack Tower Models
9135G-6000 R/T 3U
103006722-6591
6000/4200
Hardwired
Hardwired + (2) C19, (8) C13
130 x 444 x 741
57
Extended Battery Modules
9135G-6000 EBM R/T 3U
103006723-6591
NA
NA
NA
130 x 444 x 650
77.5
BATTERY BACKUP TIMES (IN MINUTES)*
Loads (VA/Watts)
Standards Internal Batteries
+1 EBM
2 EBMs
+3 EBMs
+4 EBMs
1000/700
36
132
232
332
433
2000/1400
13
52
95
140
184
3000/2100
10
40
74
110
146
4000/2800
7
29
53
80
107
5000/3500
5
22
41
62
83
6000/4200*
4
18
33
50
68

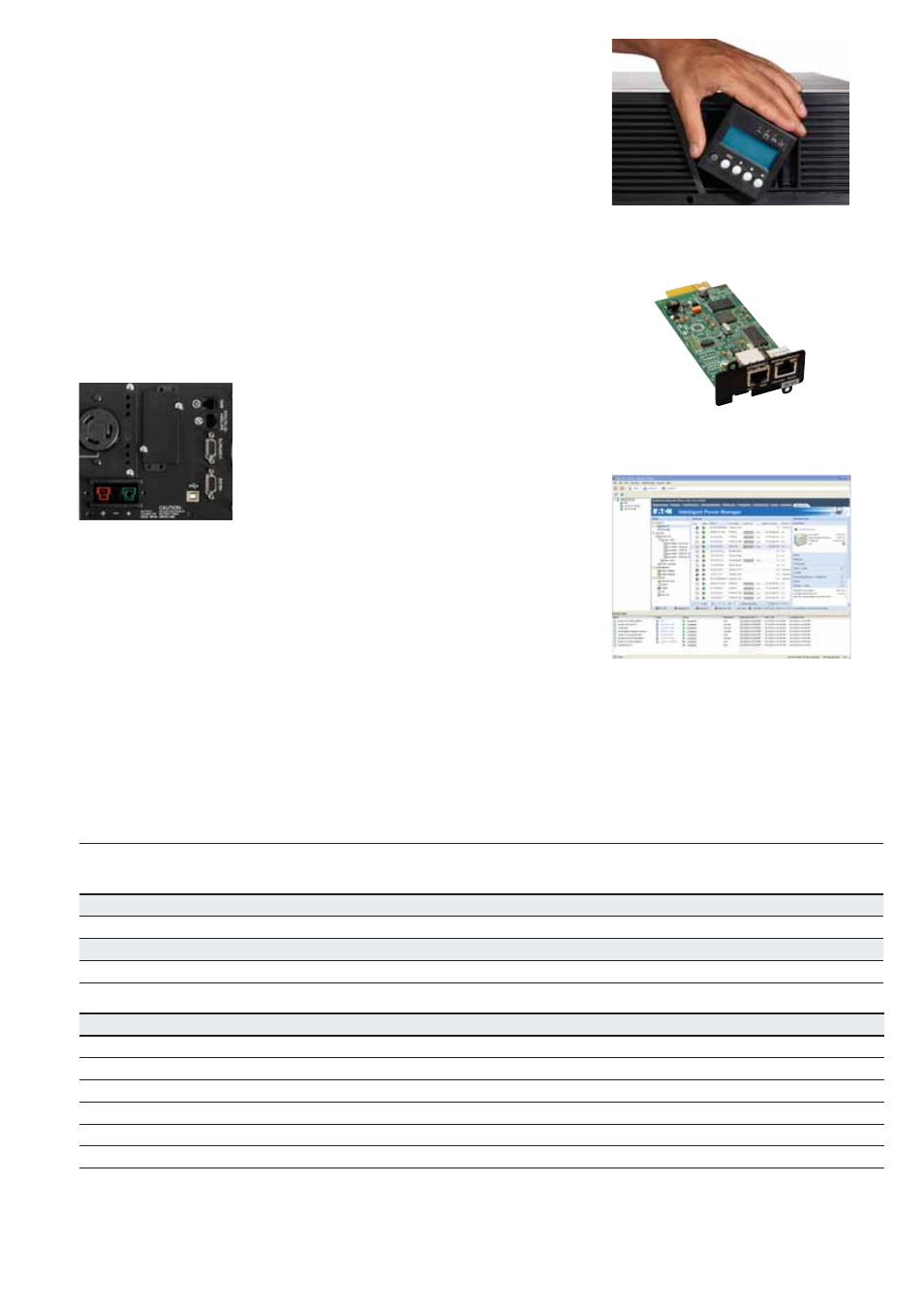

Visibility, control and management from anywhere
Local UPS status at a glance. An intuitive LCD interface pro-
vides detailed information and menu-driven functions for UPS
management. The entire display rotates for the best orienta-
tion, whether the UPS is used vertically as a tower unit or
horizontally in a rack. The blue, backlit LCD screen displays
four lines of alphanumeric information. LEDs clearly display
UPS status:
Load Protected
•
Downgraded Operation
•
Load Not Protected
•
UPS ON/OFF button
•
Choice of connectivity options. Connectivity options are avail-
able for almost any networking environment. The standard
unit comes with USB and RS-232 serial communication ports
and a DB-9 dry contact port. You can customize your UPS by
adding MS-slot interface options for other types of communi-
cations.
Optional communication card
1.
slot for Web/SNMP interface
USB port
2.
DB 9 serial port
3.
DB 9 with five dry output
4.
contacts
Remote power off
5.
Unified management for power protection. The 9135 comes
complete with the Eaton Software Suite CD, including SNMP-
compatible power management software providing control
and visibility over all your UPS systems. From a central van-
tage point anywhere within the reach of a network connection,
you can:
Establish prioritized shutdown of network devices and cli-
•
ent/ server applications
Test all network-connected UPSs from one node
•
Stay informed of power problems via email broadcasts
•
* Runtimes available for the 6 kVA model only. Battery backup times are approximate and may vary with equipment, configuration, battery age, temperature, etc.
Web/SNMP card
Intelligent Power Manager (IPM)
LCD rotatable display
