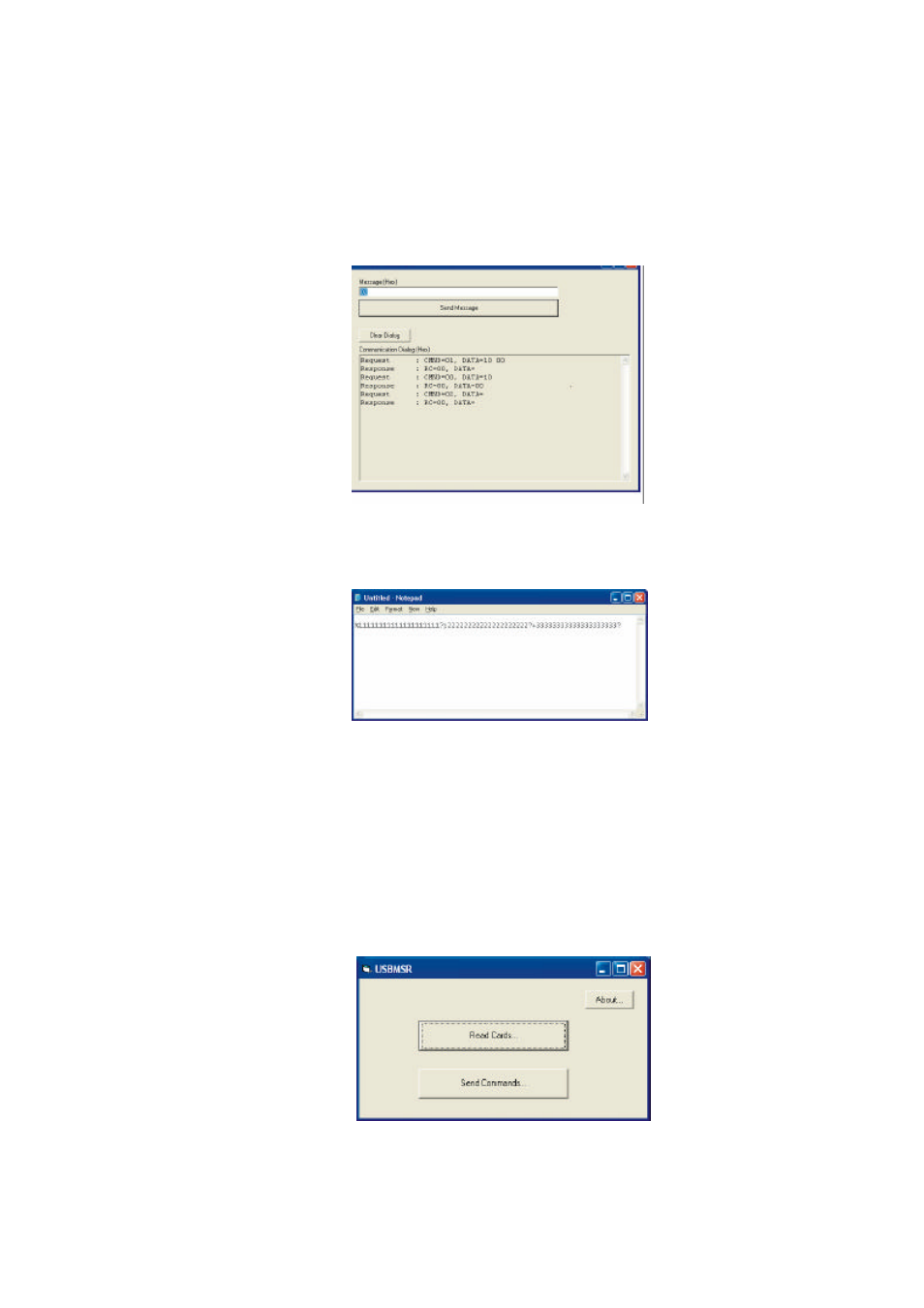

1.19

The DATA=01 means it’s USB Keyboard Emulation.

1.20

You must now reset the MSR by sending the command 02.

1.21

Type 02 into area under the heading Message(Hex)

1.22

Then click on Send Message.

1.23

Double click on The KB MSR Test icon in the desktop and slide the test c card.

The following icon will appear

1.24 Done.

Convert MSR from keyboard emulation to HID

MSR Convertion:

Get program @ http://www.magtek.com/support/software/demo_programs/usb_swipe_insert_reader.asp

1.

To convert from Keyboard Emulation to HID Mode.

1.1

Double click on HID MSR Icon in desktop.

The following window will appear

2-22 Elo Entuitive Touchmonitor User Guide
