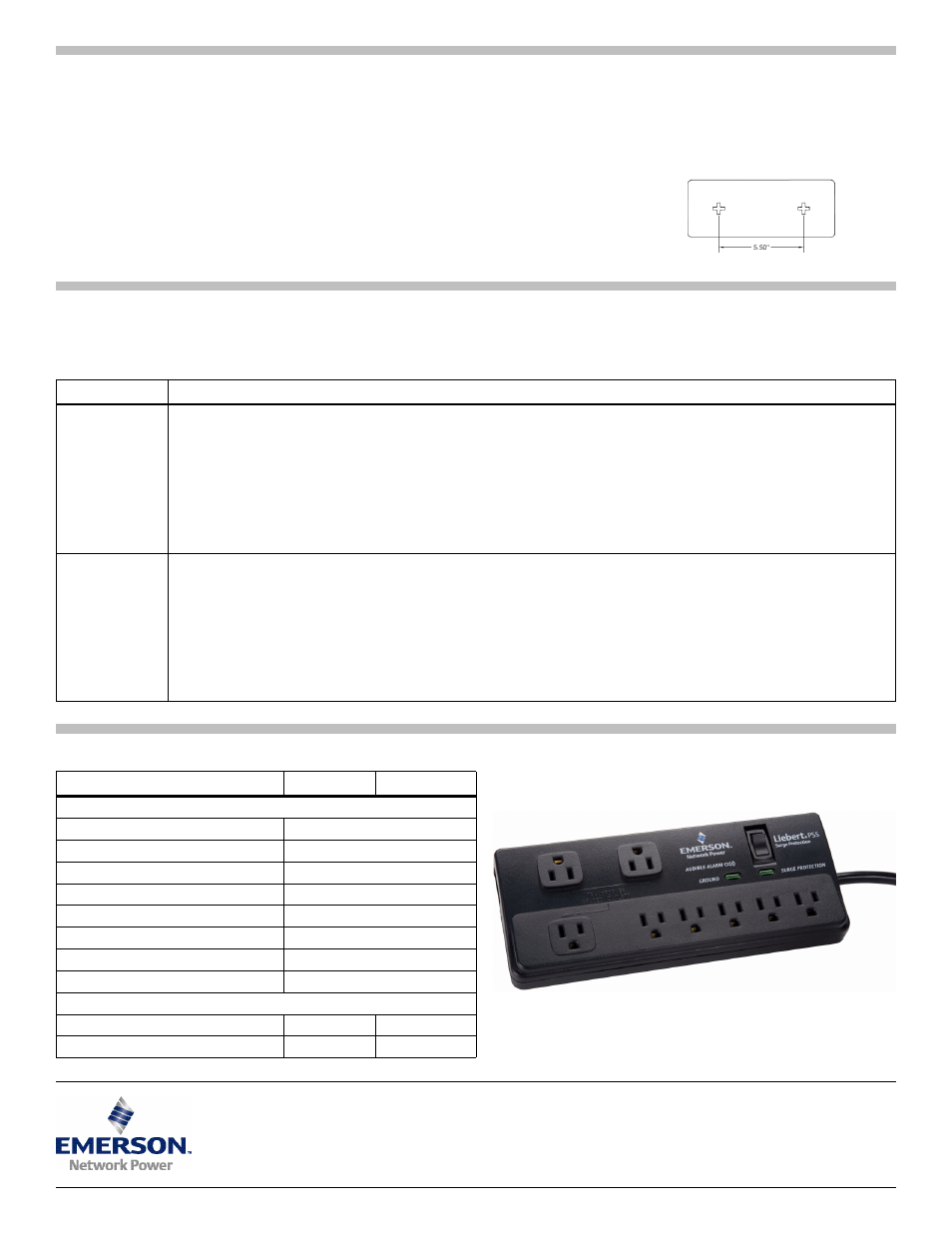

F
EATURES
Indicators
Each Liebert PSS has a visual SURGE PROTECTION
indicator that illuminates (green) to show that the surge
suppressor is functioning properly.
The Liebert PSS also has an audible alarm to alert you if
the suppression fails. Surge suppressors are often hidden
from view behind furniture and other objects that prevent you
from seeing the visual indicator.
Wall Mounting
If wall mounting is desired, two keyed slots are provided and
located on the back of the surge suppressor.
T
ROUBLESHOOTING
If the Liebert PSS malfunctions during operation, check the following chart for proper adjustment. For further assistance,
please contact your local Emerson Network Power representative.
S
PECIFICATIONS
Wall Mounting Detail
Rear View
Problem Recommended Actions
The green
GROUND
indicator
does not
illuminate.
Try plugging the Liebert PSS into a different wall receptacle.
• If the indicator illuminates, the Liebert PSS is operating properly and the first wall receptacle needs repair. Please
contact an electrician to repair the faulty receptacle.
• If the indicator does NOT illuminate in a different receptacle:
• Your building wiring might not contain a ground conductor. In this case, the indicator light will not illuminate but
you will still have power out of the Liebert PSS.
• The Liebert PSS may have been damaged. Please contact your supplier for any warranty return/repair
instructions.
The green
SURGE
PROTECTION
indicator
does not
illuminate
when
powered ON.
Try plugging the Liebert PSS into a different wall receptacle.
• If the indicator illuminates, the Liebert PSS is operating properly and the first wall receptacle needs repair. Please
contact an electrician to repair the faulty receptacle.
• If the indicator does NOT illuminate in a different receptacle:
• The Liebert PSS may have been overloaded and the internal circuit breaker may have tripped. Remove all
loads from device and reset the circuit breaker by pushing the button back in. Replace loads one at a time.
• The Liebert PSS may have been damaged. Please contact your supplier for any warranty return/repair
instructions.
Model Number PRF 1080 NET 1080T
AC Power Protection
Nominal Operating Voltage
120V
Maximum Operating Voltage 130V
Rated Output 15A
Mode of Protection L-N, L-G, N-G
Peak Surge Rating 72,000A
Surge Energy 1080 Joules
EMI/RFI Filtration Yes
UL 1449 Surge Voltage Rating 330V
Network Protection
Connection Type
— RJ45
Protection — 2 Pair
