1.3.2. Base Board

The base board that is on the bottom of the housing connects to power cable, video

cable, control cable, alarm cable, fan and heater (fan and heater are for EPTZ900 only). In

order to connect to cables, the board needs to be taken off, and put back after finishing

connecting to all cables. The connectors of cable names are marked on the board in white

text. The details of the alarm connector (JP5) are shown on the APPENDIX A.

For EPTZ900, JP1, JP3 and JP6 that are two-pin connectors on the base board need to

be taken off during installation. JP1 and JP3 are connectors for heater, and they can be

switched. JP6 is a fan controller connector that turns on/off of the fan. The 3 cables are too

short to be connected to a wrong connector when putting them back.

RELAY

JP6

JP4

JP3

JP1

JP5

Video +

Video -

RS485 +

RS485 -

AC24

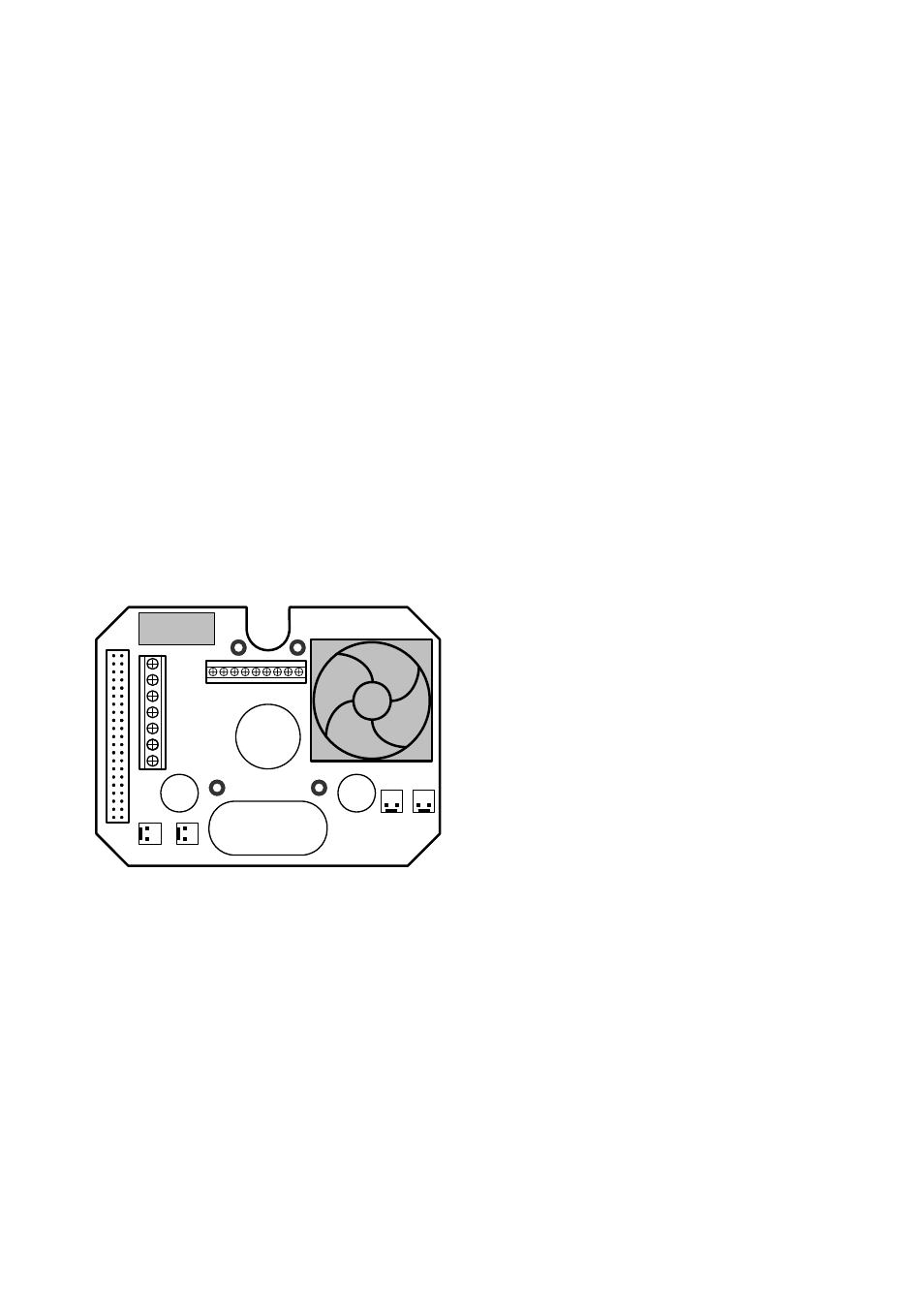

EPTZ900 Baseboard
