Connecting The Speakers
Note: Always connect the speakers before switching the power ‘On’, and
never operate the system without the speakers properly connected.
The speaker cables and the speaker terminals are color-coded.
• Connect the Red wires to the Red terminals.
• Connect the Black wires to the Black terminals.
• Connect the Right speaker to the (R) terminals, and the Left speaker to the (L)
terminals.
If the wires are connected incorrectly the sound will be “muddy” or distorted.
To make the connections, push the levers downward to open the terminals. Insert
the bare ends of the speaker wires into the terminal openings and then push the
levers back to their original positions to close the terminal openings and lock the
wires in place.

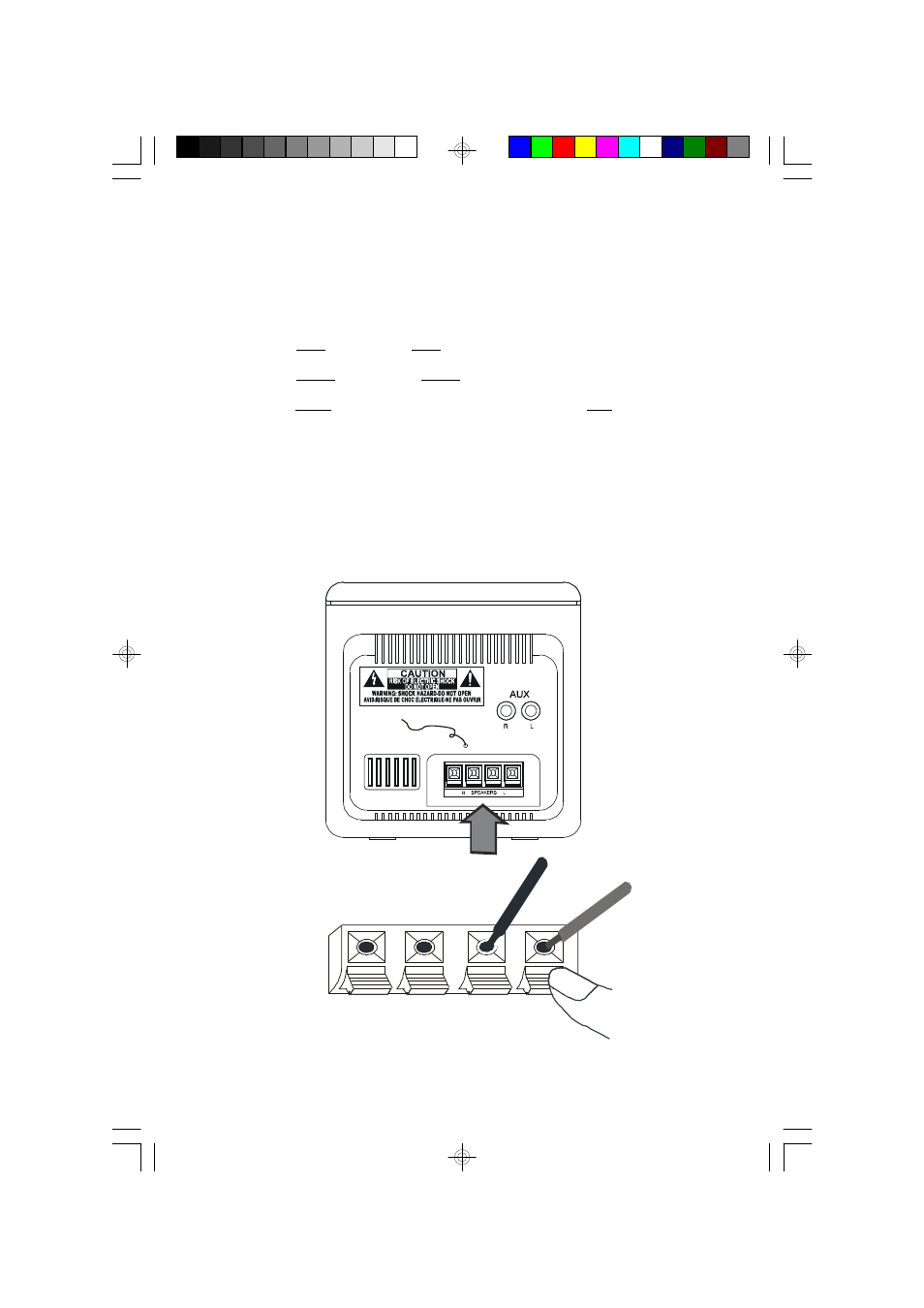

RED WIRE
BLACK WIRE
SPEAKERS R L
