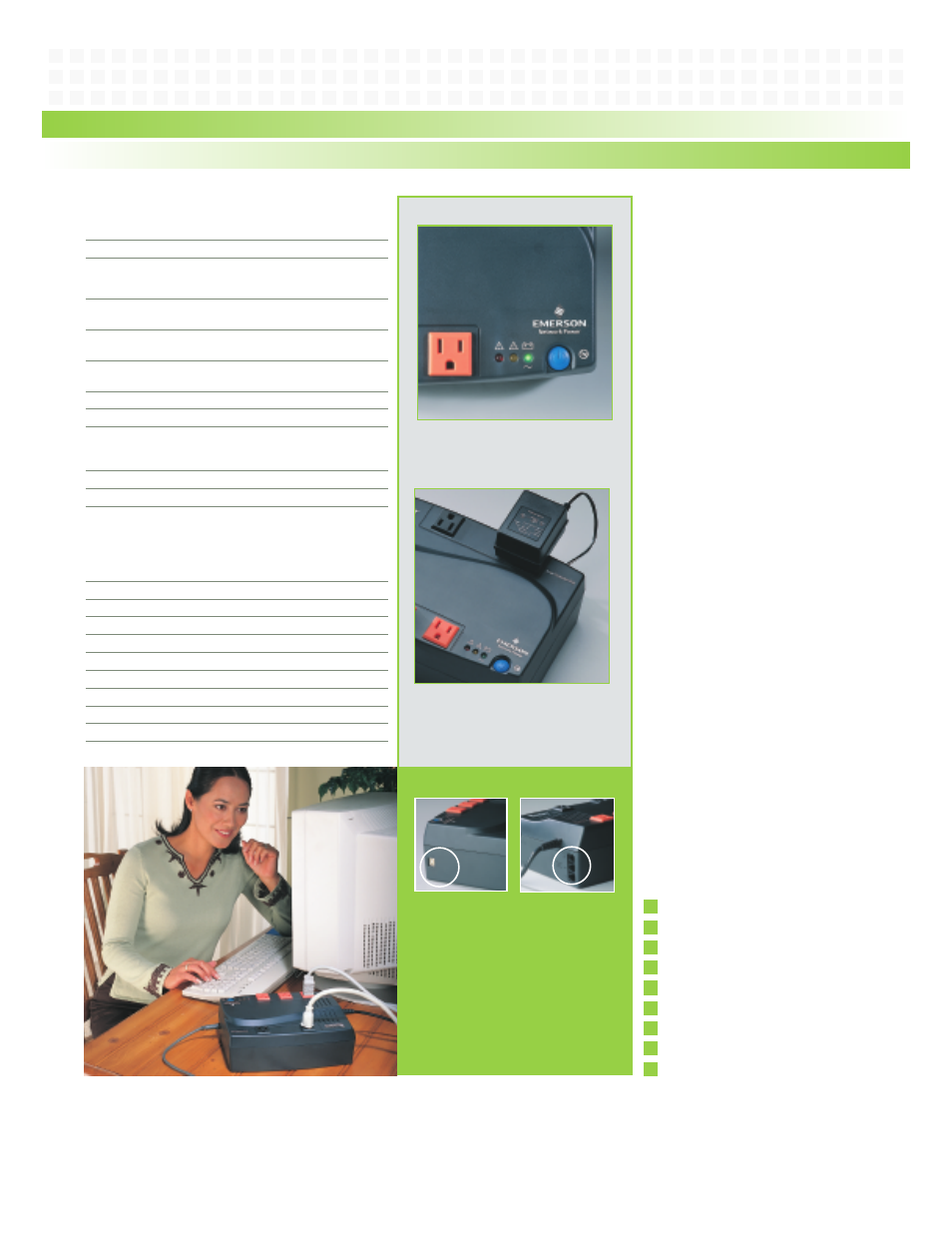

Status indicators let you know the
condition of the UPS.
All outlets are spaced to accommodate
transformer plugs.
Data-Line protection
ensures that your
communication
outlets (Phone /
Fax / DSL /Internet /
Modem) are also
protected.
USB port offers
communication
to shut down if
an outage ever
exceeds battery
capacity.
PowerSure ® PST
Specifications
Model Number PA350-120U PA500-120U
POWER RATING VA/W 350VA/225W 500VA/300W
DIMENSIONS: in. (mm)
Unit
6.6 x 9.8 x 3.7
W x D x H (168 x 250 x 95)
WEIGHT: lbs (kg)
Unit 11.7 (5.3) 13.5 (6.1)
INPUT AC PARAMETERS
Surge Protection 603J
Voltage Range Without 98VAC - 140VAC ±3VAC
Battery Operation
Input Power Cord 6.5 ft. (2m) attached, w/ NEMA 5-15 P
OUTPUT AC PARAMETERS
Output Receptacles (3) NEMA 5-15R (orange)
Battery backup + surge protection;
(2) NEMA 5-15R (black) Surge protection
Voltage (Battery mode) 120VAC ±8%
Waveform (Battery mode) Stepped Sinewave
Frequency 60Hz ±1Hz
PowerSure ® PST
Runtime Table
Typical Battery Backup Time 350VA 500VA
Pentium II w/15” Monitor 19 min. 25 min.
Pentium II w/17” Monitor 12 min. 18 min.
Pentium II w/21” Monitor 11 min. 15 min.
Pentium III w/15” Monitor 10 min. 14 min.
Pentium III w/17” Monitor 9 min. 13 min.
Pentium III w/21” Monitor 6 min. 9 min.
Pentium 4 w/15” Monitor 8 min. 11 min.
Pentium 4 w/17” Monitor 6 min. 9 min.
Pentium 4 w/21” Monitor – 6 min.
