1.4
FRONT PANEL
Your primary interaction with your new DVR will be through the Front Panel buttons and their
corresponding buttons on the included IR Remote Control. Take a moment to learn where the keys are as
the remainder of the manual will refer to them often.

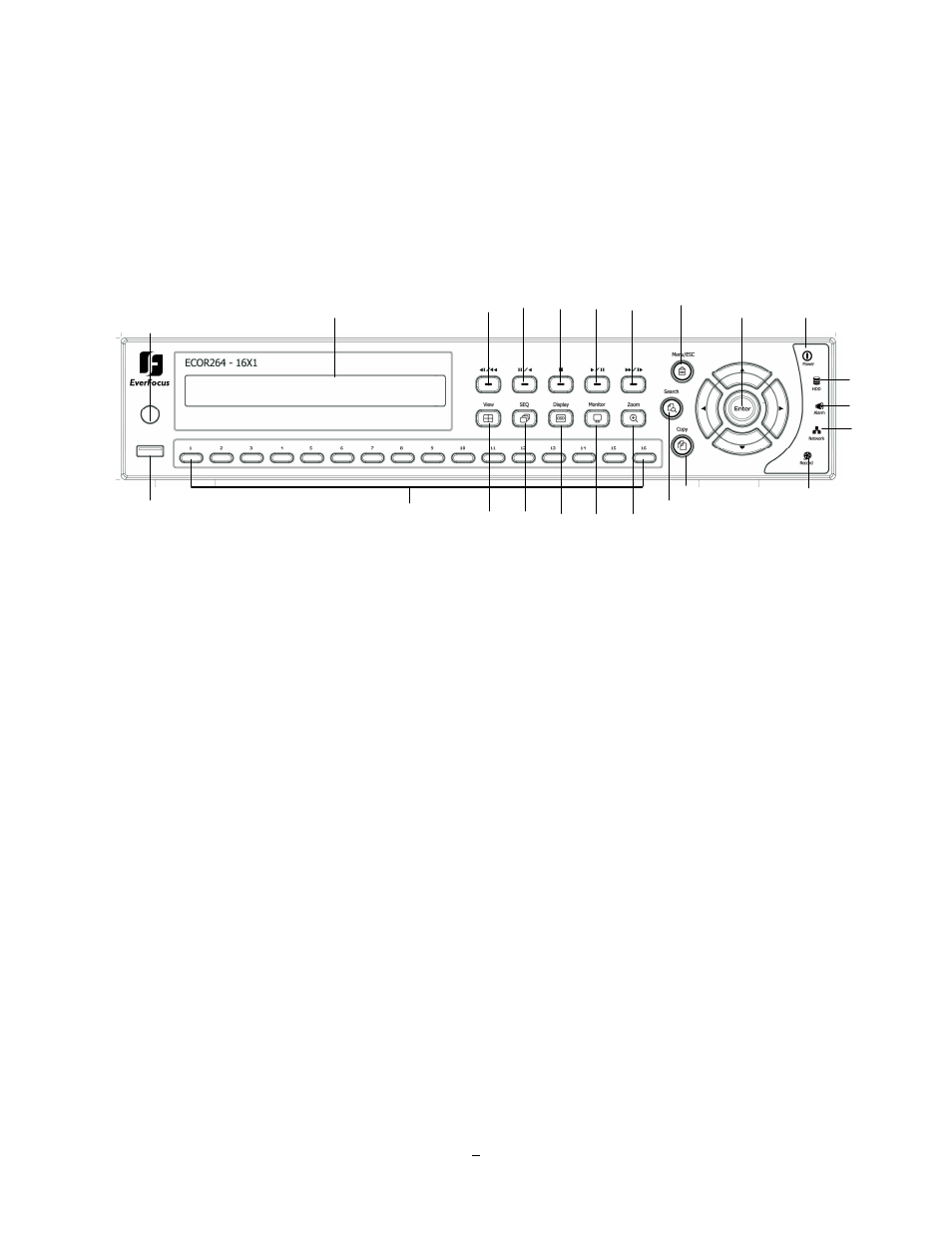

Figure 1-1 Front Panel
1)
Remote Control Receiver:
Receiver for IR remote control.
2)
USB 2.0 (front):
::: For connecting USB-Flash-Drive
to copy/archive video or for firmware upgrades.
3)
DVD+RW:
DVD+RW burner for DVD model. (D models only) (Replaced by hot swap drive on
“R” models).
4)
Channel keys 1~16 (1~9, 1~4): Press channel key (CH1~CH16) / (CH1~CH9) / (CH1~CH4) to display
that channel in full screen view.
5)
◄
I /◄◄:
Fast reverse playback or step reverse playback depending on playback mode.
6)
I I / ◄:
Reverse playback or pause
7)
■
Stop playback
8)
►/ I I:
Forward playback or pause
9)
►►/I►:
Fast Forward playback or step forward playback depending on playback mode.
○
