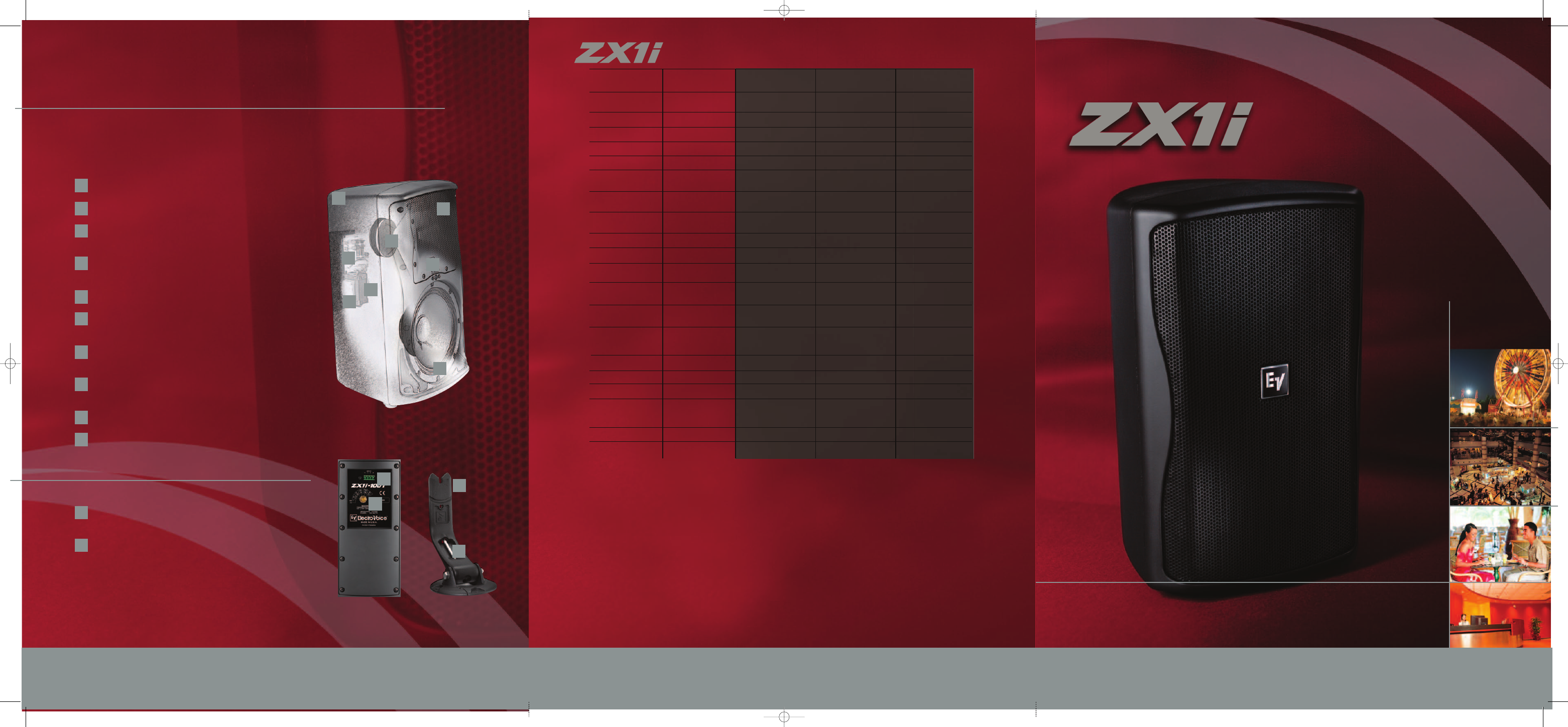

Electro-Voice ZX1-90 - Manual

ZX1-90
Portable Version
ZX1i-90
Fixed Install Version
ZX1i-100
Fixed Install Version
ZX1i-100t
70v/100v Version
Frequency Response (1)
(-3 dB)
60 Hz - 20 kHz 60 Hz - 20 kHz 60 Hz - 20 kHz 60 Hz - 20 kHz
Frequency Range (1)
(-10 dB)
48 Hz - 20 kHz 48 Hz - 20 kHz 48 Hz - 20 kHz 48 Hz - 20 kHz
Axial Sensitivity (1) 94 dB (1W/1m) 94 dB (1W/1m) 92 dB (1W/1m) 92 dB (1W/1m)
System Power Handling
200W Continuous,
400W Program
200W Continuous,
400W Program
200W Continuous,
400W Program
200W Continuous,
400W Program
LF Transducer
EV8L, 8 in (203mm)
Driver
EV8L, 8 in (203mm)
Driver
EV8L, 8 in (203mm)
Driver
EV8L, 8 in (203mm)
Driver
HF Transducer
DH2005, 1 in. (25.4mm)
Exit Compression Driver
DH2005, 1 in. (25.4mm)
Exit Compression Driver
DH2005, 1 in. (25.4mm)
Exit Compression Driver
DH2005, 1 in. (25.4mm)
Exit Compression Driver
Overload Protection
Full protection
– all modes
Full protection
– all modes
Full protection
– all modes
Full protection
– all modes
Mounting System
Four M8 studs on
bottom of speaker
QuickSAM™ Heavy-Duty
Strong-Arm Mounting
Bracket
QuickSAM™ Heavy-Duty
Strong-Arm Mounting
Bracket
QuickSAM™ Heavy-Duty
Strong-Arm Mounting
Bracket
Dimensions (H x W x D)
17.75" x 11.12" x 10.35"
451mm x 282mm x
263mm
17.75" x 11.12" x 10.35"
451mm x 282mm x
263mm
17.75" x 11.12" x 10.35"
451mm x 282mm x
263mm
17.75" x 11.12" x 10.35"
451mm x 282mm x
263mm
Shipping Weight 10.2 kg (22.5 lbs) 10.2 kg (22.5 lbs) 10.2 kg (22.5 lbs) 12.3 kg (27.0 lbs)
(1) Half-space measurements
Maximum Calculated SPL 125 dB 125 dB 121 dB 121 dB
Horizontal Coverage 90° or 50° 90° or 50° 100° 100°
Vertical Coverage 100° 100° 50° or 90° 50° or 90°
Pole Mount Included N/A N/A N/A
Nominal Impedance 8 Ohms 8 Ohms 8 Ohms 8 Ohms
Transformer Taps
6.5, 12.5, 25, 50, 100
watts 70/100v
N/A N/A N/A
Built-In Monitor Angle Yes No No No
Available Colors Black Black/White Black/White Black/White
Included Accessories QuickSAM™ Mount QuickSAM™ Mount QuickSAM™ Mount None
Net Weight 8.4 kg (18.5 lbs) 8.4 kg (18.5 lbs) 8.4 kg (18.5 lbs) 10.4 kg (23.0 lbs)
Connectors
4-Pin detachable
Phoenix style
4-Pin detachable
Phoenix style
4-Pin detachable
Phoenix style
Two NL4 Connectors
Compact | High Performance | Versatile
Indoor/Outdoor Surface Mount Speaker System
H i g h P e r f o r m a n c e S y s t e m C o m p o n e n t s
With True Compression High Frequency Driver
The ZX1i’s long excursion, high output EV8L 8” woofer with a weatherized treated
cone delivers smooth low frequency performance with exceptional reliability. A
sophisticated crossover network integrates it with the DH2005, a 1-inch voice coil
true compression driver with extended frequency response. The system also features
full overload protection for reliable, long term operation.
EV8L high performance weatherized 8” woofer
DH2005 1” true compression driver
Rotatable waveguide allows for speaker orientation in
either direction
Weatherized multi layer grille gives protection
indoors or out
Low loss crossover network for high efficiency
Full system overload protection circuitry ensures
reliable operation
Easy to access “keyed” adjustment points for
horizontal and vertical settings
“Click n’ Mount” QuickSAM™ mounting system provides
wide range of motion for flexibility in placement
One piece lightweight enclosure is extremely durable
High capacity 100w transformer with ASC™ eliminates
distortion and saturation at high volume levels
4 pin detachable Phoenix-style connector provides pass
thru terminals for easy system wiring
Easy to access wattage tap selector switch on “t” models
provides a wide range of power settings
1
2
3
4
5
6
7
8
9
10
11
12
11
12
A v a i l a b l e A c c e s s o r i e s
TC-ZX1– The TC-ZX1 terminal cover with Glan nut attaches to the rear input panel and seals the rear connectors against
moisture and contamination.
AB-ZX1– The AB-ZX array bracket system provides a flexible array mounting solution for 2 or 4 ZX1i speaker systems.
1
2
3
4
5
6
9
10
7
8
