Exmark Lazer Z Advantage Series - Manual (Page 14)

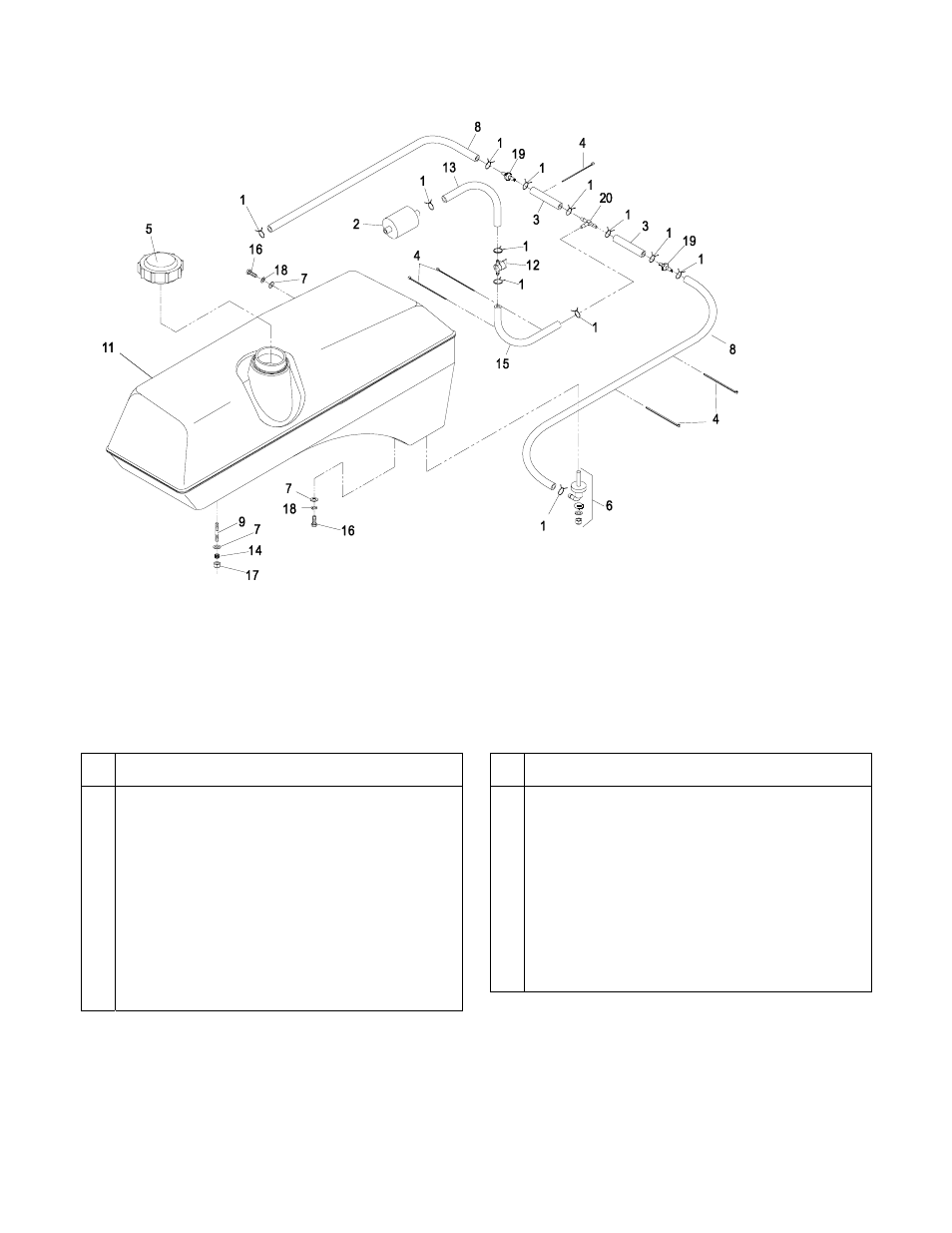

FUEL GROUP
-13-
Item
Part No.
Description
Qty.
1 1-303077 Clamp, Fuel Line....................................12
2 Kohler Part No. 2405010 Fuel Filter ..................1
Kawasaki Part No. 49019-7001 Fuel Filter .............1
3 103-0304 Hose, Fuel Line 2 1/2”............................2
4 1-303335 Plastic Tie (Large)..................................5
5 109-0346 Cap, Fuel Tank ......................................2
6O 103-2605 Fitting, Fuel Blkhd W/Screen..................2
103-2784 O-Ring ...................................................2
7 3256-23 Washer, 5/16 SAE..................................10
8 108-4582 Hose, Fuel Line 21"................................2
9X 1-633023 Stud, Fuel Tank......................................6
10
U7
103-2132 Asm, Tank Fuel (LH) ..............................1
Item
Part No.
Description
Qty.
117 103-2133 Asm, Tank Fuel (RH) ............................. 1
12 1-603770 Valve, Fuel............................................. 1
13 109-0660 Hose, Fuel Line 3 1/2" (Kohler) .............. 1
109-0293 Hose, Fuel Line 8 1/2” (Kawasaki) ......... 1
14 1-633349 Spring, Fuel Tank .................................. 6
15 109-0281 Hose, Fuel Line 26” ............................... 1
16 322-3 Screw, 5/16-18 x 3/4.............................. 4
17 3296-47 Nut, Thin Nyloc 5/16-18 ......................... 6
18 1-805005 Washer, Lock 5/16................................. 4
19 99-5000 Valve, Fuel Check.................................. 2
20 99-5005 Fitting, Barbed Tee ................................ 1
Refer to Engine Owner’s Manual (Fuel Filter Must be 15 Micron or smaller).
O Use Pro-lock, Nut type (Part No. 1-840022), .5ml tube on fuel fitting threads.
X Use Pro-lock, Retaining Type (Part No. 1-840023), .5cc tube on stud threads going into the tank.
7 Includes tank, cap, fitting & studs.
T Not illustrated.
