4
PRODUCT DIMENSIONS
OB24SDPT MODELS
INCHES MM
A Overall height of oven 23 9/16 598
B Overall width of oven 23 7/16 596
C Overall depth of oven (excluding handle and dials) 22 1/4 565
D Height of chassis 22 5/8” 575
E Width of chassis 21 7/8 556
F Depth of chassis 21 7/16 545
G Depth of oven frame and control panel (distance between front of chassis and
front of oven door, excl. handle and dials)
13/16 20
H Depth of oven door when fully open (measured from front of control panel) 18 1/8 460

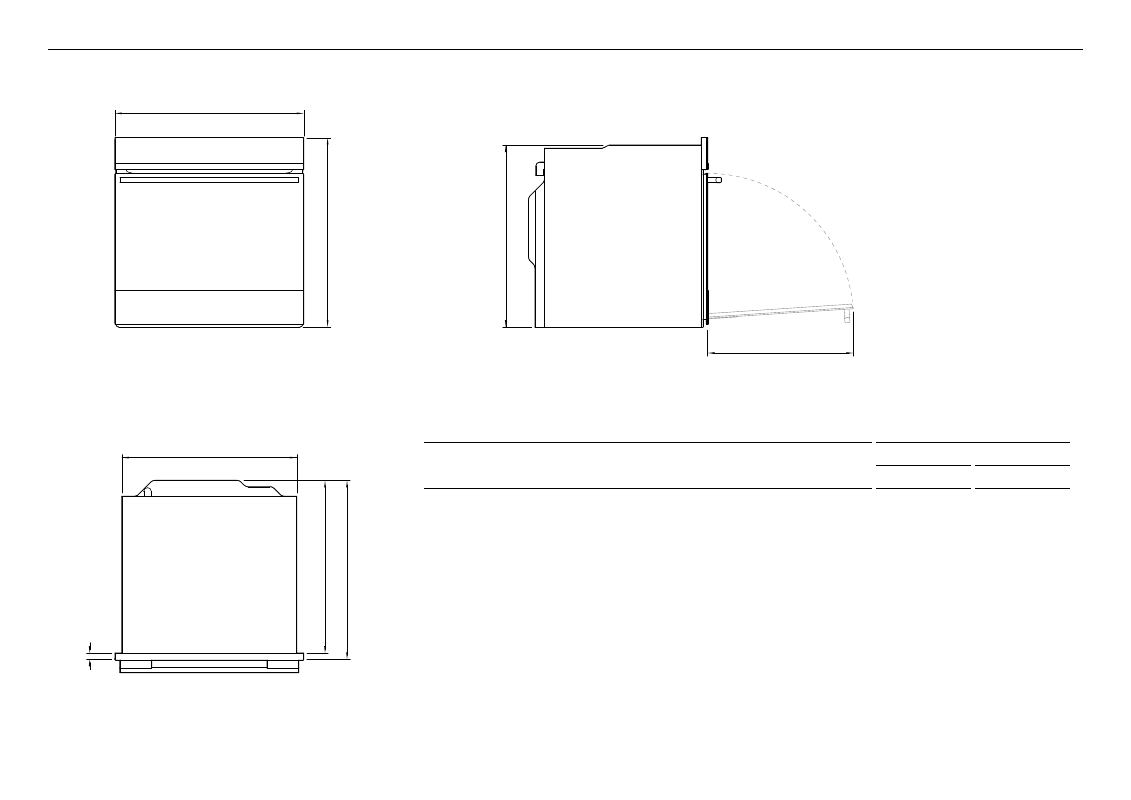

PRODUCT DIMENSIONS
a
c
f
g
d
b
e
h
FRONT
PLAN
PROFILE
