Installation

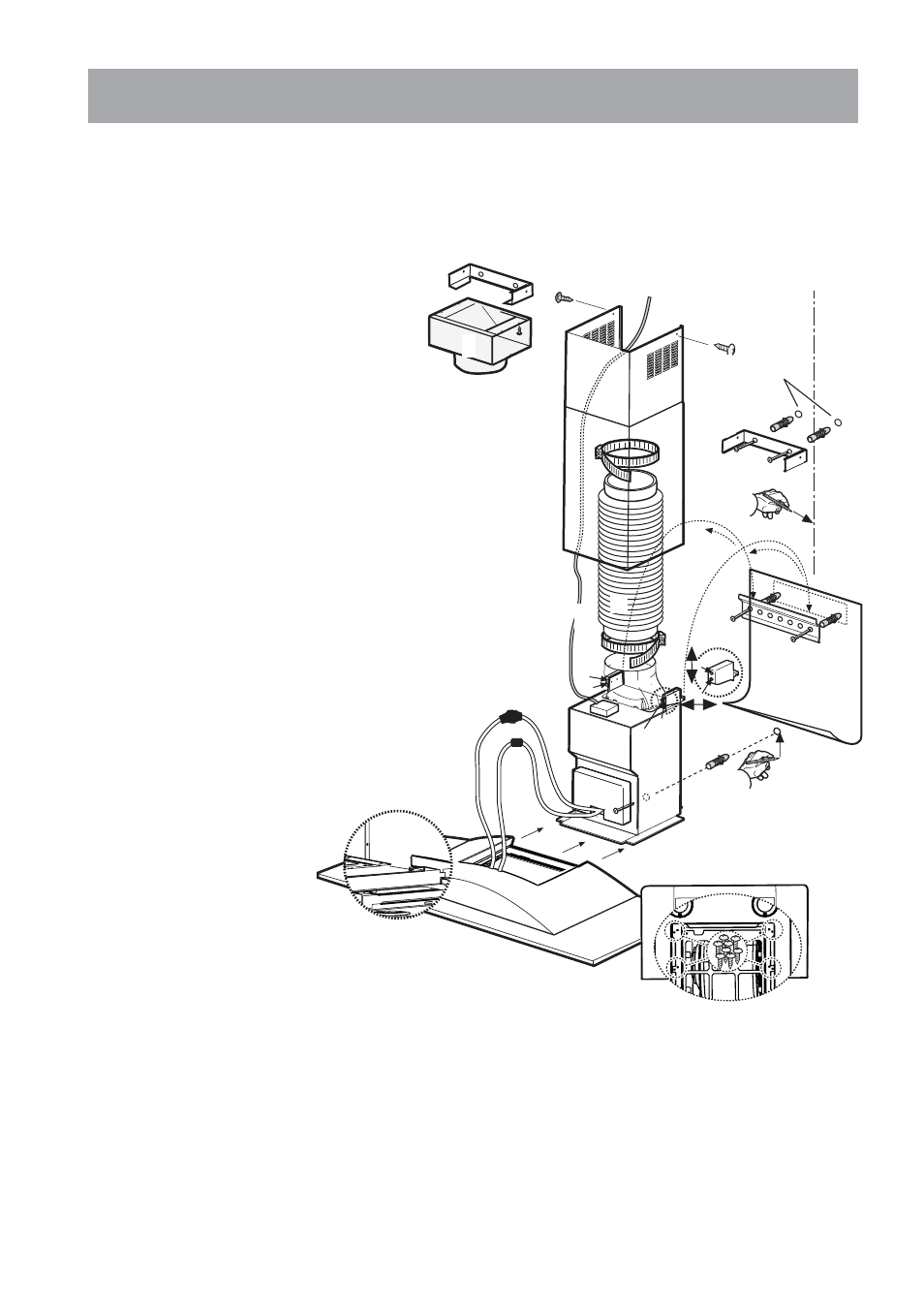

Wall unit mounting - Fig. 7

Disconnect the hood during electrical connection, by turning the home mains switch off.

Remove the 2 screws fitted inside the lower part of the hood at the points in which it is

fixed to the motor unit (see also operation 3).
Rest the motor unit on a flat

surface and thread the lower part

of the chimney section onto it (1).

Make all the electrical

connections between the two

parts (2).

Secure the two parts using 8

screws (3).

Mark the wall with a centre line, this

will aid the fixing procedure (4), position

the template so that the mid line printed on

the template matches with the centre line

previously marked, the lower side of the

template corresponds to the lower side of

the hood once installed (5).

Drill two holes Ø 8mm and fix the support

bracket with two wall plugs and screws

(6).

Hang the hood (7) adjust its position (8-9)

and from the inside of the hood mark one

point for final fixing (10), remove the hood

(11) and drill an hole Ø 8mm (12), fit a

wall plugs (13).

Drill two holes Ø 8mm on the upper side

close to the ceilling (14), fit two wall

plugs and fix the chimney support

with two screws (15).

Hang the hood again (16).

Fix it securely with a screw

(17). To simplify the

installation operation

remove the charcoal filter

frame.

If the hood is used in the

recirculation function, fix

the deflector F on the

chimney support G with 2

screws and fit an extraction

pipe (18 - not supplied) to connect deflector to the outlet hole D of the hood.

In case the hood is to be used in exhausting version, then the deflector must not be

mounted and fit an extraction pipe (18) to connect outlet hole D of the hood to the

outside.

Make the electrical connection (19), but leave the hood disconnected from the

household mains supply.

Fix the chimney (20a) to the chimney support (20b).

Slide down the lower section on the proper housing on top of the hood. Connect the hood

to the household mains supply and check that the hood works correctly.

Fig. 7
