Door reversal – Electrolux 241927600 User Manual
Page 11

11

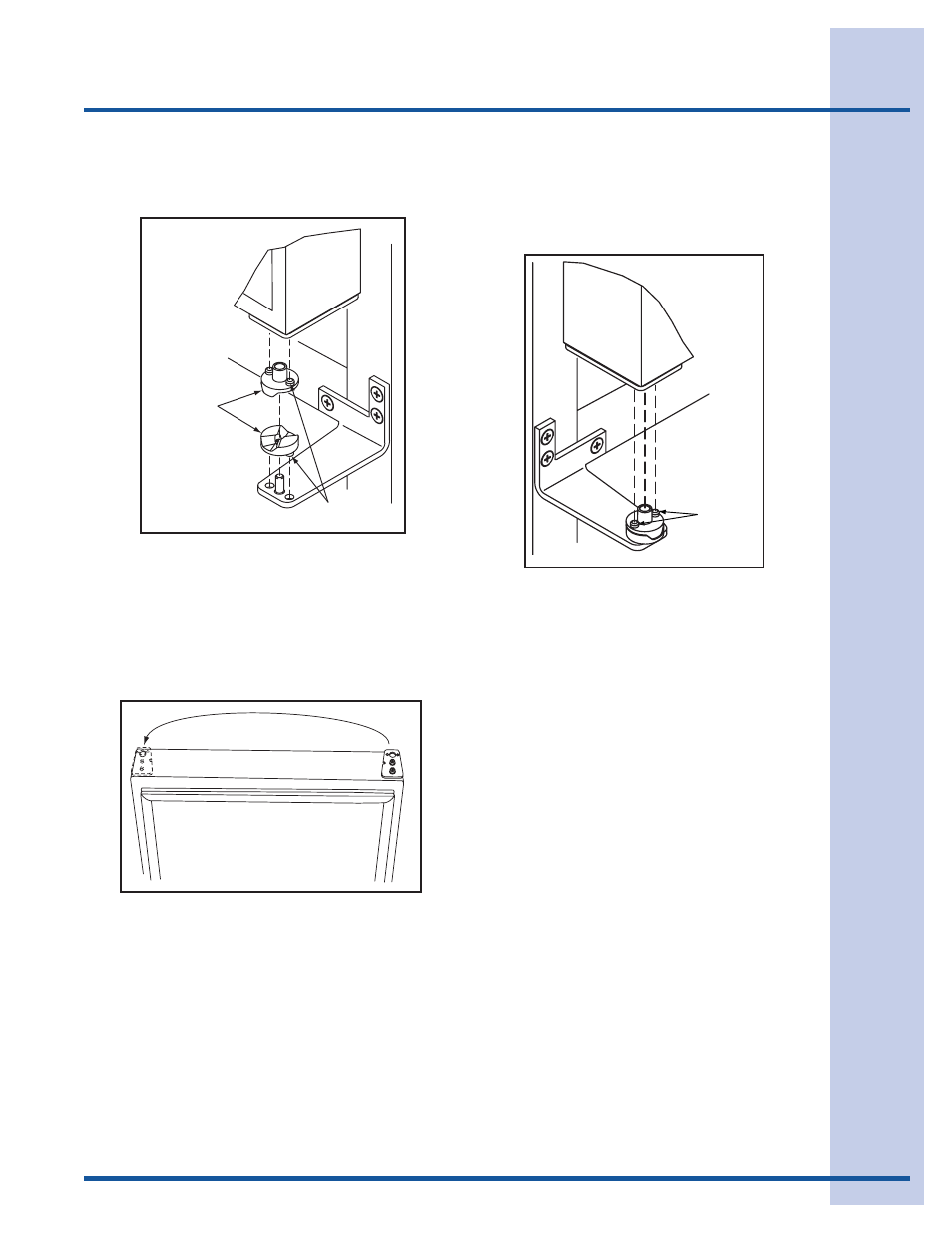

Door Reversal
UL312
DOOR
CLOSER
INSERTS
BOSS
UL319
BOSS
CLRCO008
4 Remove the two door closer inserts from the
existing bottom hinge and install as shown on
the new bottom hinge (see Figure 17).
Figure 17
5 Remove existing bottom hinge (3 screws)
and remount on opposite side TOP. Remove
hinge screw pin.
6 With bottom of door facing up, remove pivot
plate (2 screws), flip over, and remount on
opposite side of door (see Figure 18).
7 Holding door upright with top of door tilted
forward, place hole of door pivot plate on
bottom hinge screw pin (see Figure 19). Be
sure that the bosses on the closers align with
holes in hinge and hinge plate.
Figure 18
8 Tilt top of door into position in top hinge and
install top hinge screw pin.
9 In empty hinge holes, install plastic screw
plugs (3 top and 3 bottom) and door hole
plug (1,door top) removed in step 2.
Figure 19
