Door Reversal
Reversing the Door (some models)
Hole
Plug
All Electrolux units may be left or right hand
opening. The door opening is easily reversed by
moving the hinge hardware to the opposite side
(see Figure 12).
To reverse the door:
1 Remove top hinge screw pin from cabinet
using a Phillips
®
head screwdriver (see
Figure 13). Remove door by tilting forward
and lifting off bottom hinge pin.
UL308
SCREW
PLUGS
3 Remove top hinge (3 screws), reinstall hinge
screw pin, and remount on opposite side
BOTTOM (see Figure 16).
UL313
HINGE
SCREW
PIN

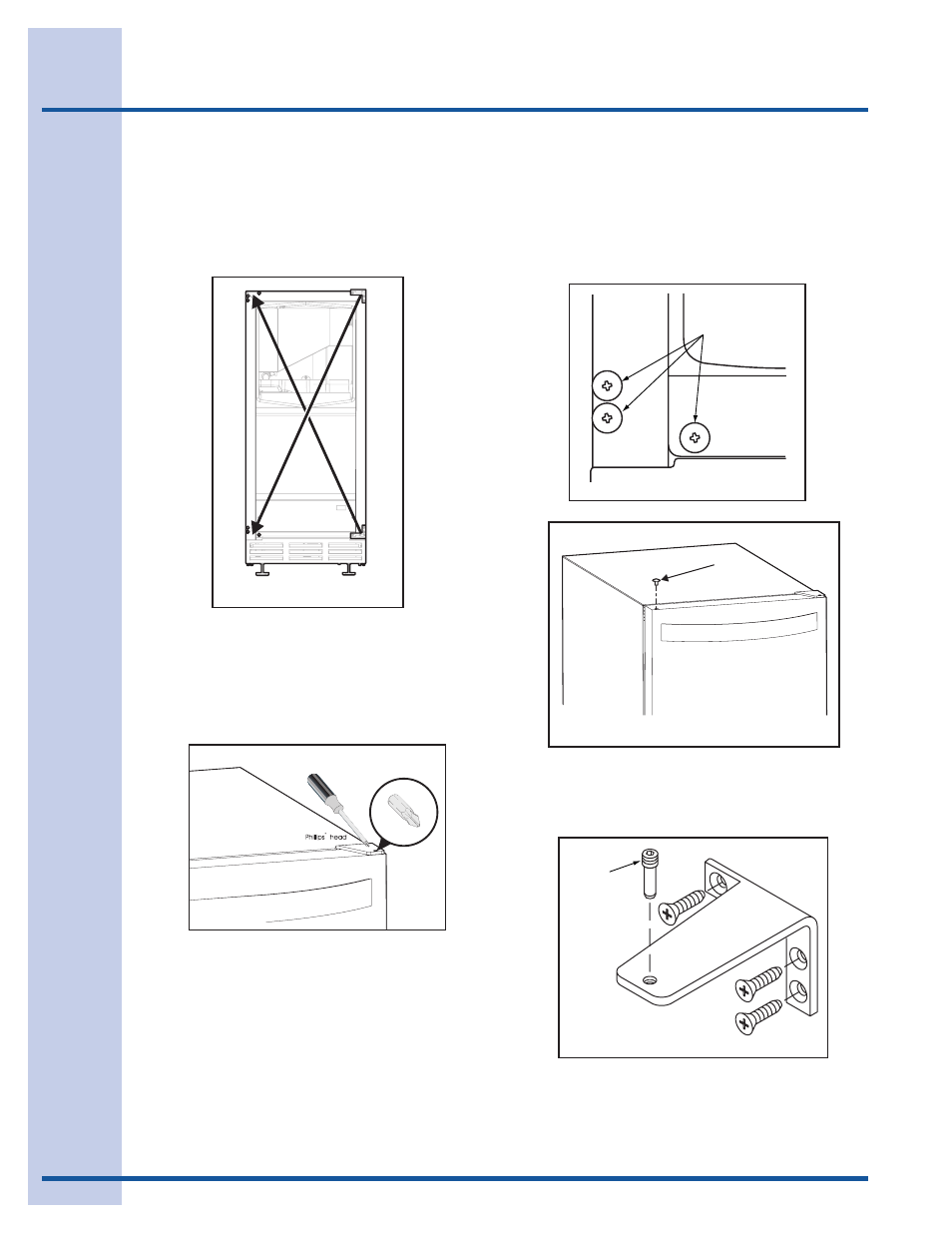

Figure 12
2 Remove plastic screw plugs (3 top and 3
bottom) from new hinge location (see Figure
14), and remove hinge pin hole plug in top of
door (see Figure 15). Do not discard.
Figure 13
Figure 14
Figure 15
Figure 16
