Regulator Conversion
LP
Orientation
NAT
LP
Natural
Orientation
NAT
LP
Apply sideways finger pressure
to remove pin from cap.
NAT
LP
conversion
conversion
•Remove hex nut from top of regulator.
•Unsnap plastic plunger from hex nut.
• Reverse plunger and reinstall onto hex nut by
pressing fi rmly.
NOTE: Plunger is marked “NAT” or “LP”.
Converted fuel type will be shown on the lower
portion of plunger.
• Reinstall hex nut onto regulator in confi guration
desired.

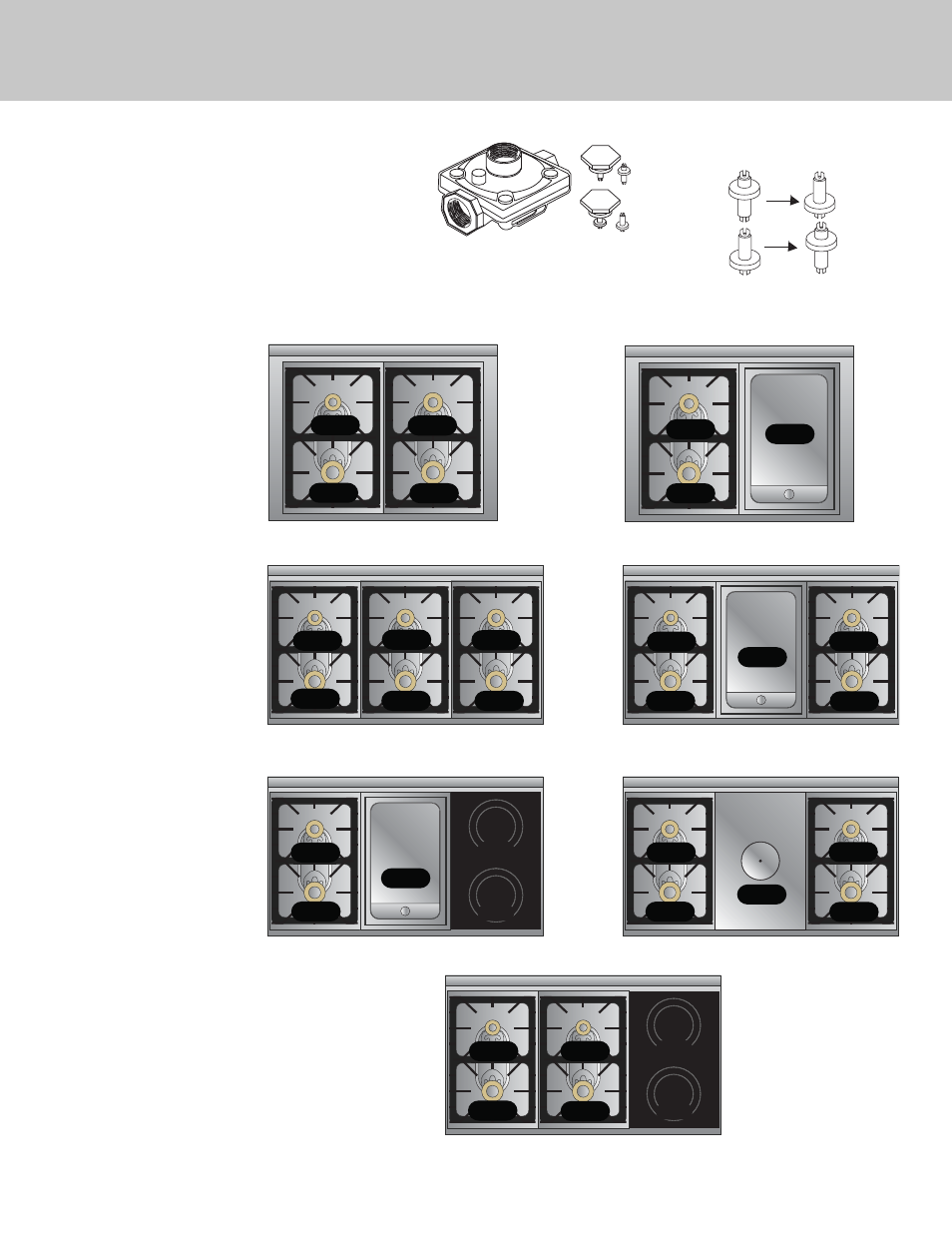

Orifi ce
Locations
7,700 LP
(2.5kW)
36” W /4 Surface Burners 36” W /2 Surface Burners/Griddle
48” W /6 Surface Burners 48” W /4 Surface Burners/Griddle
48” W /2 Surface Burners/Griddle/Induction 48” W /4 Surface Burners/French Top
48” W /4 Surface Burners/Induction
12,500 LP
(4.0 kW
18,500 LP
(6.0 kW)
N/A
10,000 Nat/
10,000 LP
8,500 Nat/
7,700 LP
13,500 Nat/
12,500 LP
N/A
N/A
N/A
N/A
N/A
N/A
B
B B
B B
B
C C
C C C
C
C
F
D D D
D D D D D
D D D
D D
