EverFocus EHD320 User Manual

Page 8

3. Mounting the base.

Attach the base to the wall or ceiling, fix the base by the 4 setscrews

attached in the accessory pack. The dome is weighted 1.7kg, please make

sure if the mounting is strengthened enough to support it, if not,

please reinforce the mounting according to the environment.

Note: The diameter of the screw hole isψ4.7mm.

Caution: To prevent moisture leaking into the housing, apply an

appropriate gasket or sealant around the conduit connection.

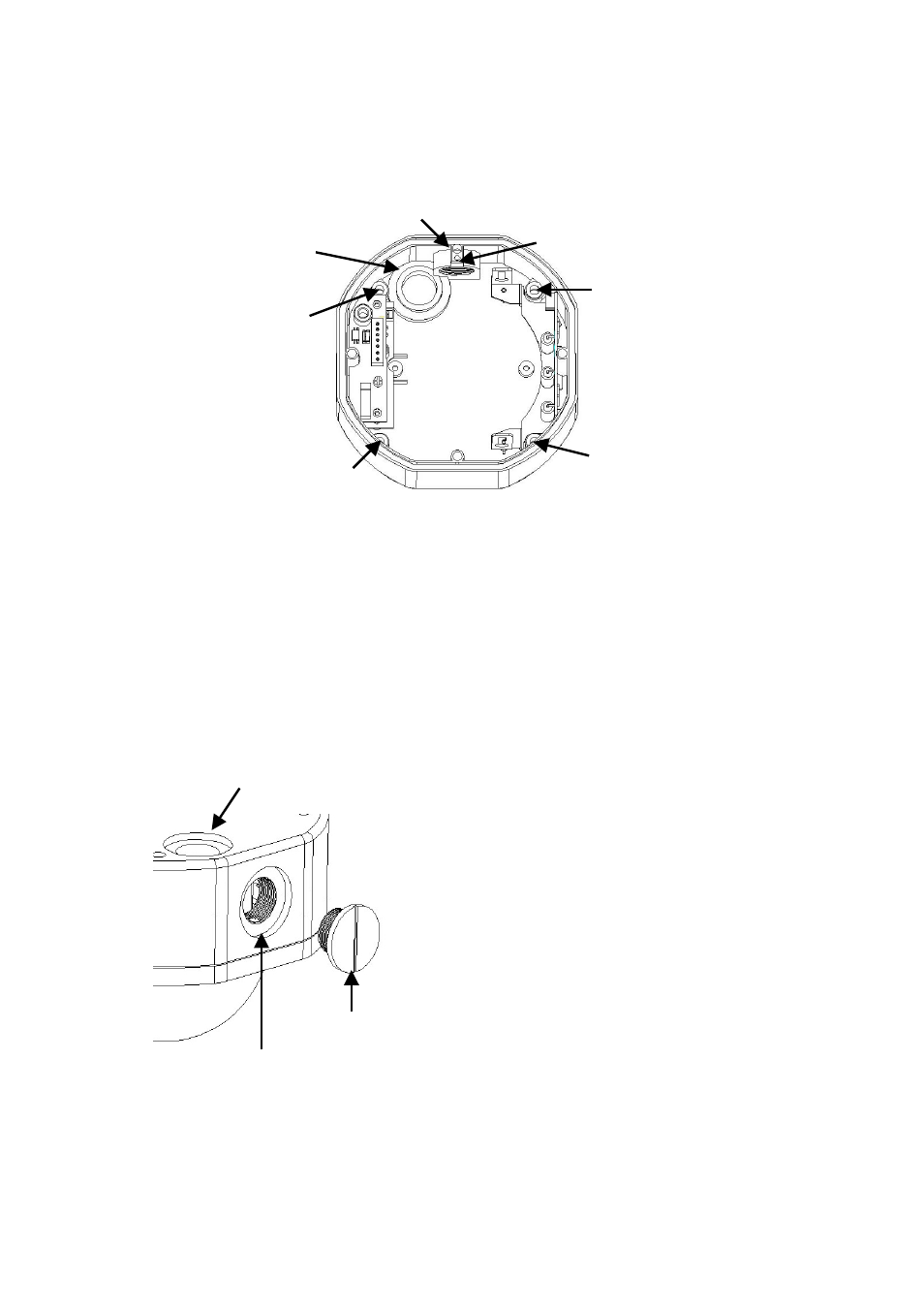

Side conduit entry

Figure 4

Mounting Setscrew

Back conduit entry

Conduit plug setscrew

Mounting Setscrew

Back conduit entry (PF1/2)

Conduit plug

The camera comes with a conduit plug

pre-installed in the PF 1/2 conduit entry

on the side. The screw can be removed

and installed in the back conduit entry.

Loosen the conduit plug setscrew (as

shown in Figure 5) before removing the

conduit plug.

Side conduit entry (PF1/2)

Figure 5
