Escort 432 User Manual

Page 2

Cleaning and General Maintenance

Connection

Speciﬁcations and Service

SPECIFICATIONS

Monitor

LCD proﬁle widescreen ratio .............................................................4:3

Wide view angle (CR) ..........20/50 (up/down), 40/40 (left/right)

Resolution ........................................................................230x400 pixels

Brightness (cd/m2) ............................................................................... 250

Contrast ratio .......................................................................................... 300

Response time (ms) (at 25°C) ...............................................................20

Power requirement ........... 12VDC, with control box (12/24VDC)

Power consumption ........................................................................... ≤2W

Operating temperature range ................................... -20°C to +70°C

Storage temperature range ........................................-30°C to +80°C

Dimensions (mm) ............................................. 95 (L) x 75 (W) x 16 (D)

Weight (approx.) (gm) ............................................................................80

SERVICE

To obtain service: Contact ESCORT (800-543-1608) to obtain a Return Authorization

Number. Properly pack your product and include: your name, complete return address,

written description of the problem with your product, daytime telephone number,

and a copy of the original purchase receipt. Label the outside of the package clearly

with your Return Authorization number. Ship the product prepaid (insured for your

protection) to: ESCORT Inc., 5440 West Chester Road, West Chester, OH 45069.

Out-of-warranty repairs:

For out-of-warranty repairs, include prepayment in the amount you were quoted by

the ESCORT Customer Service Representative. If your SmartSite Mini has been

damaged, abused, or modiﬁed, the repair cost will be calculated on a parts-and-labor

basis. If it exceeds the basic repair charge, you will be contacted with an estimate. If the

additional payment is not received within 30 days (or if you notify us that you do not

wish to have your SmartSite Mini repaired at the price quoted), the unit will be

returned without repair. Payment can be made by check, money order, or credit card.

ESCORT Inc.

5440 West Chester Road

800.433.3487

West Chester OH 45069

www.EscortInc.com

Features, speciﬁcations and prices subject to change without notice.

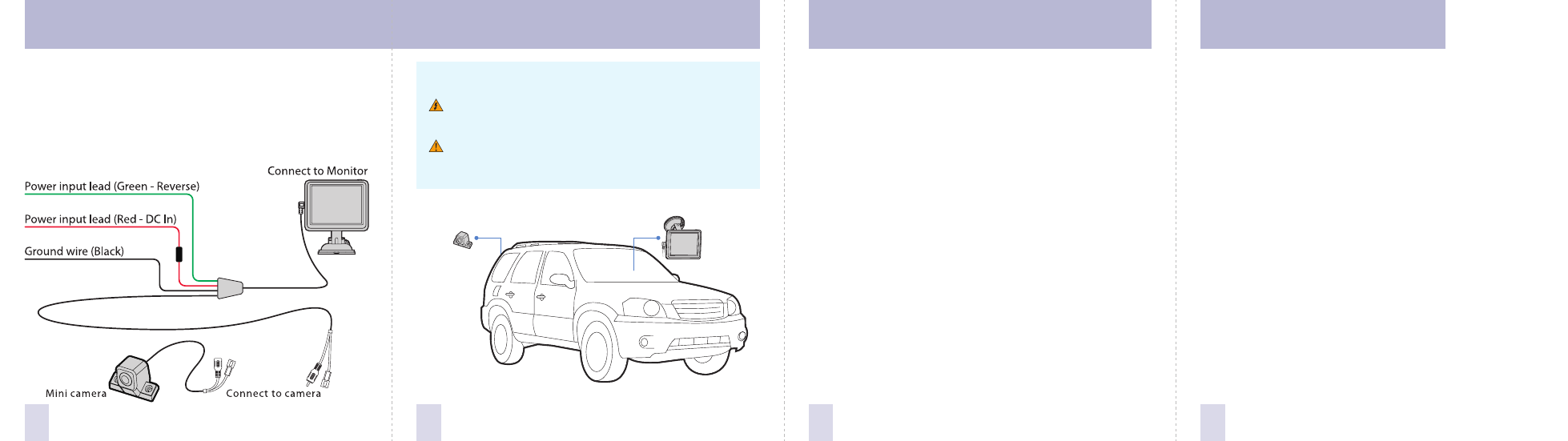

Wiring Diagram

•

Connect the

RED

wire to the 12V or 24V DC power terminal which

is energized with the ignition key in the accessory position.

•

Connect the

BLACK wire to a suitable negative connection point

on the vehicle.

•

Connect the

GREEN

wire to the switched power output terminal

of the “R” (reverse) gear. Trigger is always in priority.

CAUTION:

Before making connections, disconnect the ground

terminal of the car battery to avoid a short circuit.

The plugs should be fully inserted into the connectors or

jacks. A loose connection may cause malfunctioning of the

unit.

If your vehicle has been parked in direct sun light resulting in a

considerable rise in temperature inside the vehicle, allow the unit to

cool oﬀ before operating. Clean the unit with a slightly damp soft

cloth. Use a mild household detergent. Never use strong solvents

such as thinner or benzine as they might damage the ﬁnish of the

unit.

Cleaning

Unplug or power oﬀ before cleaning. Do not use liquid cleaners or

aerosol cleaners. Use a damp cloth for cleaning.

Ventilation

Holes in the housing and the back or bottom are provided for

ventilation, and to ensure reliable operation of the monitor

equipment for protection from overheating. These holes must not

be blocked or covered.

Object and Liquid Entry

Never push objects of any kind into the monitor equipment through

holes as they may touch dangerous voltage points or short-out

parts that could result in a ﬁre or electric shock. Never spill liquid of

any kind.

Servicing

Do not attempt to service this system by yourself as opening or

removing covers may expose you to dangerous voltage or other

hazards. Refer all servicing to qualiﬁed service personnel.
