EVO1 MOTORIZED TREADMILL
Visit us at: www.evofitness.com
15
ASSEMBLY

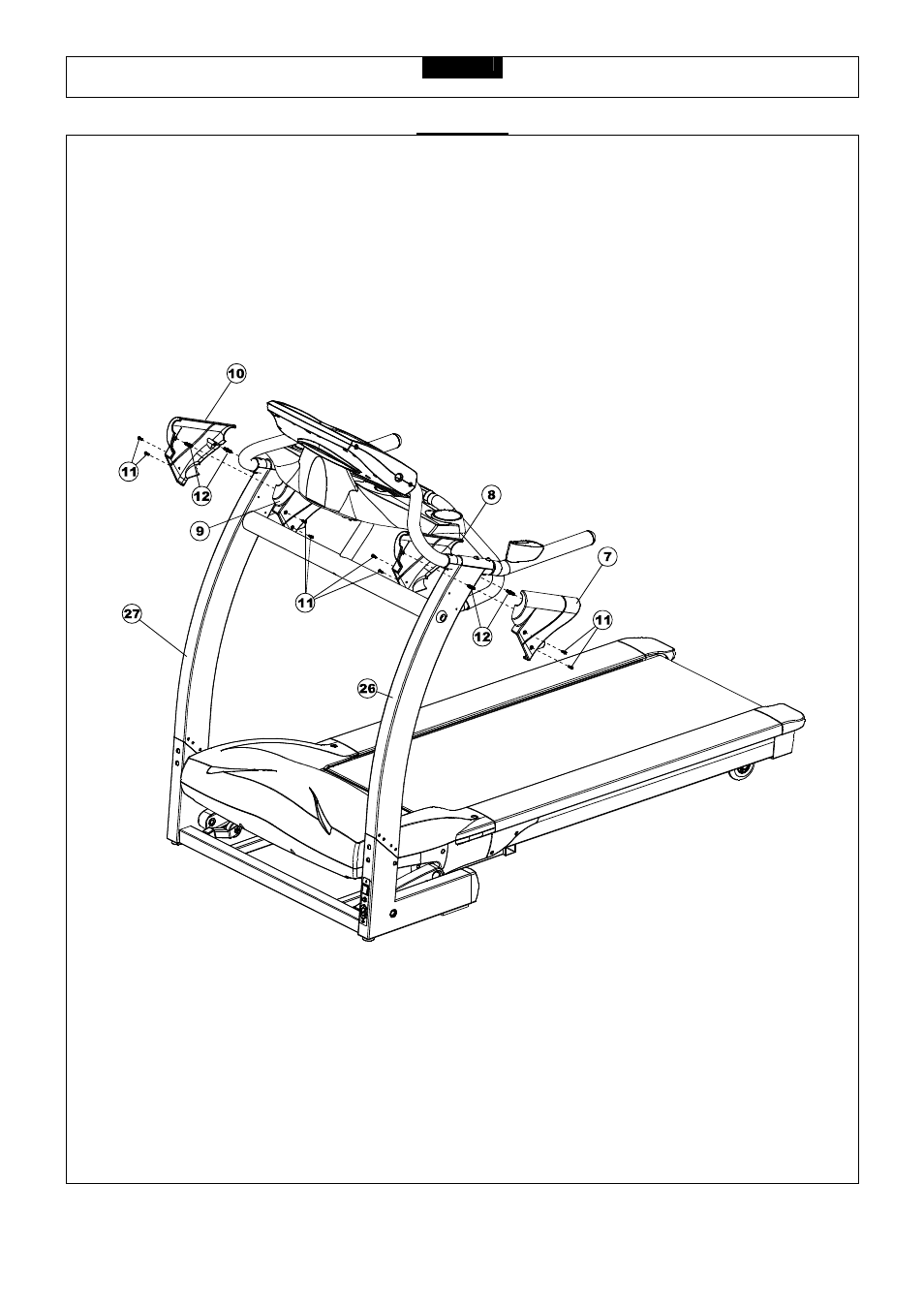

STEP 6:
Attach the
Left # 1
Handlebar Rear End Cap
(7) and
Left # 2
Handlebar Rear End Cap
(8) to the Left Upright (26) using two
Plastic Fixing Inserts
(12) and four #8 x 12mm Screws (11).
Attach the
Right # 2
Handlebar Rear End Cap
(9) and
Right
# 1
Handlebar Rear End Cap
(10) to the Right Upright (27) using
two Plastic Fixing Inserts (12) and four #8 x 12mm Screws (11).
