Main unit connections
Front line-out terminals
Connect to the RCA connector of an external amplifier.
Rear line-out terminals
Connect to the RCA connector of an external amplifier.
Line-out terminals (Non fader)
This is used for non fader output. It can be used as a sub-woofer terminal if a separate amplifier with
a low bass filter is connected.
E-LAN terminal (13P)
Connect to the E-LAN terminal of the CD changer, etc.
A
B
C
D
Vehicle component adapter wires
Vehicle harness
From main unit

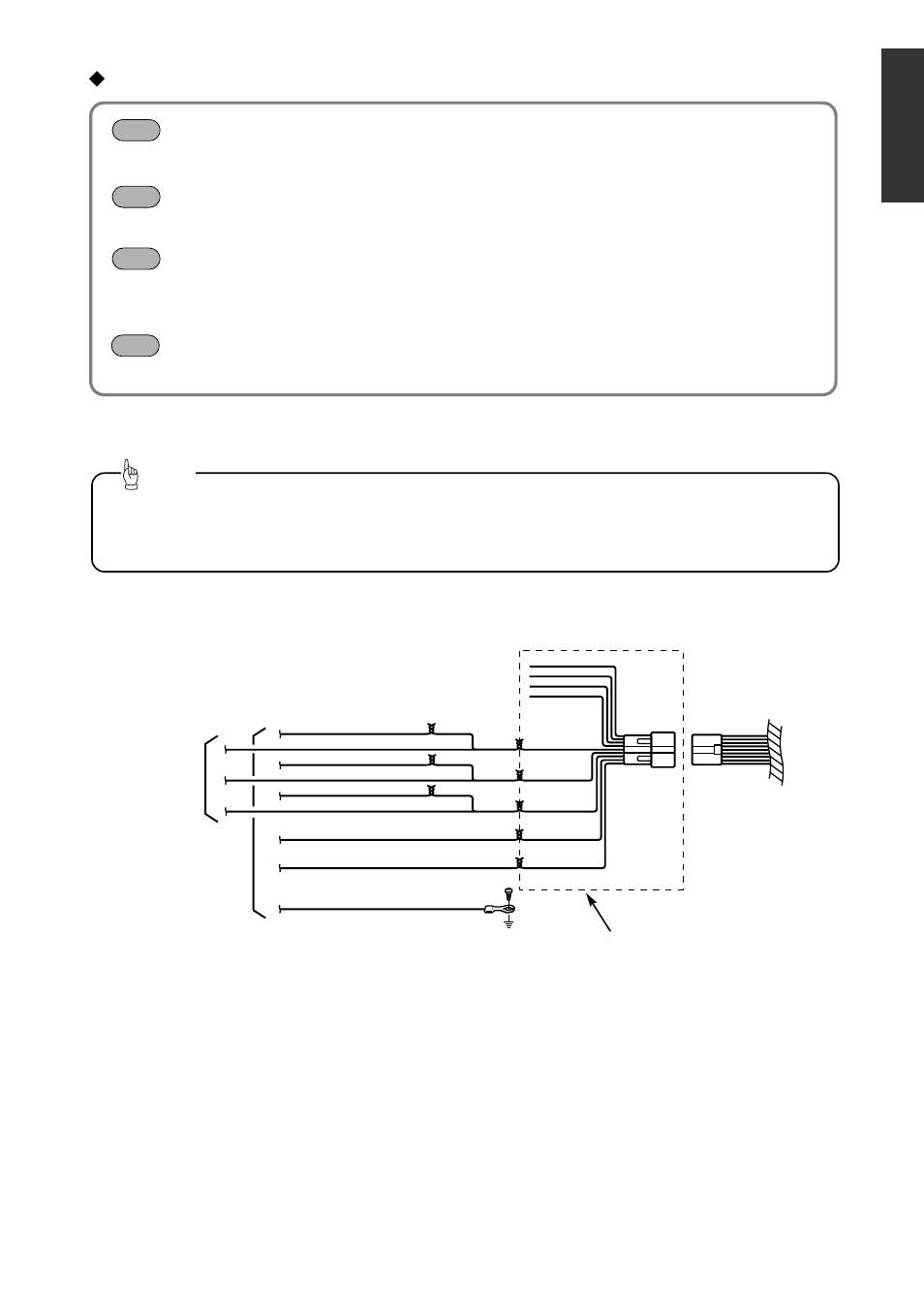

- Example of using vehicle adapter wires -
- Vehicle connections -
•
•
You will need to purchase the necessary vehicle component adapter wire for the vehicle so that the
power supplies can be utilized. (Contact the dealer for further details.)
•
•
Be sure to wrap the connection wires with electrical tape or another insulation method to insulate them.
Tip
Power supplies
for combined
equipment
