Premium power protection is now easier
than ever.
With raised-floor real estate at a premium, you’ll appreciate
that the 9155 requires only three to six square feet of floor
space, including internal batteries. Such a small footprint
gives you more location options and more space available
for future expansion.
Equipment installation is inexpensive and easy – essentially
plug-and-play. You can order 9155 models with your choice
of more than 19 types of output receptacles. To rearrange
or add data center equipment, you simply unplug from the
old receptacle and plug into a new one – no need for an
electrician to run new conduit and wiring.
Scalable architecture meets current and
future load requirements.
Eaton 9155 UPSs are available in four models: 8, 10, 12
and 15 kVA, so you can choose the configuration that most
closely meets your own capacity requirements and price
point. And you can scale from there. Using our signature
Hot Sync paralleling technology, up to three 9155 modules
can be paralleled for extra capacity or redundancy. A 15
kVA UPS, for example, can grow to support loads of up to
45 kVA. There's no dependence on communications wiring
among these modules, enhancing reliability and simplifying
installation. This paralleling capability Is far more easily
achieved than is the case with competitors' products.

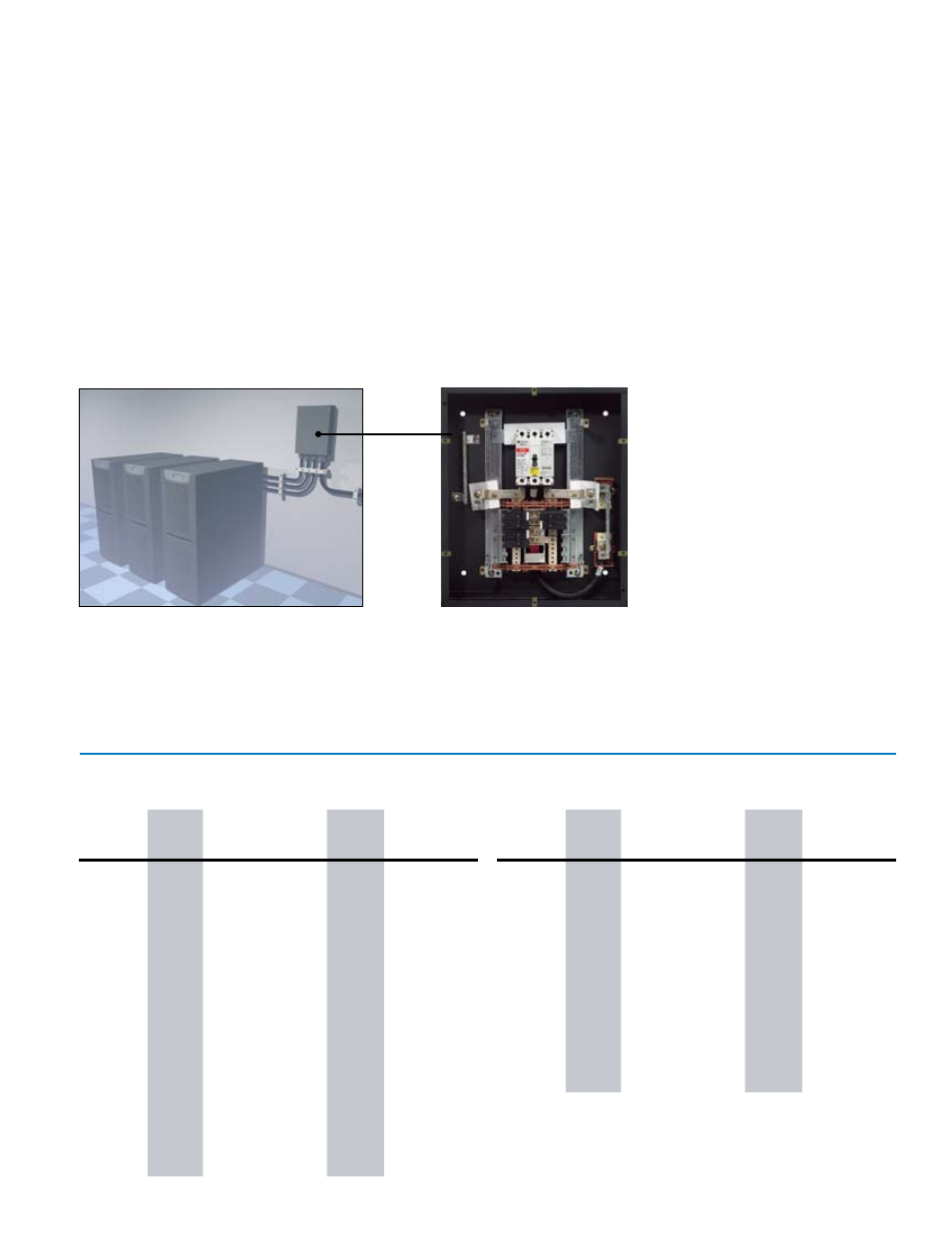

9155 UPS Parallel Cabinet
Inside view of 9155 Parallel
Cabinet Maintenance Bypass
Load
Powerware Hot Sync Redundant/Capacity
Battery innovations optimize battery performance and service life.
Standard internal batteries provide power until auxiliary power takes over or systems
are gracefully shut down. Battery runtime can be extended to hours by adding matching
Extended Battery Modules (EBM).
www.eaton.com/9155 1.800.356.5794 3
Eaton 9155 8-15 kVA UPS Backup Times (In Minutes)
VA Watt
UPS
+ Internal
32 Battery
(1)
EBM
64
(2)
EBM
64
(3)
EBM
64
(4)
EBM
64
UPS
+ Internal
64 Battery
(1)
EBM
96
(2)
EBM
96
(3)
EBM
96
15000 13500 4.6 23.0 43.0 65.1 88.6 13.3 43.0 76.7 113
14500 13050 4.9 24.1 45.2 68.3 93.0 14.1 45.2 80.5 119
14000 12600 5.2 25.2 47.3 71.5 97.4 14.9 47.3 84.2 125
13500 12150 5.5 26.4 49.4 74.7 102 15.8 49.4 88.1 130
13000 11700 5.8 27.6 51.6 78.1 106 16.7 51.6 92.0 136
12500 11250 6.1 28.8 54.0 81.6 111 17.6 54.0 96.2 142
12000 10800 6.5 30.2 56.5 85.5 116 18.6 56.5 101 149
11500 10350 6.9 31.6 59.3 89.7 122 19.2 59.3 106 156
11000 9900 7.3 33.3 62.4 94.4 129 20.2 62.4 111 164
10500 9450 7.8 35.1 65.9 99.6 136 21.4 65.9 117 174
10000 9000 8.4 37.2 69.8 106 144 22.6 69.8 124 184
9500 8550 9.1 39.6 74.2 112 153 24.1 74.2 132 196
9000 8100 9.9 42.3 79.4 120 163 25.7 79.4 141 209
8500 7650 10.8 45.5 85.2 129 175 27.6 85.2 152 225
8000 7200 11.9 49.1 91.9 139 189 29.8 91.9 164 242
Eaton 9155 8-15 kVA UPS Backup Times (In Minutes)
VA Watt
UPS
+ Internal
32 Battery
(1)
EBM
64
(2)
EBM
64
(3)
EBM
64
(4)
EBM
64
UPS
+ Internal
64 Battery
(1)
EBM
96
(2)
EBM
96
(3)
EBM
96
7500 6750 13.1 53.2 99.7 151 205 32.3 99.7 178 263
7000 6300 14.6 58.0 109 164 224 35.2 109 194 286
6500 5850 16.3 63.5 119 180 245 38.6 119 212 314
6000 5400 18.4 70.0 131 198 270 42.5 131 234 346
5500 4950 20.1 77.6 145 220 300 47.2 145 259 383
5000 4500 22.4 86.6 162 245 334 52.6 162 289 428
4500 4050 25.2 97.4 182 276 376 59.2 182 325 -
4000 3600 28.6 110 207 313 426 67.1 207 369 -
3500 3150 32.8 127 238 359 - 77.0 238 423 -
3000 2700 38.3 148 277 418 - 89.7 277 - -
2500 2250 45.6 176 329 - - 107 329 - -
Note: Backup times are approximate and may vary with equipment, configuration, battery age,
temperature, etc.
