Elkay CHSP1716LRSSACMC - Manual (Page 2)

Hand Wash-Up Sink with Side Splashes,
Sensor Faucet and Pedestal – AC or Battery Powered
Models CHSP1716LRSSAC and
CHSP1716LRSSB Series
®

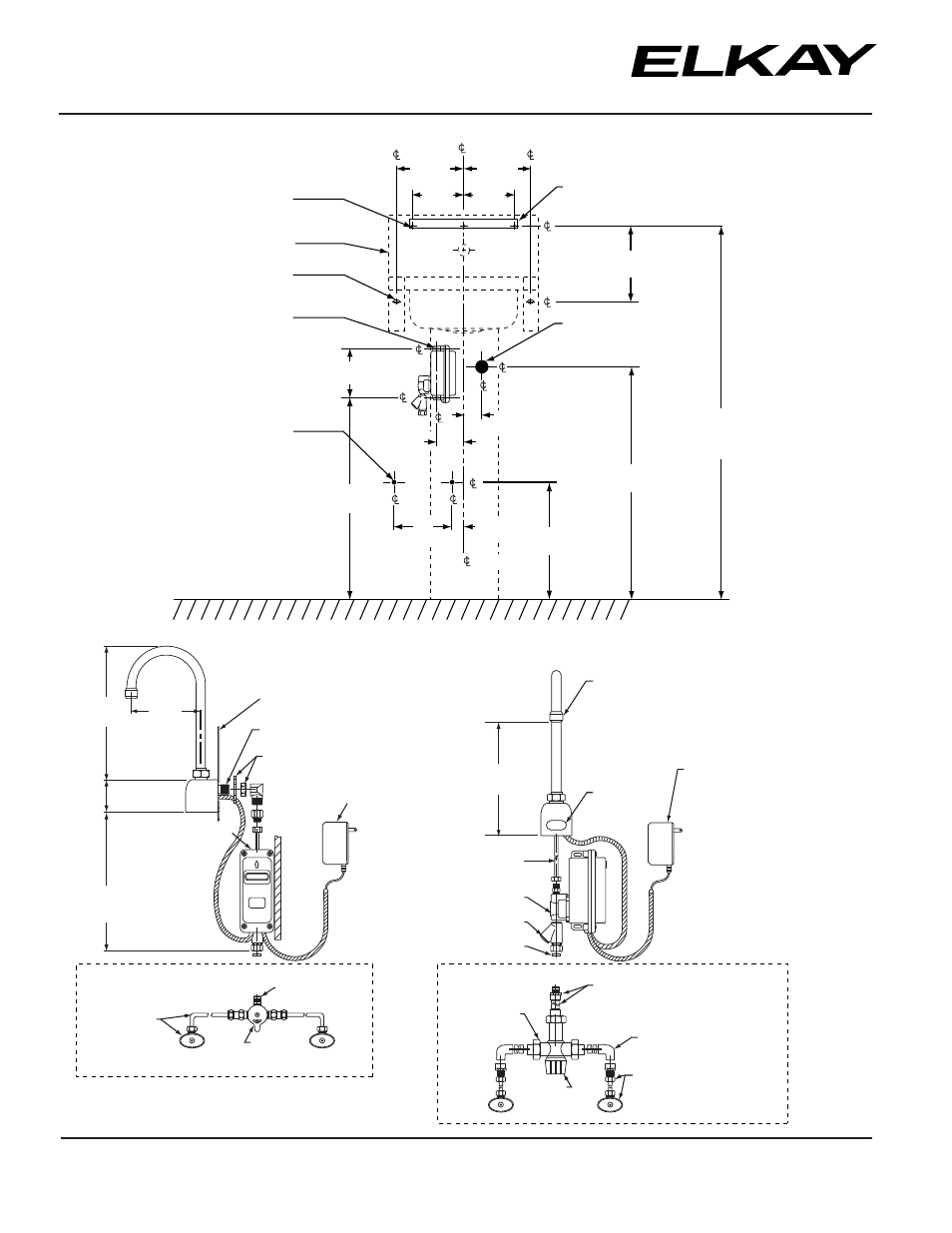

ROUGH-IN DIMENSIONS
13-1/8"
(333mm)
7"
(177mm)
1/2" (13mm) IPS SUPPLY INLET
(2 PLACES)
SINK
SINK
5/8"
(15mm)
2-1/2"
(63mm)
2"
(51mm)
8-1/2"
(216mm)
5-7/16"
(138mm)
41-3/4" (1061mm)
(PROVIDES 36" [914mm]
FINISHED FLOOR
TO RIM HEIGHT)
26"
(660mm)
22-9/16"
(573mm)
FINISHED FLOOR
WALL HANGER
1-1/2" (38mm)
IPS WASTE
7-1/2"
(191mm)
7-1/2"
(191mm)
5-3/4"
(146mm)
1/4" (6mm) DIA. HOLE
(3 PLACES)
OUTLINE OF SINK
3/8" (10mm) x 3/4" (19mm)
LONG SLOT (2 PLACES)
3/16" (5mm) x 5/8" (16mm)
LONG SLOT (2 PLACES)
5-3/4"
(146mm)
NOTE:
ALL FASTENERS
SUPPLIED BY OTHERS
Elkay 2222 Camden Court
Oak Brook, IL 60523
Printed in U.S.A.
©2003 Elkay
4-20 (10/03)
FOR CHSP1716LRSSACTMC AND CHSP1716LRSSBTMC FOR CHSP1716LRSSACMC AND
CHSP1716LRSSBMC
NOTE:
USE TEFLON TAPE FOR
ALL WATER CONNECTIONS.
DO NOT USE PIPE DOPE.
10-1/4"
(260mm)
5-3/8"
(137mm)
SINK
BACKSPLASH
MOUNTING
BOLT
AC POWERED
MODELS
MOUNTING
HARDWARE
2-1/2"
(64mm)
30"
(762mm)
MAX
SENSOR
3/8" (10mm) SUPPLY LINE
(NOT SUPPLIED)
SOLENOID VALVE
IN-LINE FILTER
NYLON WASHER
8-3/4"
(222mm)
LK728
12V PLUG-IN DC ADAPTER
W/20" (508mm) SHIELDED LINE
OUTLET LOCATION BY OTHERS
(POWER SUPPLY MUST BE
INSTALLED PER LOCAL CODES)
LK724 – MANUAL
MIXING VALVE
TEMP.
ADJUST
STOP VALVES,
FITTINGS &
3/8" (10mm)
SUPPLY LINES
(NOT SUPPLIED)
COMPRESSION TO SWEAT
ADAPTER 3/8" (10mm) x 1/2" (13mm)
(3-REQ’D) & 1/2" (13mm) SUPPLY
TUBE (NOT SUPPLIED)
90 DEGREE ST. EL.
(2 REQ’D) NOT SUPPLIED
STOP VALVES, FITTINGS
& 3/8" (10mm) SUPPLY LINES
(NOT SUPPLIED)
LK723
THERMOSTATIC
MIXING VALVE
TEMP.
ADJUST
LK726
LAMINAR
FLOW CONTROL
2.0 GPM
BATTERY POWERED
MODELS: CONTROL
BOX WITH LK729
BATTERY HOLDER
& BATTERIES
INSIDE
