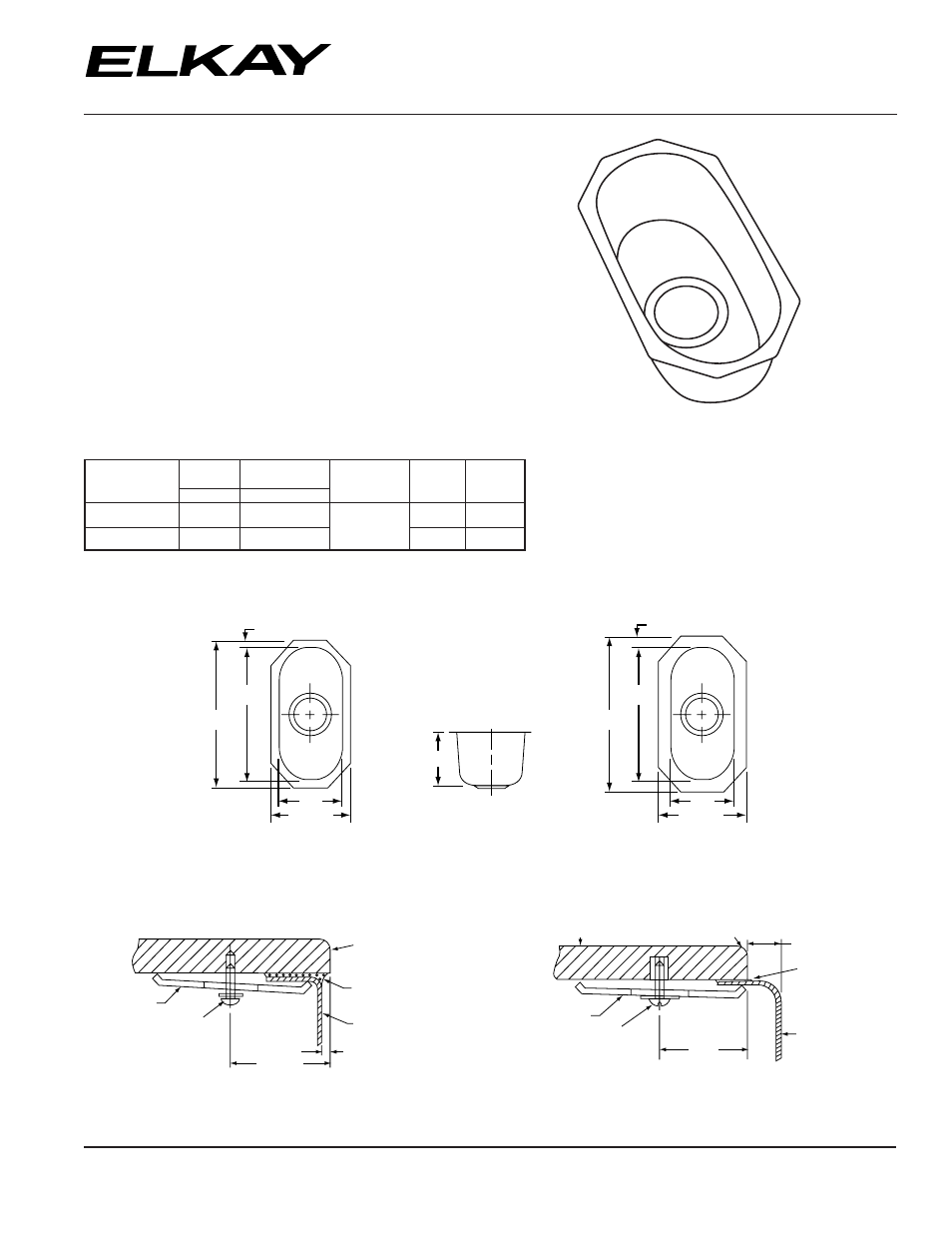

Model ELU714 Illustrated
3/4" TYP
(8 SIDES)
15-5/8"
14-1/8"
5-9/16"
8-1/2"
7"
Model ELUH714 Illustrated
1-1/4" TYP
(8 SIDES)
16-5/8"
14-1/8"
9-1/2"
7"
GENERAL
Highest quality sink seamlessly drawn of #18 gauge, type 304
(18-8) nickel bearing stainless steel. Underside of sink is fully
protected by heavy duty Sound Guard
™
undercoating.
Designed to accept waste disposer.
DESIGN FEATURES
Bowl Depth: 5-9/16".
Finish: Exposed surfaces are hand blended to a lustrous high-
lighted satin finish. ELUH714 has highlighted inside top bowl
radius.
Underside: Fully protected by heavy duty Sound Guard
™
undercoating to prevent condensation and deaden sound.
OTHER
Drain Opening: 3-1/2".
Note: All Elkay custom design undermount sinks are designed
to affix easily to the underside of any solid surface countertop.
Installation: See illustrated profile below.
These sinks comply with ANSI Standard A112.19.3M.
Elkay
2222 Camden Court
Oak Brook, IL 60523
Printed in U.S.A.
©2004 Elkay
(Rev. 1/04)
1-120D
www.elkayusa.com
Model ELU714
In keeping with our policy of continuing product improvement, Elkay reserves the right to change
product specifications without notice.
This specification describes an Elkay product with design, quality and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not
overlooked.
ALL DIMENSIONS IN INCHES, TO CONVERT TO MILLIMETERS MULTIPLY BY 25.4.
SINK DIMENSIONS (INCHES)*
*Length is left to right. Width is front to back.
**Template and countertop mounting clips are packed with every sink.
Minimum
Ship.
Model
Overall
Inside Bowl
Cutout in
Cabinet
Wt.
Number
L
W
L
W
D
Countertop
Size
Lbs.
ELU714
8
1
/
2
15
5
/
8
7
14
1
/
8
5
9
/
16
See
15
5
ELUH714
9
1
/
2
16
5
/
8
7
14
1
/
8
5
9
/
16
Template**
15
5
(ELUH Single bowl)
COUNTERTOP
CONTOUR EDGE
TO CUSTOMER DESIRE
MOUNTING
BRACKET
SILICONE
CAULK
(NOT
FURNISHED)
SINK
1-1/8"
FASTENER
(NOT FURNISHED)
Installation Profile of ELU and ELUH Single Bowl Models
The template provided with each ELU/ELUH sink provides the only type of installation recommended by Elkay.
1/8" Countertop
Overhang
(ELU Single bowl)
MOUNTING
BRACKET
COUNTERTOP
SILICONE CAULK
(NOT FURNISHED)
SINK
1/8 (APPROX.)
OVERHANG
1-3/8"+1/4"
FASTENER
(NOT FURNISHED)
_
1/2"
Lustertone
®
Undermount Single Bowl Sink
Models ELU714 and ELUH714
®
S P E C I F I C AT I O N S
