17

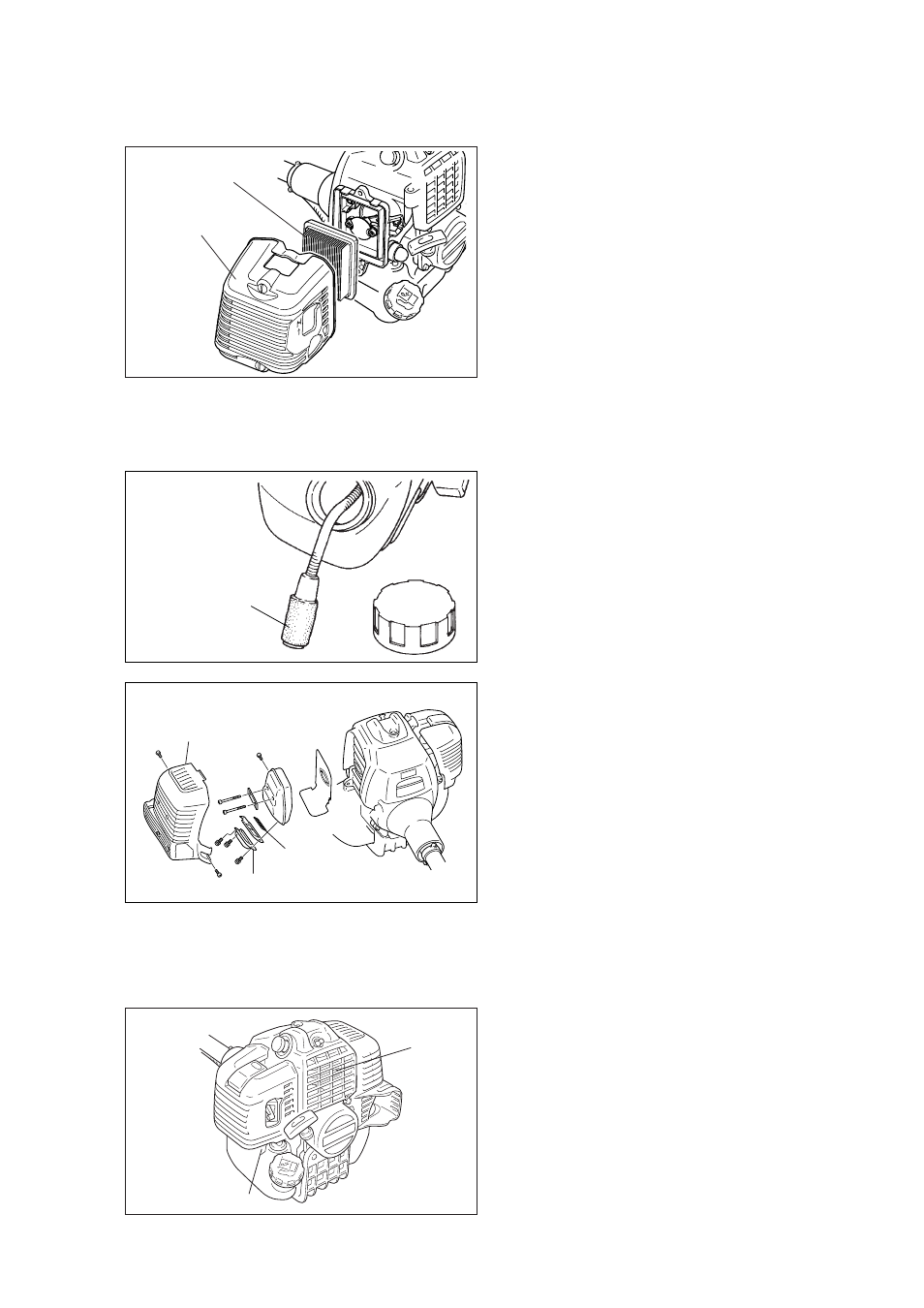

MAINTENANCE AND CARE

- ALWAYS KEEP THE UNIT CLEAN -

FUEL STRAINER

•Check periodically.

- Do not allow dust to enter into fuel tank.
- Clogged strainer will cause difficulty in starting

engine or abnormalities in engine performances.

- Pick up fuel strainer through fuel inlet port with a

piece of steel wire or the like.

- When strainer is dirty, wash it in suitable

cleaning fluid or replace it.

Fuel strainer

Muffler cover

Lid

Screen

AIR FILTER

•Clean before using the unit.

- Close choke. Loosen screws and remove air

cleaner cover.

- Remove air filter (air filter is located inside air

cleaner cover).

- Brush dirt from filter or clean with compressed

air. Do not wash the air filter.

- Reinstall air filter with cover, after installing air

filter to cover.

- Tighten screws.

CYLINDER FINS

•Check periodically.

•Clogged fins will result in poor engine cooling.

•Remove dirt and dust from between fins to let

cooling air pass easily.

Cylinder fins

Air intake

MUFFLER AND EXHAUST PORT (SAM)

•Clean as necessary.

•Carbon deposits in cylinder exhaust port and

muffler will reduce engine output.
- Muffler can be removed by taking off muffler

cover.

- Remove spark arrestor screen from muffler.
- Clean carbon deposits from screen and muffler

components.

- Be careful not to scratch cylinder or piston when

cleaning cylinder exhaust port.
Use non-ferrous plastic or wood.

- Replace screen if it is cracked, plugged or has

holes burned through.

- Inspect gaskets, replace if damaged.
- Assemble components in reverse order.

Air filter

Air cleaner cover
