Description of the Appliance
• The cooker hood is designed to extract
unpleasant odours from the kitchen, it will
not extract steam.
• The hood is supplied as an extractor unit and
can also be used with a filtering function by
fitting one charcoal filter.
• You will need an original charcoal filter for this
function (Available from your local Service
Force Centre).
Only for EFC 980 X/GB - PNC 942 120 786
Attention! This model is already fitted with
charcoal filter.
Extractor version
• In this version fumes are extracted to the
outside via a hose connected to the coupling
ring.
Attention: The hose is not supplied and must
be purchased separately.
• In order to obtain the best performance the hose
should have a diameter equal to the outlet hole.
Recirculation Version
• The air is filtered through a charcoal filter and
returned to the kitchen through the front grid.
• You will need an original charcoal filter for this
function (Available from your local Service
Force Centre).
• Fix the deflector using 2 screws Ø 3x9 mm.
• Optionally, the position of the chimney
elements can be changed.
When using the hood in the filter version the
chimney must be fixed at the top, with the air
outlet grill at the side.

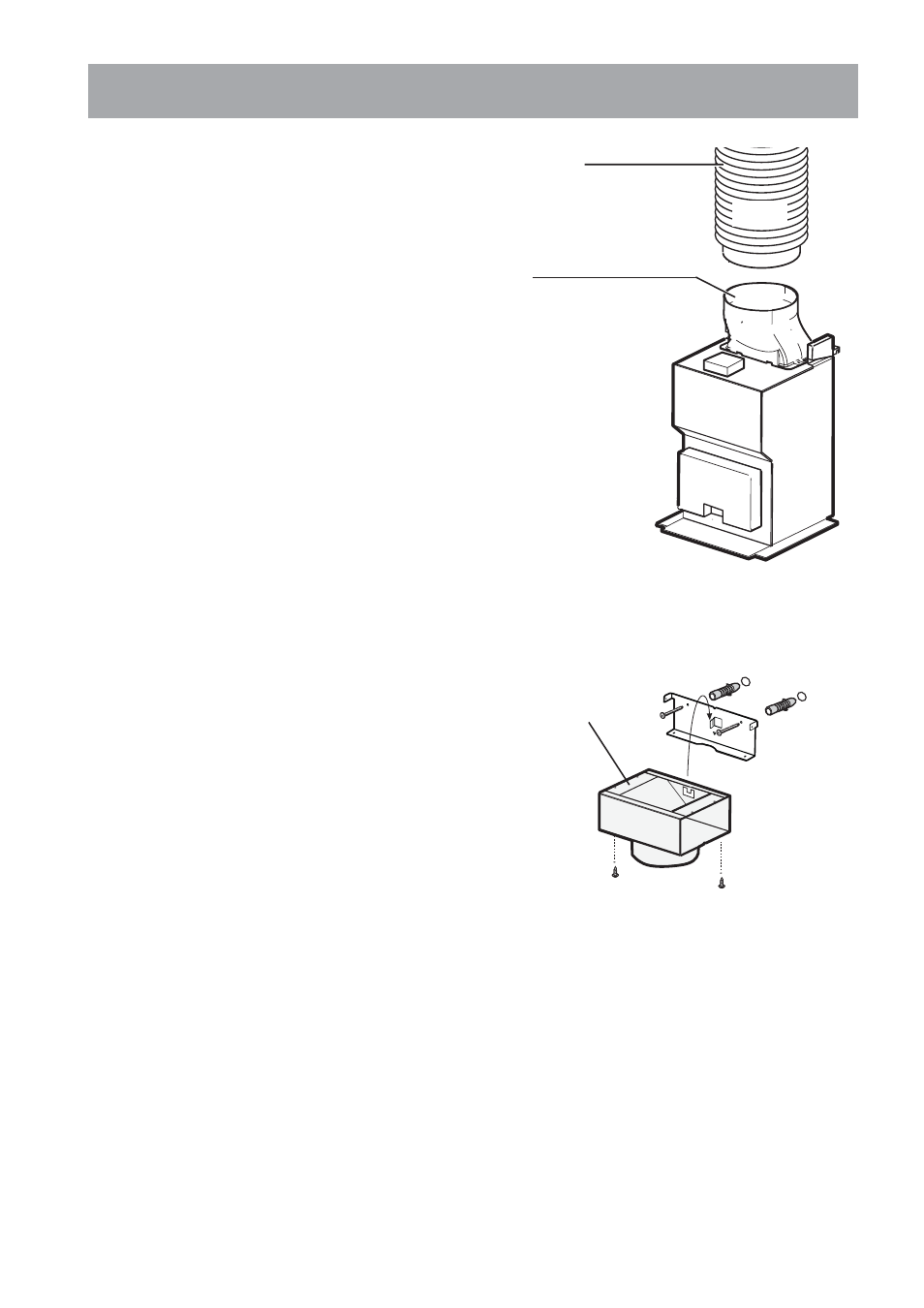

Fig. 1 - Extractor version
Fig. 2 - Recirculation version
To the outside
Coupling ring
Deflector
Hose
