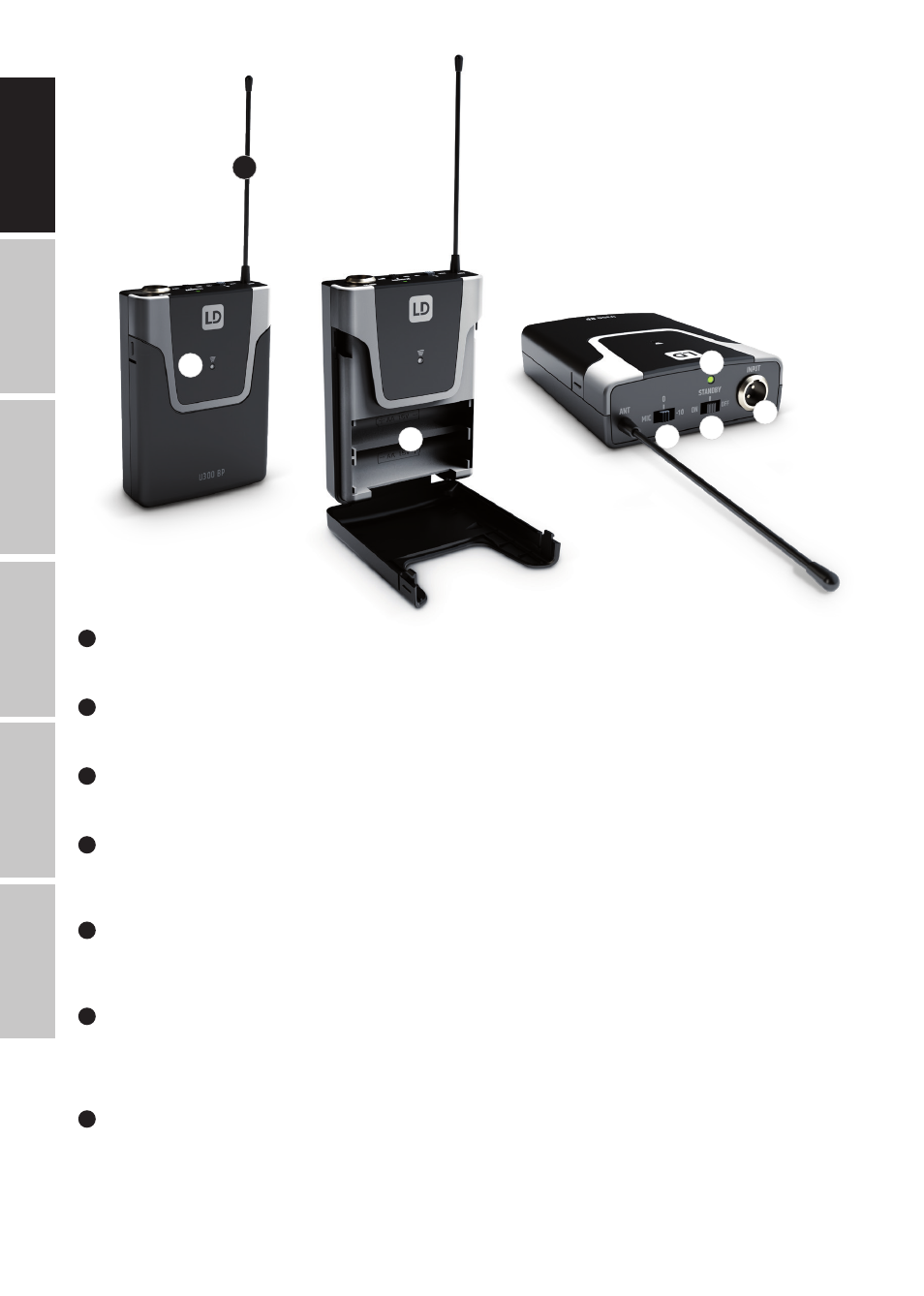

POCKET TRANSMITTER
21 ANTENNA
Pocket transmitter antenna. For optimum reception, do not cover or kink.
22 IR INTERFACE
Infra-red interface for synchronising the radio channel from receiver and transmitter.
23 INPUT
3-pin mini XLR socket to connect a headset, Lavalier or instrument microphone and guitar cable.
24 ON / STANDBY / OFF
Switch to activate or deactivate the pocket transmitter (ON = transmitter is switched on, OFF = transmitter is switched off). In the STANDBY position,
the transmitter is in operation but the audio signal is muted.
25 STATUS LED
If the charge status of the batteries is sufficient, the LED lights up green when the pocket transmitter is switched on. If the LED lights up red, the charge
status is weak. In this case, replace the batteries (2 x AA/LR6 type, alkaline). During the synchronisation process, the LED flashes green and amber.
26 MIC / 0dB / -10dB
For setting the input sensitivity. Adjust the sensitivity so that an active signal (speech, vocals, guitar...) causes the amber-coloured level-LED on the
receiver to light up. If the red PEAK LED lights up or flashes, reduce the sensitivity on the 3-position switch MIC/0dB/-10dB to the next lower value to
prevent otherwise unwanted distortion. (Examples: Headset = MIC, guitar with passive pickups = 0dB, guitar with active pickups = -10dB).
27 BATTERY COMPARTMENT
To replace the batteries, open the battery compartment of the pocket transmitter by simultaneously pressing both markers on the sides of the battery
cover and opening it forwards. Remove the used batteries and replace with new batteries (AA/LR6, alkaline), following the diagram in the battery
compartment. Replace the battery compartment cover on the housing and click it into place. If the transmitter is not used for a long period, remove the
batteries to avoid damage to the transmitter from leaking batteries.
