OUTER TRIM INSTRUCTIONS
1. Remove upper louver, grasp louver at left and right ends; lift and pull forward.
2. Open bottom louver, then lift to remove.
3. Install the right frame and left frame to the fireplace. Align clearance holes in frame with screw holes in fireplace. At-
tach right frame and left frame to fireplace. Use two (2) 8 x 1/2” Phillips screws for each frame.
4. Insert top frame into interior, top of fireplace. Align clearance holes in top frame with screw holes in fireplace. Attach
top frame to fireplace. Use two (2) 8 x 1/2” Phillips screws for top frame.
5. Replace bottom louver.
6. Replace top louver.

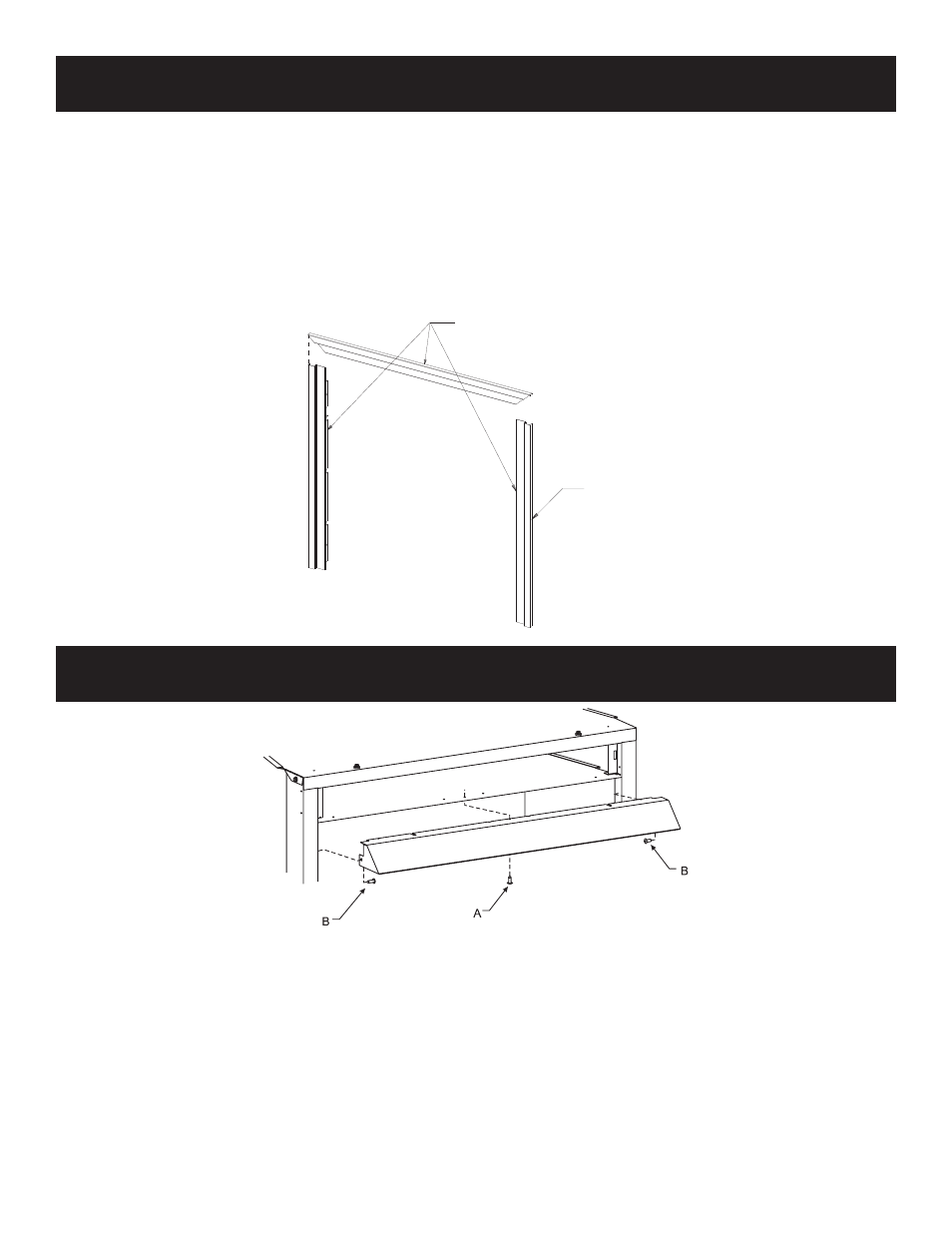

3-PIECE FRAME KIT
SIDE TRIM
Figure 21
HOOD INSTRUCTIONS
1. Remove upper louver, grasp louver at left and right ends; lift and pull forward.
2. Remove screen frame assembly.
3. Outer trim must be installed before installing hood.
4. Place the top hood flange on top of the firebox, then install one screw (A) at the center on vent free fireplace through the
firebox top from below.
5. Install one (1) screw (B) at each end of the hood as shown.
6. Replace upper louver.
7. Replace screen frame assembly.
Caution: A hood must be installed prior to operation of appliance.
Figure 22
