There are two (2) main pieces to
each corner bracket (see Figure
17). When installing the corner
pieces into the trim the “B FACE”
sides must face each other and
the screw heads are to face out.
With the bracket in place and the
top and a side trim snug together
use a flat head screwdriver to turn
the two (2) screws in the bracket
in to tighten it into the trim.
7. Place the unit part way into the fireplace. Connect the
fireplace insert’s flexible gas line to the household gas
supply, using locally approved methods. Place the electric
cable so it can be connected to the power supply.
8. As you push the unit into its final position in the fireplace,
reinstall the vent collar plate to the stove by sliding it
along the draft hood and secure with the screw. Adjust
the leveling legs to ensure the unit is level.
9. If a trim set has been purchased for your surround panel,
it must be installed before installing the surround panel
onto the unit.
a) Attach one side trim to the top trim using a corner
bracket (see Figure 16) to secure pieces together.

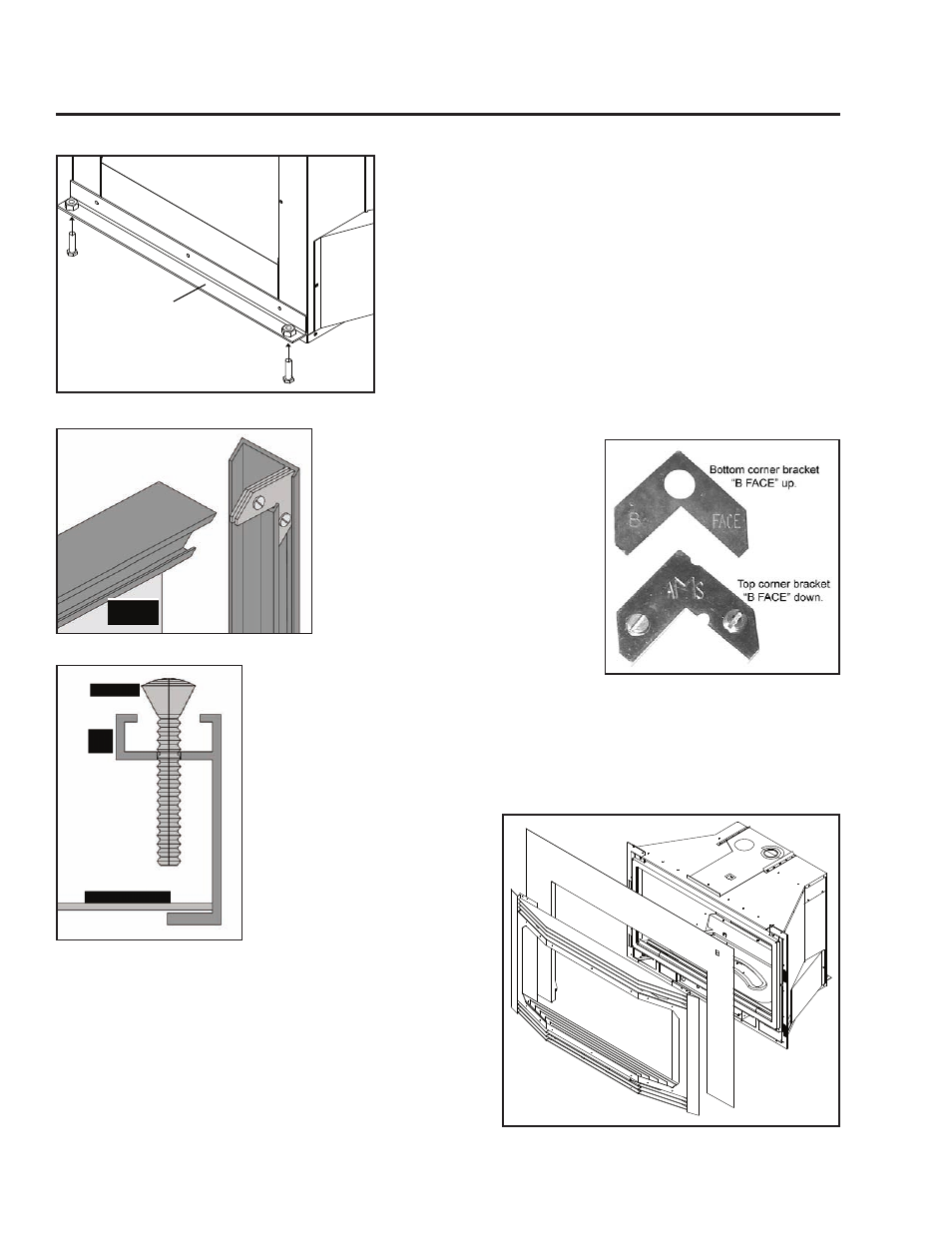

Figure 15: Installation of Leveling Legs.
Leveling
legs bracket
Initial Installation
Figure 19: Surround Panel installation.
b) Slide the two (2) attached trim pieces
onto the surround panel.
c) Attach the other side trim piece to the top
14
Figure 18: Screw to hold
the trim against the
surround.
Figure 16: Corner brackets for trim.
Figure 17: Two pieces of corner
bracket.
trim using the same method used in Step a.
d) Place the second side of the trim on the surround panel in the same
manner use on the first side and secure in the same manner.
e) On the side trims there are holes 2” (50 mm) from either end. Using a
Phillips screwdriver to place
a #8 screw 11⁄4” long in
each hole and tighten (refer
to Figure 18). This will keep
the trim tight against the
surround.
NOTE: The notch at the
bottom of the left trim is so
the power cord can be run
to the outside of the panel.
10. Connect the wires from the unit to the ON/OFF/
THERMOSTAT switch and the FAN CONTROLLER (see
I
NITIAL
I
NSTALLATION
- F
AN
C
ONTROLLER
& B
URNER
S
WITCH
I NSTALLATION and I NITIAL I NSTALLATION - E LECTRICAL
R
EQUIREMENTS
).
