Page 13

Making the electrical connections

Electrical Shock Hazard
Warning: Turn off power at the service panel before
wiring this unit.
120 V

120 V

120 VAC, 15 or 20 Amp cir

AC, 15 or 20 Amp cir

AC, 15 or 20 Amp circuit r

cuit r

cuit requir

equir

equired.

ed.

ELECTRICAL GROUNDING INSTRUCTIONS

ELECTRICAL GROUNDING INSTRUCTIONS
THIS APPLIANCE IS FITTED WITH AN ELECTRICAL
JUNCTION BOX WITH 3 WIRES, ONE OF WHICH
(GREEN/YELLOW) SERVES TO GROUND THE
APPLIANCE. TO PROTECT YOU AGAINST
ELECTRIC SHOCK, THE GREEN AND YELLOW
WIRE MUST BE CONNECTED TO THE
GROUNDING WIRE IN YOUR
HOME ELECTRICAL SYSTEM, AND IT MUST
UNDER NO CIRCUMSTANCES BE CUT OR REMO-
VED.
Failur

Failur

Failure to do so can r

e to do so can r

e to do so can result in death or electrical

esult in death or electrical

shock.

shock.

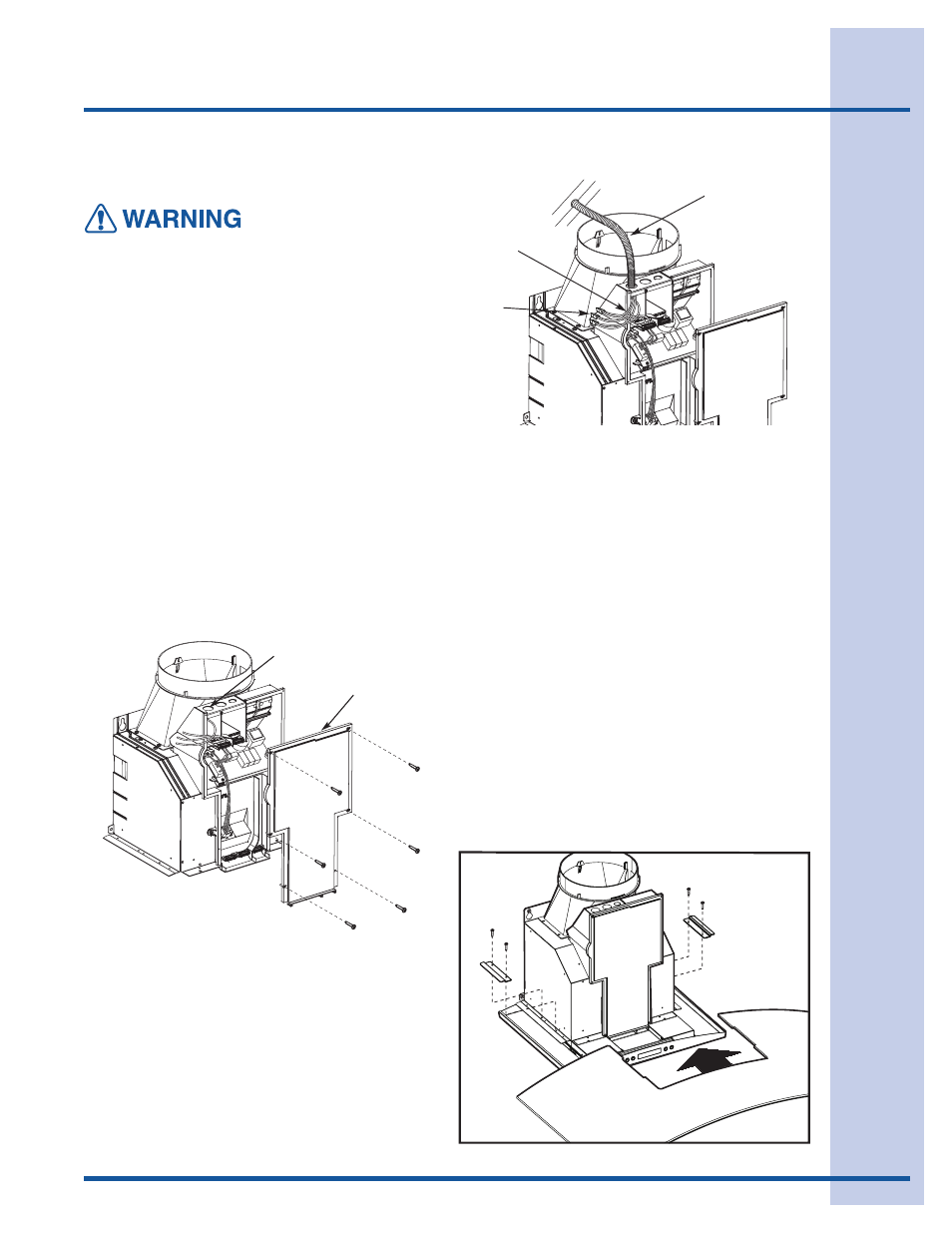

• Remove junction box cover and knockout on the

top left side.

Knockout

Junction box
cover

• If not already done, install 1/2” conduit connector

in j-box.

Metal electrical

conduit

U.L. listed
wire nut

House
wiring

• Run black (live), white (neutral), and green (earth)

wires (#14 AWG) according to the National
Electrical Code or CSA Standards and local
codes and ordinances in 1/2” conduit from power
supply to j-box.

• Connect black, white, and green wires from

power supply to black, white, and green/yellow
wires in j-box respectively.

• These connections should be done always

making reference to the electrical diagram found
inside the hood.

• Close j-box cover and reapply screws.

Mounting the glass canopy

• With the hood mounted on the wall slide the glass

canopy over the glass supports.

• Insert the glass brackets.
• Insert two screws into the bracket holes, drive the

screws by hand.

Installing the hood
