IPL T S Series Interfaces • Introduction
1-3

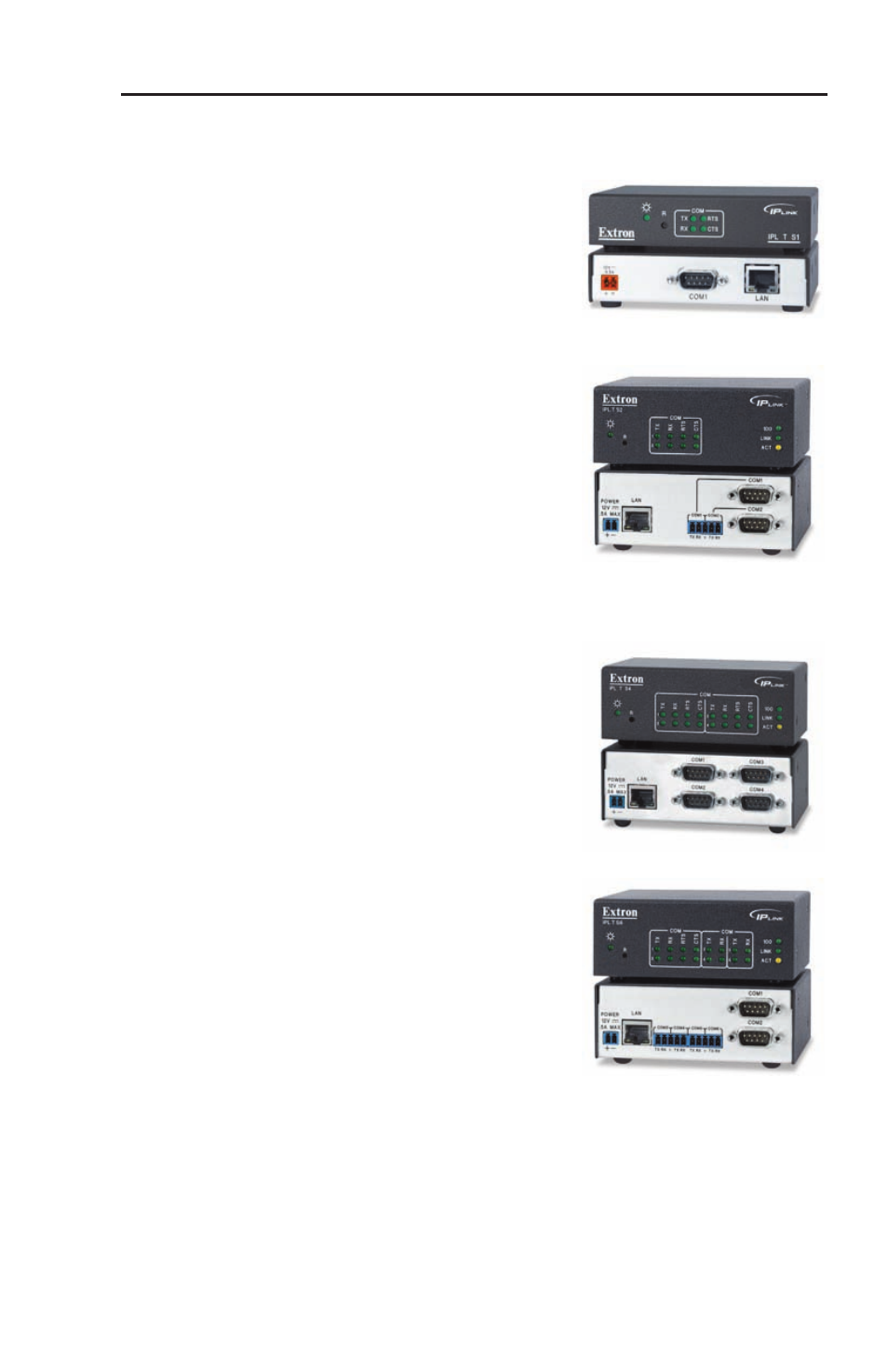

IPL T S1
12 VDC power supply
•
RJ-45 Ethernet receptacle
•
9-pin D RS-232 serial port
•
IPL T S2
12 VDC power supply
•
RJ-45 Ethernet receptacle
•
Two 9-pin D RS-232, RS-422,
•
or RS-485 serial ports
- or -
Two 3.5 mm captive screw
•
RS-232, RS-422, or RS-485
serial ports (common to the
two 9-pin D serial ports).
IPL T S4
12 VDC power supply
•
RJ-45 Ethernet receptacle
•
Four 9-pin D RS-232, RS-422,
•
or RS-485 serial ports
IPL T S6
12 VDC power supply
•
RJ-45 Ethernet receptacle
•
Two 9-pin D RS-232, RS-422,
•
or RS-485 serial ports
Four 3.5 mm captive screw
•
RS-232, RS-422, or RS-485
serial ports (independent of
the two 9-pin D serial ports)
The IPL T Series products include:
