IPL T S Series Interfaces • Hardware Setup
Hardware Setup, cont’d
2-4

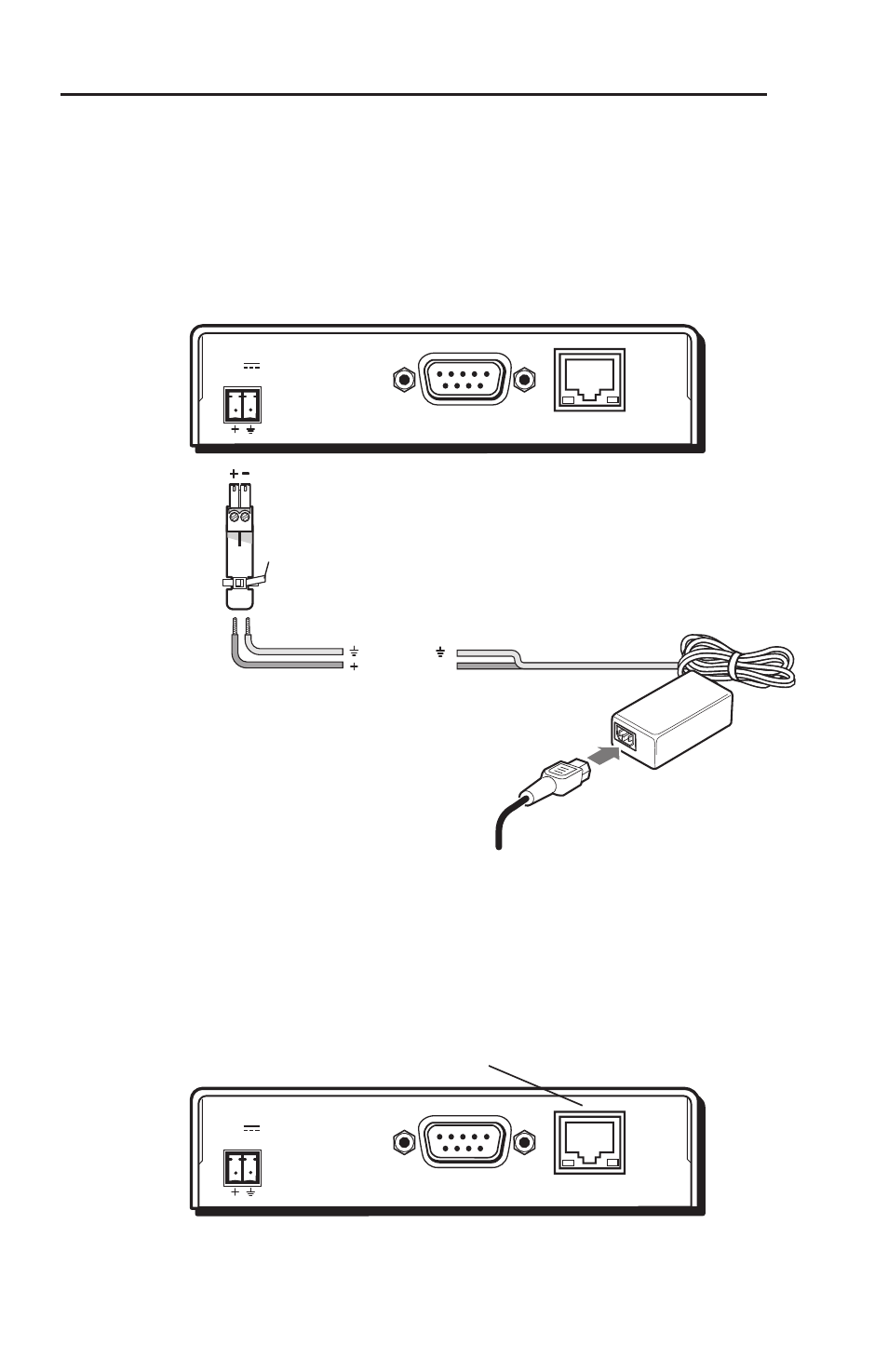

Power Connection
To connect the power supply:
1
. Insert the 2-pole captive screw connector into the power
supply receptacle on the rear panel of the interface.
2 . Connect the female end of the power supply AC cord into
the power supply and connect the male plug end into a
110 VAC receptacle.
Ground
+12 VDC
External
Power Supply
(12 VDC, 1 A )
Orange Captive Screw
Connector
Tie Wrap
12V
0.5 A
LAN
COM1
00-05-A6-00-00-01
Local Area Network (LAN) Connection
Connect a patch (straight-through) Ethernet cable to the LAN
receptacle on the rear panel if you are connecting the interface
to a switch, hub, or router on your A/V network.
Connect a crossover Ethernet cable to the LAN receptacle on the
rear panel if you are connecting the interface directly to a PC.
12V
0.5 A
LAN
COM1
00-05-A6-00-00-01
LAN Receptacle
